⚙️ Product Description
Brake chambers are used on truck and trailer air brake systems, located at each wheel, where compressed air is converted into a mechanical force used to apply the brakes and stop the vehicle.
They are also designed to apply the brakes automatically in the event that there is a loss of system air pressure. This happens because the air pressure holding back the heavy parking/emergency spring dissipates allowing the spring to extend the pushrod which in turn applies the brake.
There are designs to cover Cam Brake and also Disc Brake applications, along with different sizes and strokes. The most common strokes are standard and long stroke.

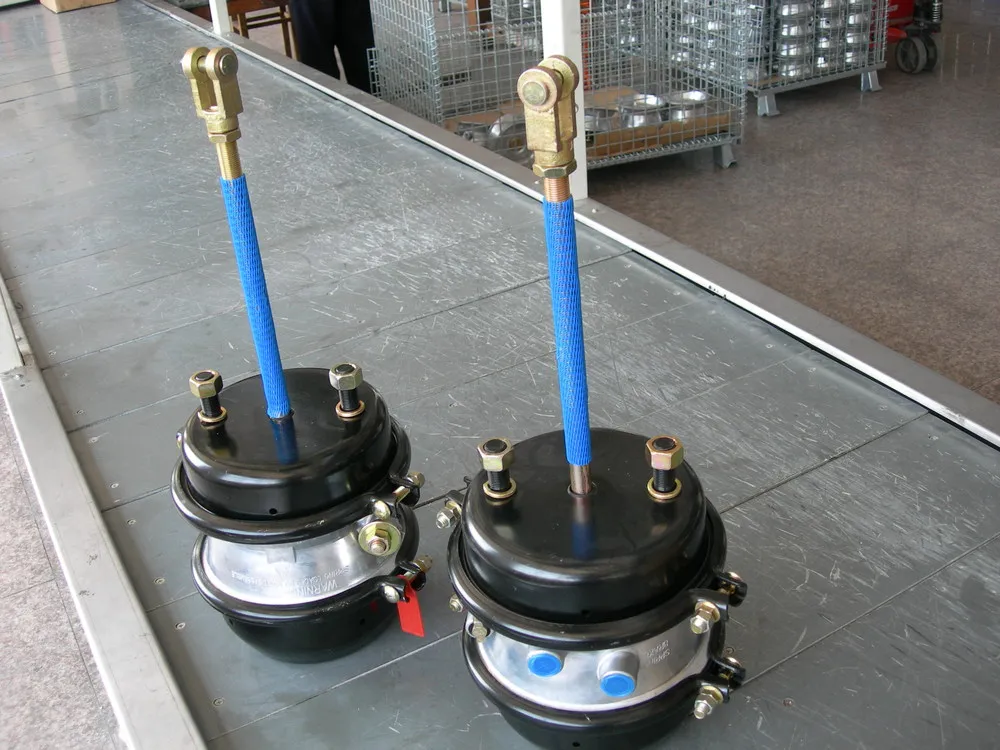

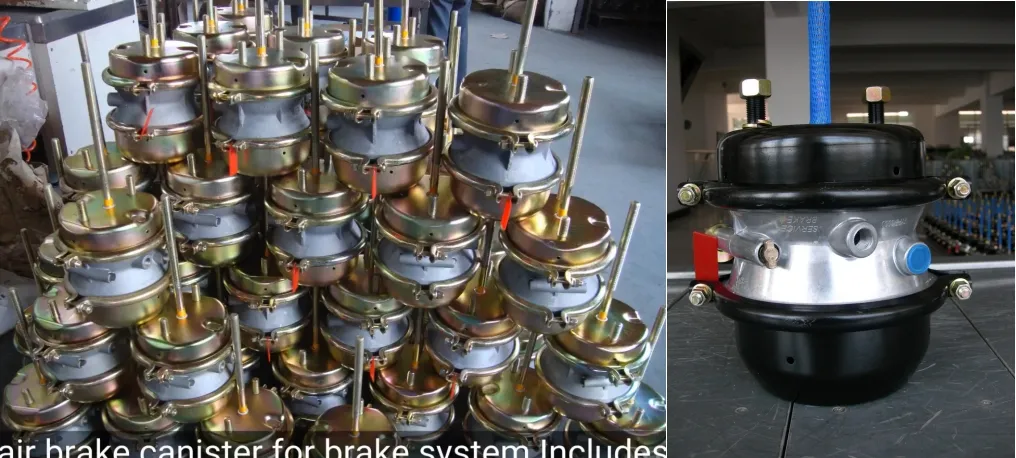

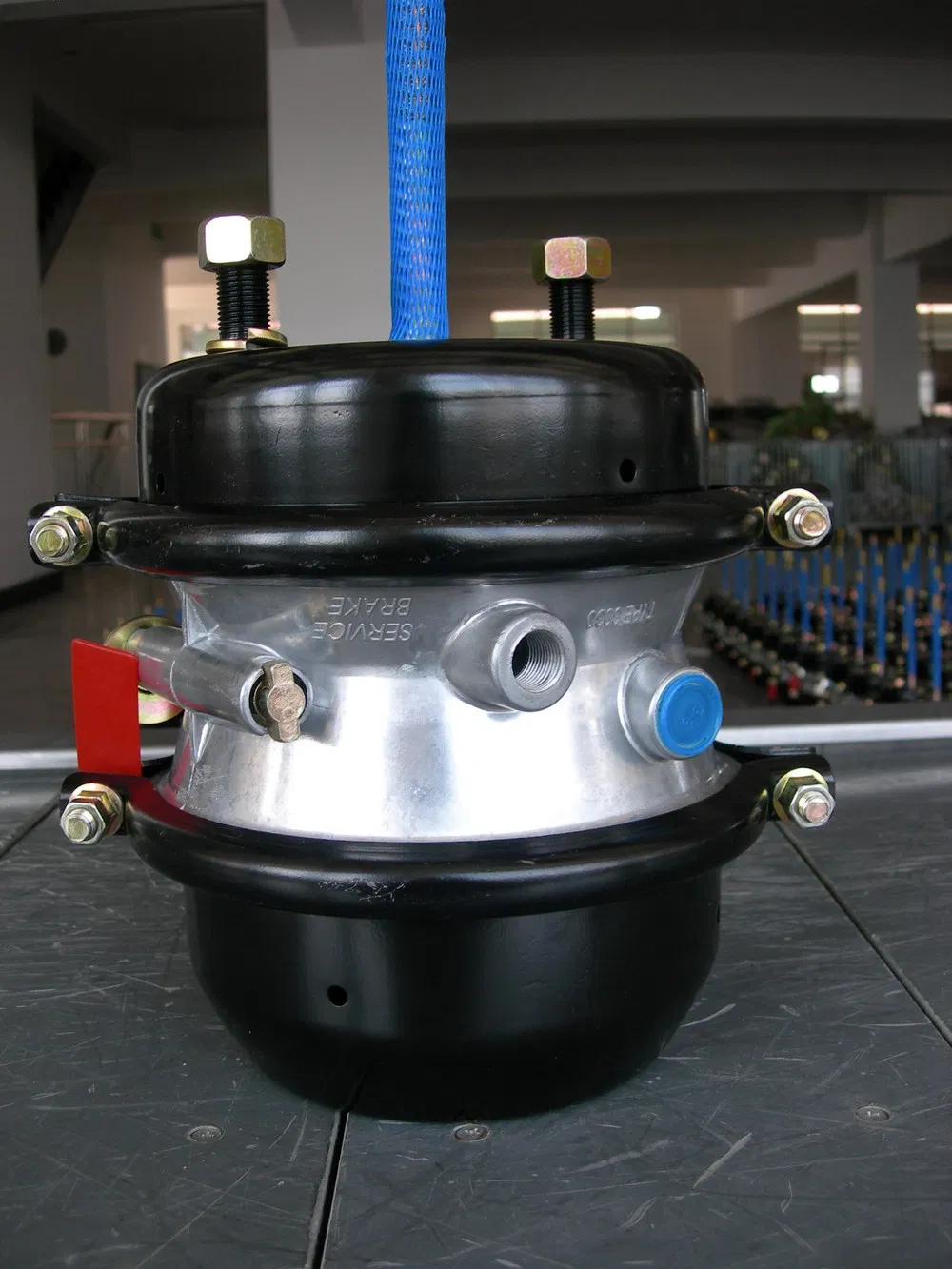

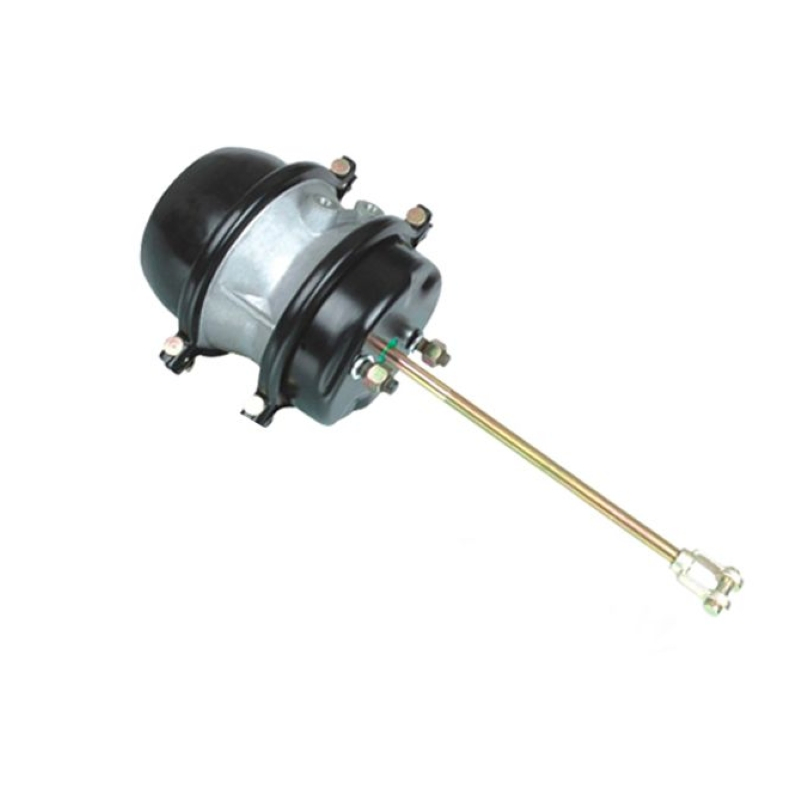

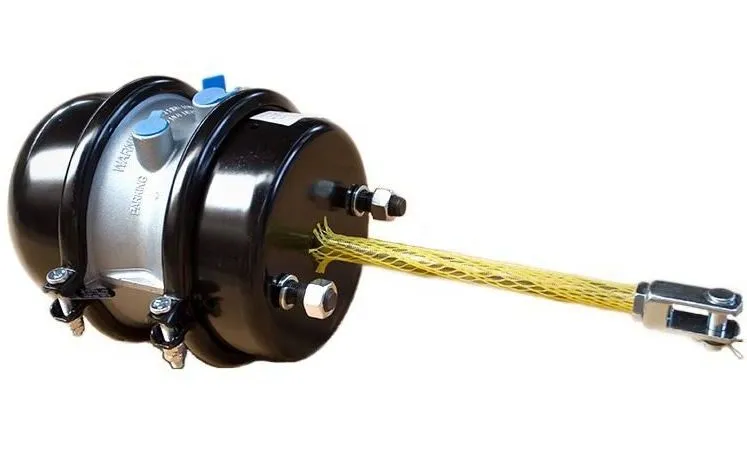

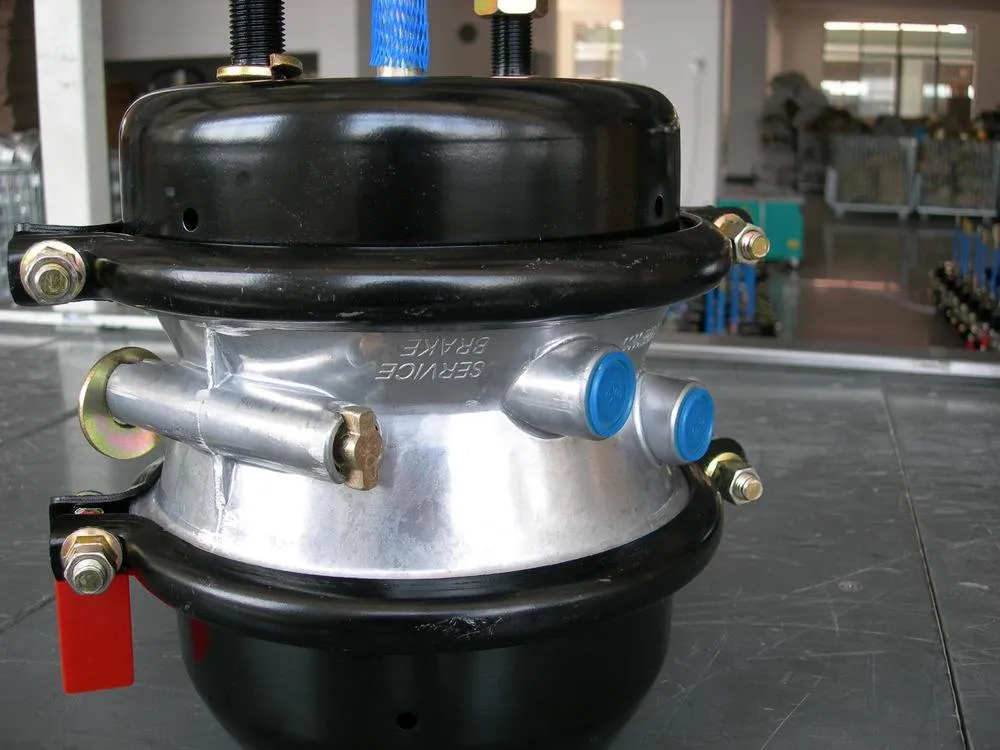

Air Spring Brake Chamber T3030 T2424 for Truck Trailers
Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle. There are two kinds of air brake chambers - service and spring brake chambers.
✅ Key Features
🔹

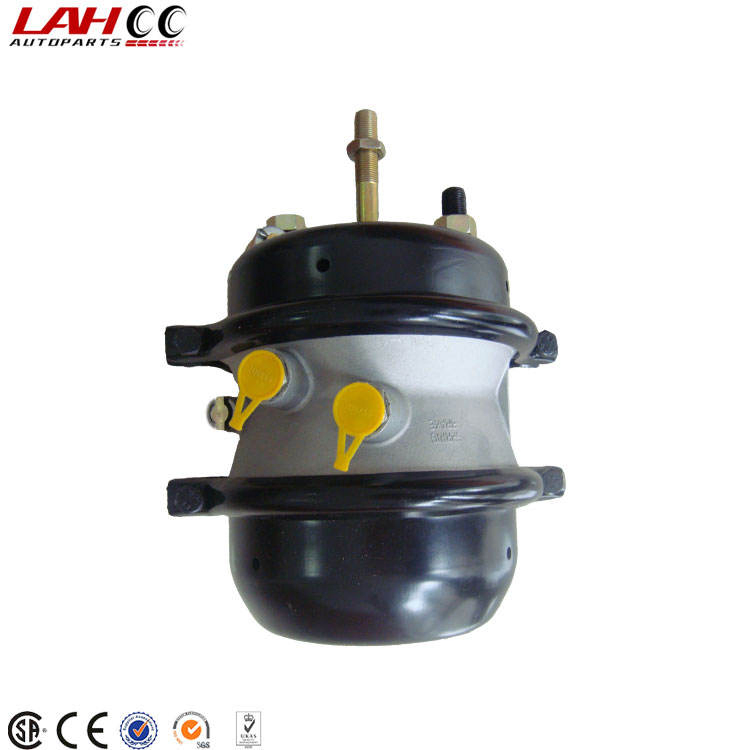

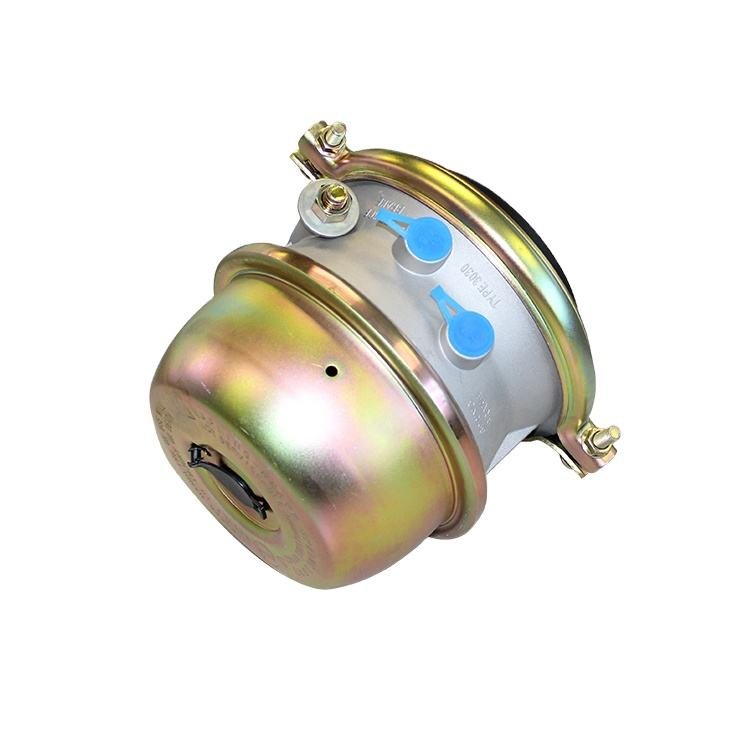

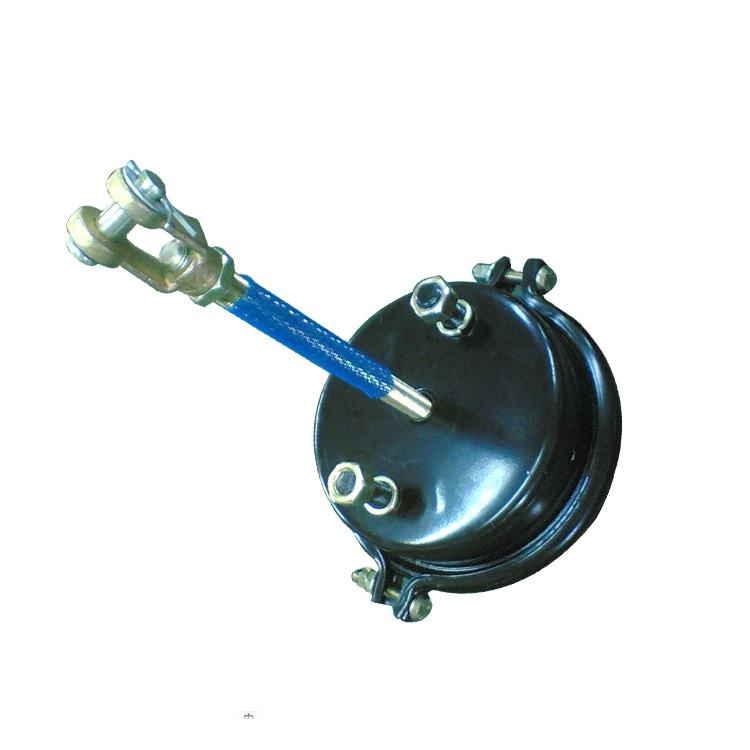

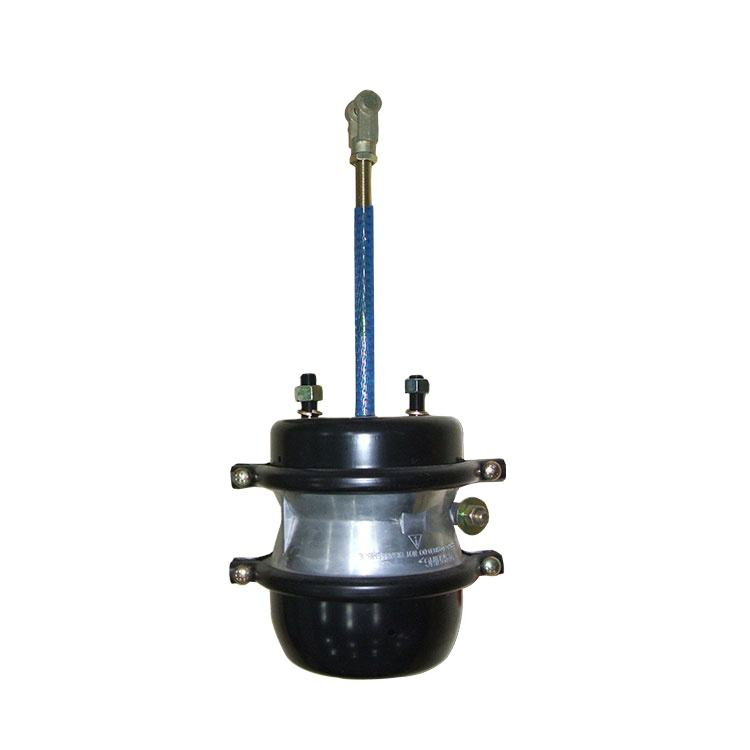

Name: T3030 Double Air Brake Chambers
🔹
Operating Temp: -40 °C ~ +80 °C
🔹
Stroke Range: 0-76MM
🔹
Service Life: ≥1,000,000 times
🔹
Parking Life: ≥200,000 times
🔹
Standard: SAE J1469-95 (USA)
❓ Frequently Asked Questions
1. What is the primary function of these air brake chambers?
They convert compressed air into mechanical force used to apply the brakes and stop the vehicle, and automatically apply brakes in case of air pressure loss.
2. What materials are used in the construction of the T3030 model?
The brake chamber is constructed using high-quality steel and aluminum alloy, with rubber components for sealing.
3. What is the expected cycle life of this product?
The service chamber is rated for at least 1,000,000 cycles, while the parking chamber is rated for at least 200,000 cycles.
4. Can this brake chamber withstand extreme weather conditions?
Yes, it is designed to operate effectively in an ambient temperature range from -40 °C up to +80 °C.
5. Does this product comply with international safety standards?
Yes, it follows the leading SAE J1469-95 and SAE-J2318 standards set by the Society of Automobile Engineers USA.
6. Which truck models is the LHBC T3030 compatible with?
It is primarily designed for Freightliner Heavy Duty trucks, but it is considered a universal application for many heavy-duty truck air brake systems.
