| Model NO. | BR-110 |
| Position | Central Isolation Barrier |
| Material | Steel |
| Function | Separation, Obstruction, Warning, Beautiful |
| Upright Post | 100*100 |
| Post Fixation | Embedded Type |
| Degree of Distortion | Flexible Barrier |
| Power Supply | 110V/220V |
| Working Temp | -45 to +75 |
| Boom Size | 45*100mm/ 45*86mm |
| MCBF | ≥5,000,000 Times |
| Running Time | 3s/6s |
| Net Weight | 50kg |
| Boom Length | 1-6m |
| HS Code | 860800900 |

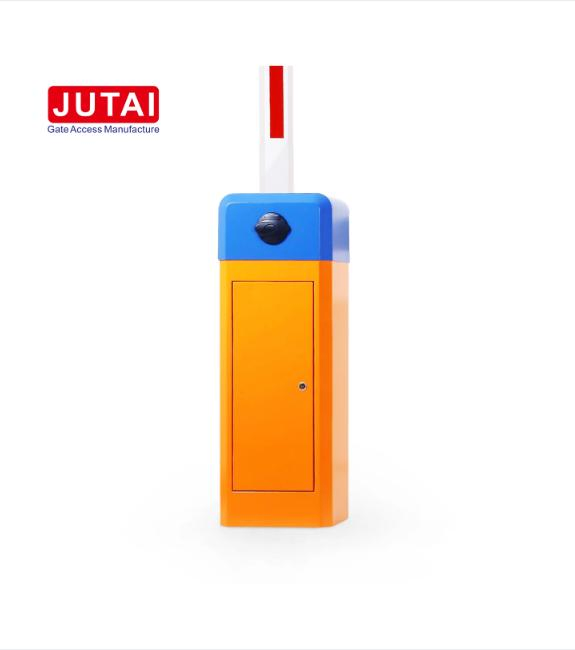

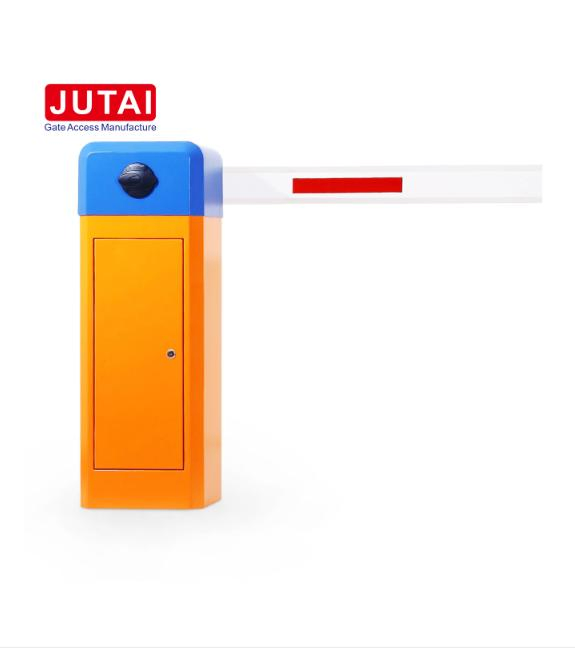

This barrier gate features a stable motor and controller with a high-quality cover design. Compatible with loop detectors, photocells, and long-range readers, it is an ideal solution for comprehensive parking system projects.
| Material Specification | Cold roll plate, galvanized plate or stainless steel varnish baking |
| Arm Types | Straight arm (1-6m), Fence arm (2/3 fence 1-6m), Folding arm (90/180 degree) |
| Applications | Parking lots, toll gates, goods yards, railway crossings, commercial premises, apartment blocks |

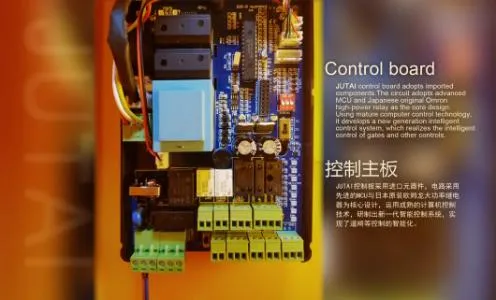

Intelligent Control Board: Adopts imported components and advanced MCU. The design incorporates high-power relays to realize intelligent control of gates and auxiliary systems.

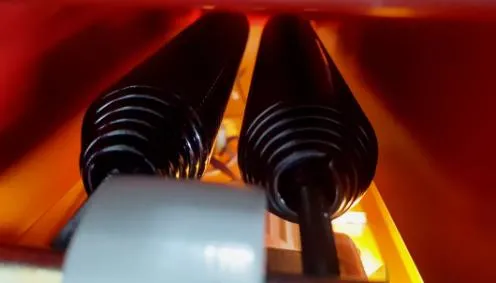

Double Spring Balance: Utilizes tension and relaxation of a double spring system to achieve stable rising and falling movements. The springs offer long service life and high corrosion resistance.

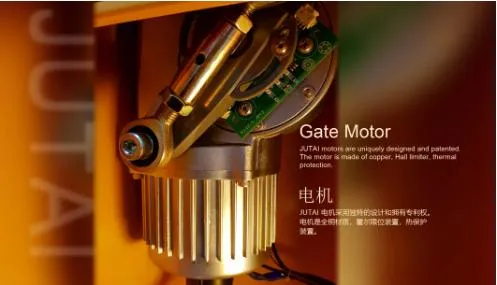

High-Efficiency Motor: Uniquely designed and patented motor made of copper. Includes a Hall limiter and thermal protection for enhanced safety and durability.
Anti-Collision Mechanism: Equipped with an anti-collision arm. Upon impact, the brakes bounce back quickly to protect both the vehicle and the motor from damage.

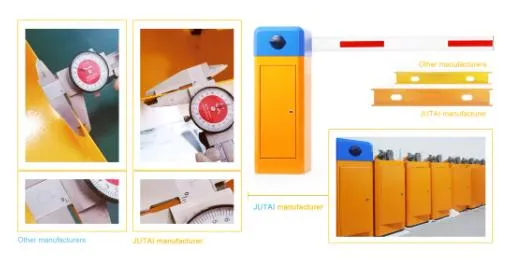

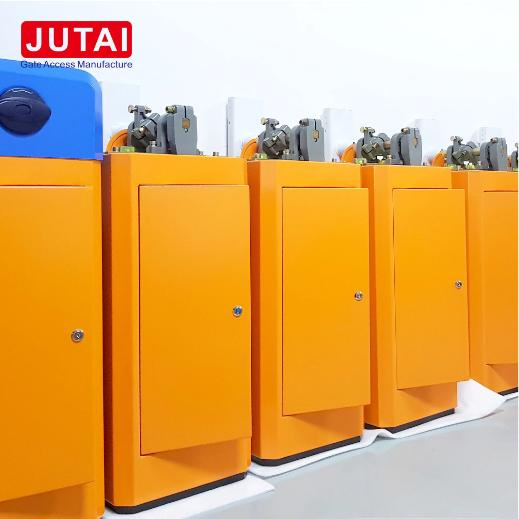

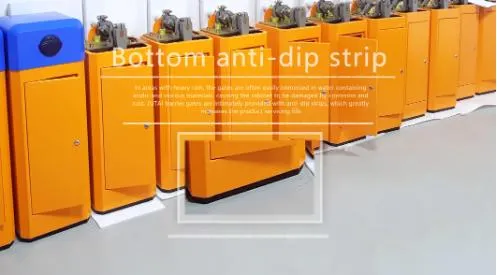

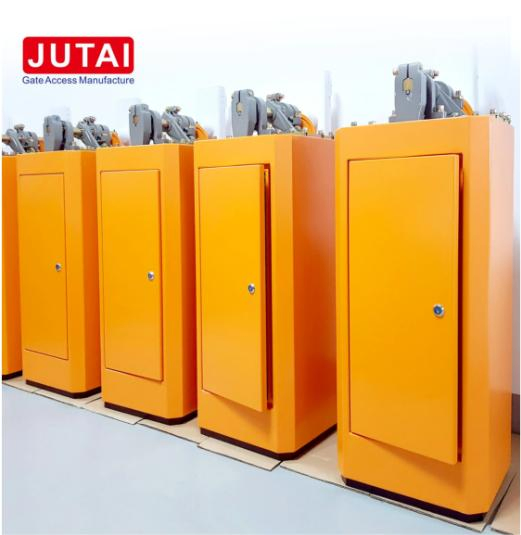

Durable Cabinet: Constructed with 2.0mm thick sheet metal. The waterproof structure undergoes phosphating, high-temperature baking, and car-top coating to resist corrosion, rust, and UV radiation.
