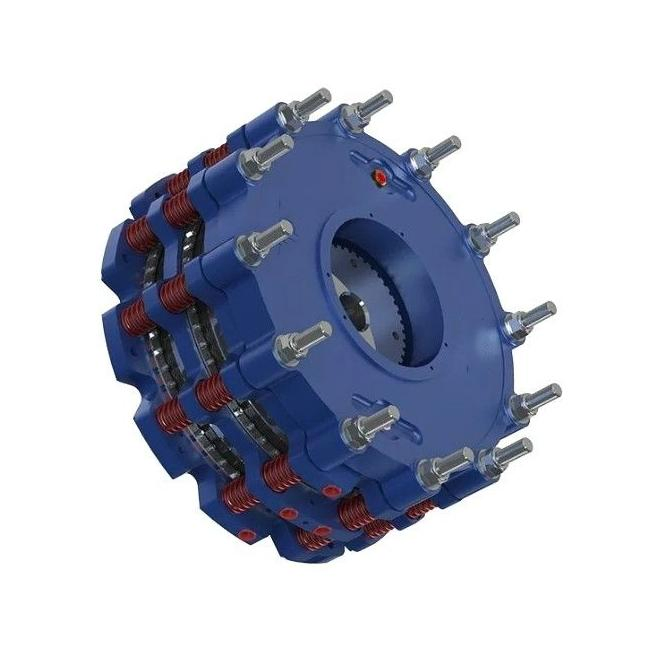

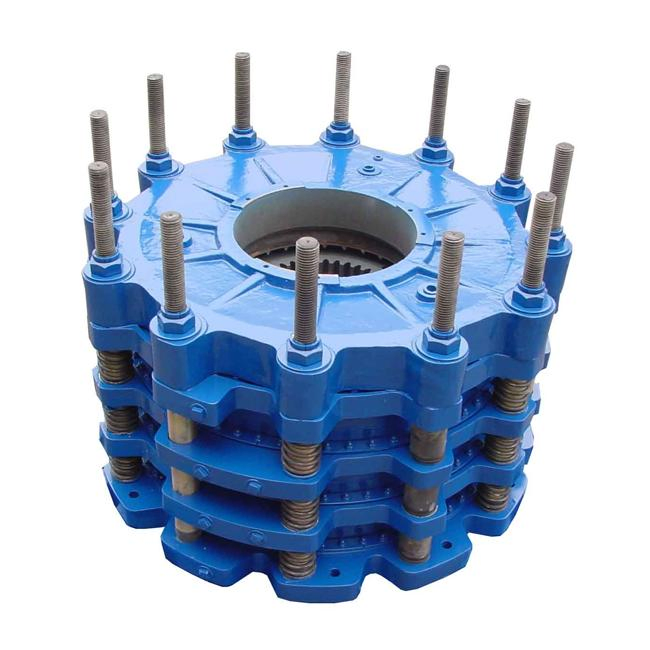

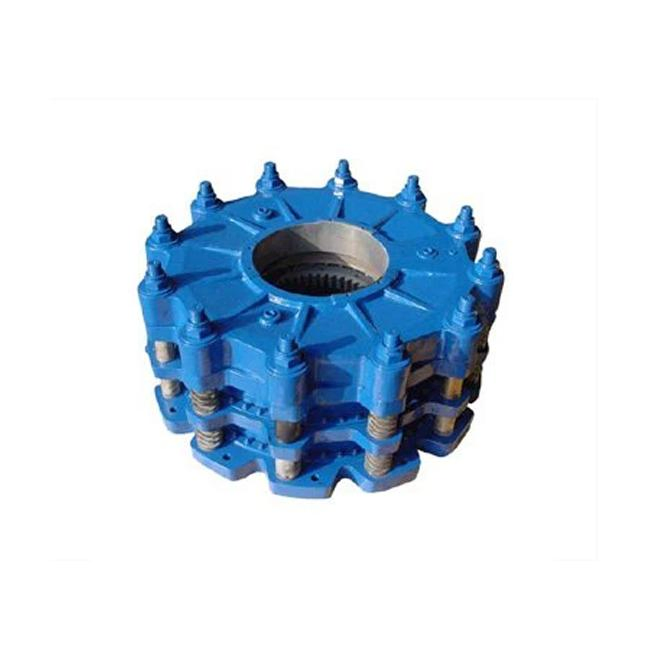

Water Cooled Brake Wpt224 for Drilling Rig Brake System
Water Cooled Brake Wpt224 for Drilling Rig Brake System
Water Cooled Brake Wpt224 for Drilling Rig Brake System
Water Cooled Brake Wpt224 for Drilling Rig Brake System
Water Cooled Brake Wpt224 for Drilling Rig Brake System
1 / 5
Water Cooled Brake Wpt224 for Drilling Rig Brake System
Water Cooled Brake Wpt224 for Drilling Rig Brake System
Water Cooled Brake Wpt224 for Drilling Rig Brake System
Water Cooled Brake Wpt224 for Drilling Rig Brake System
Water Cooled Brake Wpt224 for Drilling Rig Brake System

Water Cooled Brake Wpt224 for Drilling Rig Brake System

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Information

Model NO.
WPT224
Certification
ISO 9001:2000
Power Source
Hydraulic
Operation Pressure
Atmospheric Pressure
Applicable Medium
Mud, Crude Oil
Structure
Plug-In
Material
Cast Steel
Application
Drilling Rig, Workover Rig
Type
Water-Cooled Brake
Product Name
Compaction Disk
Unit Type
24wcb2
HS Code
84314310

🔍 Product Description

Water Cooled Brake WPT224 For Drilling Rig Brake System

Water Cooled Brake Wpt224

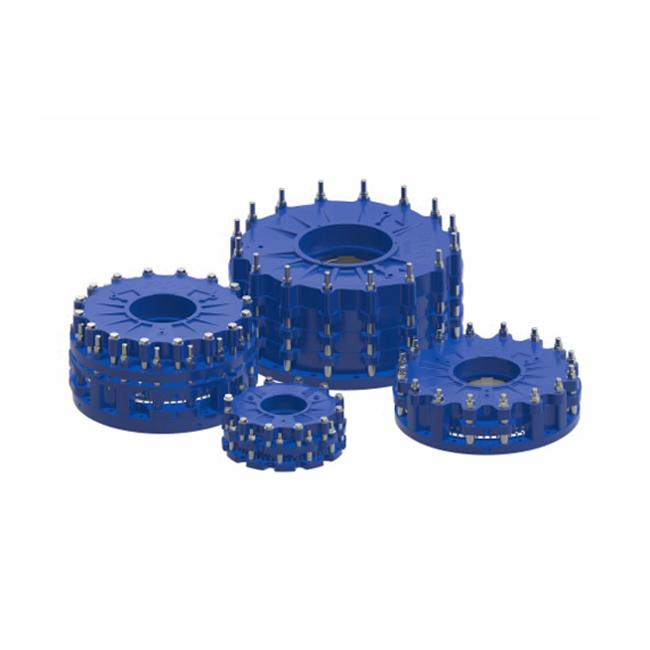

WPT Water-Cooled Brake Series Models:

WPT124, WPT224, WPT324, WPT424, WPT236, WPT336, WPT436

⚙
Main Components: Cylinder, dynamic discs, stator discs, coil core, intermediate discs, reset spring.

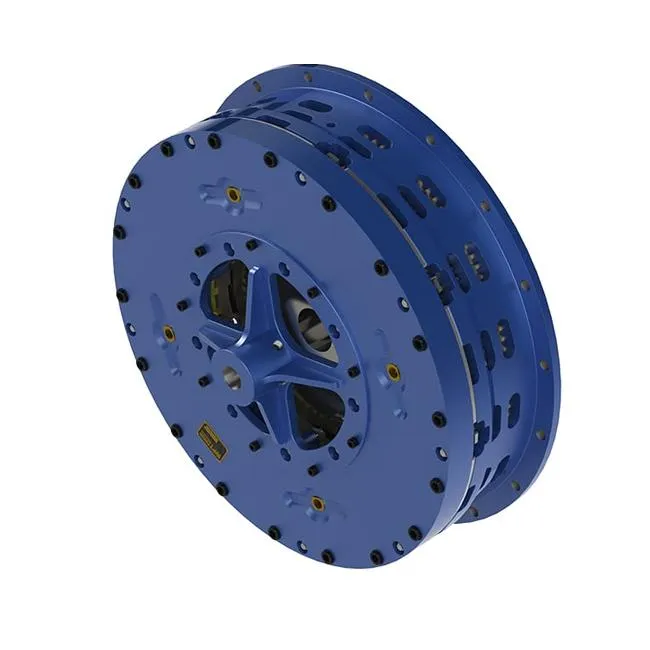

WPT224 Components

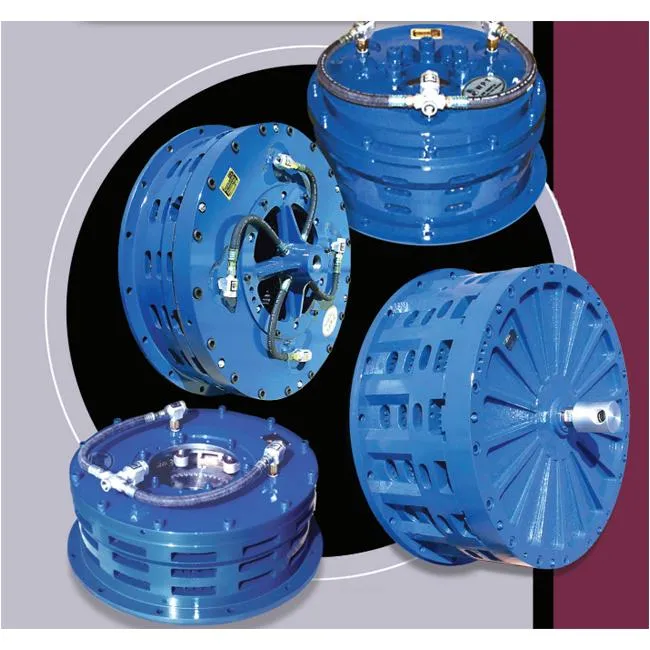

WPT224 Details

📊 Technical Specifications

Product Name P/N Unit Type Product Name P/N Unit Type
Compaction disk assembly W24-11-309 24WCB2 Compaction disk assembly W36-11-314 36WCB2
Compaction disk W24-11-306 24WCB2 Compaction disk W36-11-302 36WCB2
Flat washer X20-27-001 24WCB2 Flat washer X20-27-010 36WCB2
Nut X20-20-030 24WCB2 Nut X20-20-043 36WCB2
Airbag fixing disc W24-02-304 24WCB2 Airbag fixing disc W36-02-301 36WCB2
Gasbag W25-20-900 24WCB2 Gasbag W36-20-901 36WCB2

❓ Frequently Asked Questions

➤ What are the primary applications for the WPT224 water-cooled brake?
The WPT224 is specifically designed for drilling rigs and workover rigs brake systems, providing reliable tension control and braking power.
➤ What materials are used in the construction of this brake system?
The main structure is made of high-quality cast steel, ensuring durability and performance under harsh oilfield conditions.
➤ Can this brake system handle corrosive mediums?
Yes, it is designed to be compatible with applicable mediums such as mud and crude oil commonly found in drilling environments.
➤ What other models are available in the WPT series?
The series includes various sizes such as WPT124, WPT224, WPT324, WPT424, and the larger WPT236, WPT336, and WPT436 units.
➤ What are the key components of a WPT water-cooled brake assembly?
A standard assembly consists of a cylinder, dynamic and stator discs, coil core, intermediate discs, and a reset spring.
➤ Is the product certified for international standards?
Yes, the product adheres to ISO 9001:2000 quality management system certifications.
