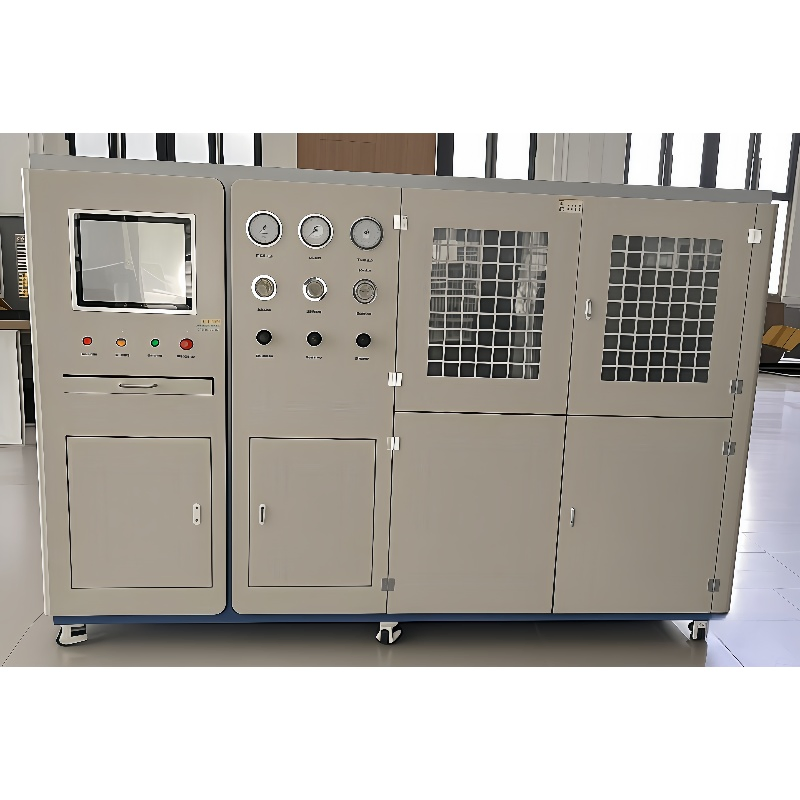

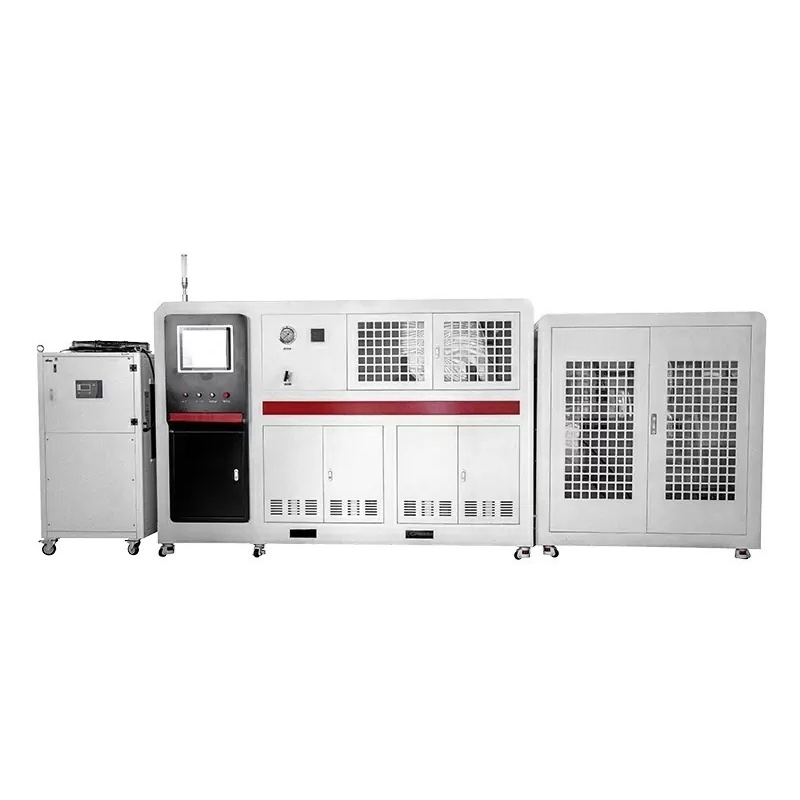

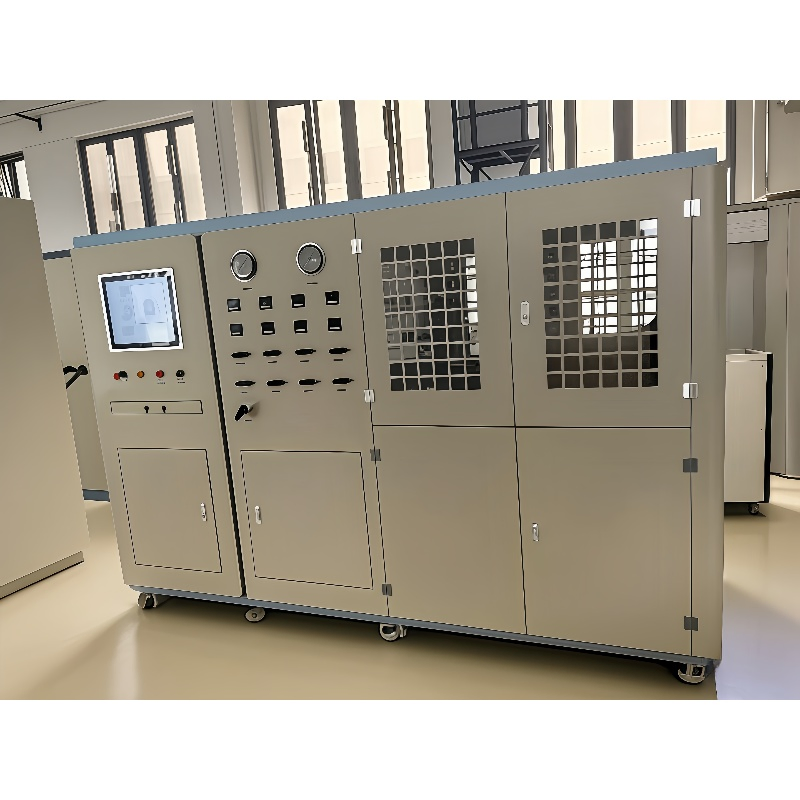

Advanced Hydraulic Hose Testing System with Smart Control Various Factories and Laboratories Conduct Fatigue, Pressure Resistance and Airtightness Tests

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
UT-029
Max Diameter
220cm
Mass Scope
<900kg
Type
Pulse Testing Machines
Max Capacity
100MPa
Accuracy Grade
0.1MPa
Loading Method
Static Pressure Test
Display
Digital
Control
Manual / PLC / Computer
Pulse Frequency
0.5-1.25Hz
Test Medium
Hydraulic or Brake Fluid
Cycle Time
> 10 Million Times
Product Description

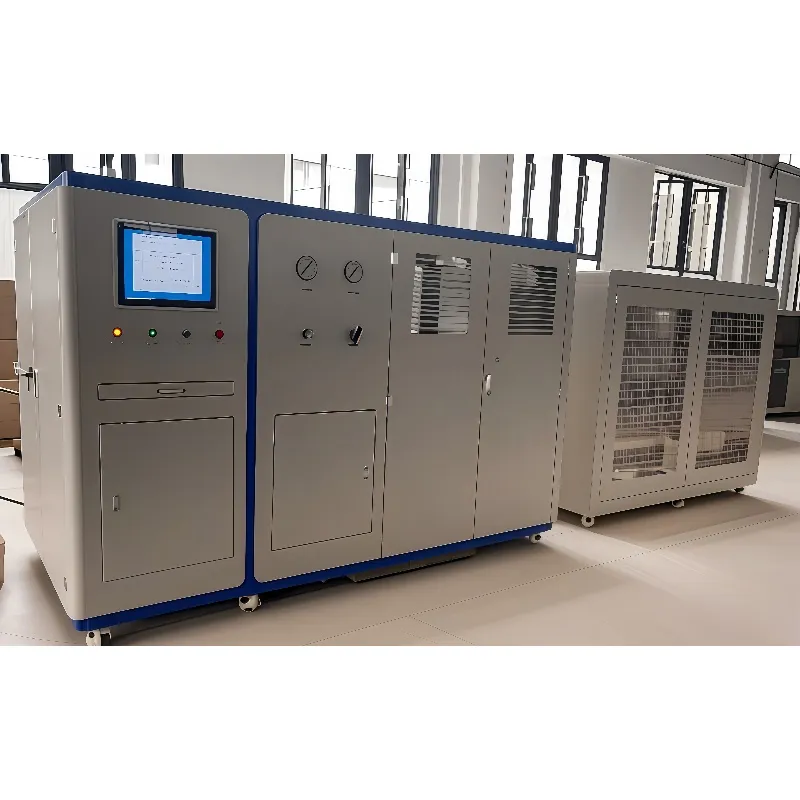

Hydraulic Hose Testing System
High Performance
Air Leakage Testing Bench

The air leak test machine is primarily engineered for leakage testing across various components including hoses, metal pipes, automobile pipelines, condensers, heat exchangers, and hydraulic hoses for construction machinery. It is also suitable for steel tubes, pressure vessels, and a wide array of valves such as stop valves, plug valves, check valves, and regulating valves used in petroleum machinery.

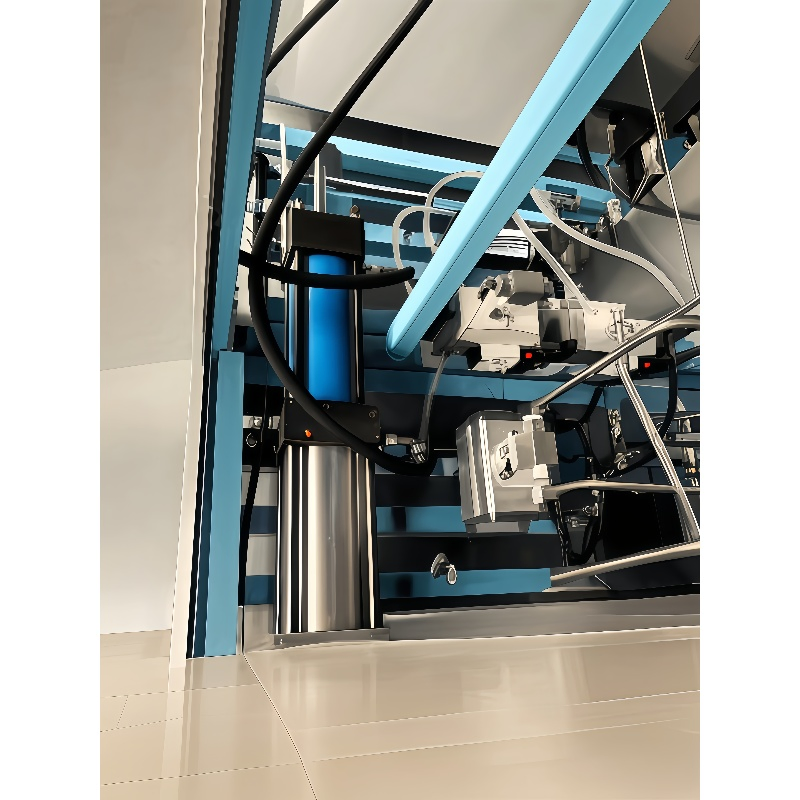

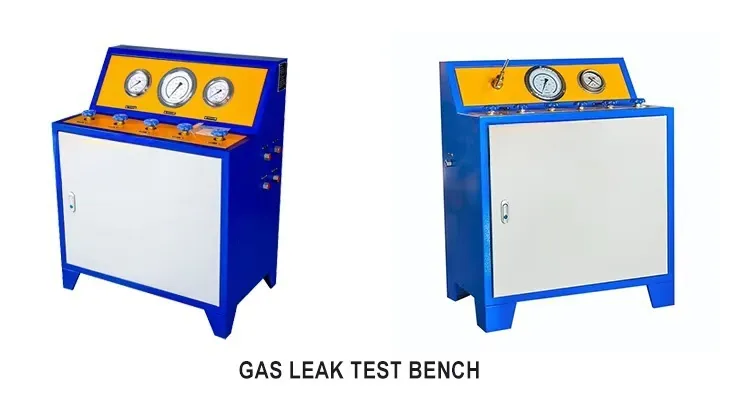

Testing System Detail
Testing System Detail
Technical Specifications
  • Maximum test pressure: 100MPa
  • Test frequency: 10-100 seconds/time
  • Motor power: 22KW (380V Power Supply)
  • Control mode: LabVIEW software + proportional valve control
  • Fatigue frequency: 0-0.5HZ
  • Medium temperature: Ambient to 150 ºC

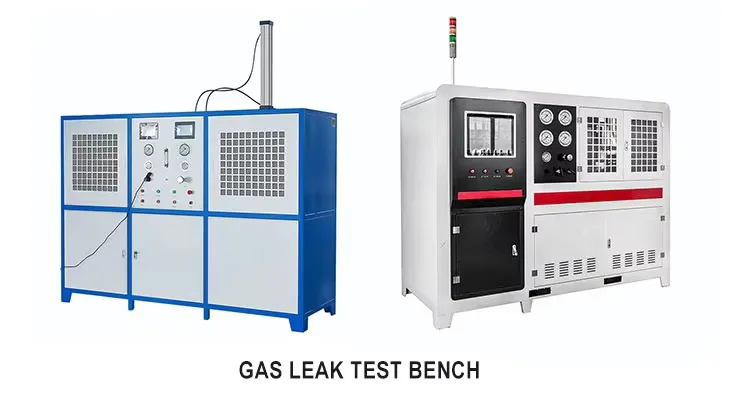

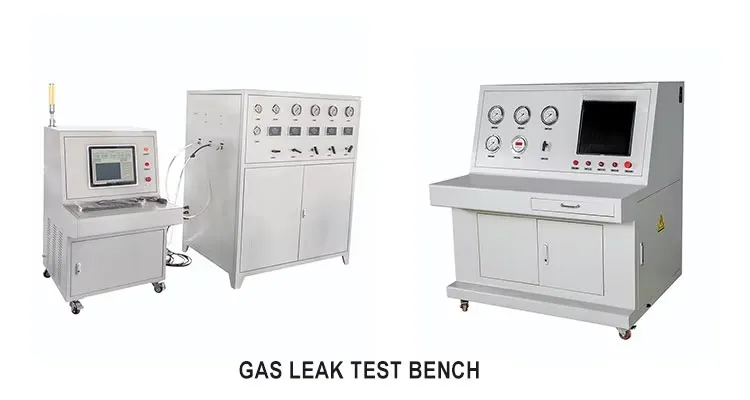

Equipment View
Equipment View
Reference Standards:

GB/T7939, GB/T5568, GB/T3683, GB/T12722, GB/T14904, GB/T20461, GB16897, ISO6803, ISO6802, ISO11425, ISO6772, SAE J1405, SAE J343.

Packaging & Shipping
Packaging

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. We utilize marine plywood boxes to ensure maximum protection during international transit.

Company Profile
Factory View

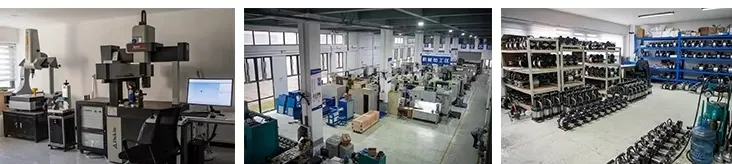

Production Line

Established in 2024, our company specializes in the R&D and manufacturing of cutting-edge fluid control systems. We are committed to integrating global technologies with localized services, focusing on core domains: gas/liquid pressurization systems, fluid transfer pumps, and customized engineering solutions.

Our flagship products, including gas filling equipment, cylinder testing systems, and intelligent production line inspection devices, are widely applied in aerospace, automotive manufacturing, and petrochemical energy sectors. With ISO-certified systems and a unique "lifetime warranty + 30% energy-saving commitment," we deliver one-stop services to clients across over 20 countries through a 24/7 multilingual technical team.

Frequently Asked Questions
Why choose us?
We offer a firm guarantee on product quality and provide customers with the best service. Our products are selected by renowned enterprises. We provide on-site after-sales service, including installation and commissioning, plus 24/7 online support.
Are you a factory?
Yes, our factory is a professional manufacturer of precision-engineered fluid and gas handling equipment. We have focused on high-pressure gas and liquid storage and control technologies for many years.
Are troubleshooting and maintenance guides available?
Yes, we offer comprehensive troubleshooting, maintenance, and repair guides, including diagnostic charts and videos to help customers quickly solve common issues.
How to realize one-to-one customization?
Simply send us your design drawings or inform us of the functions you wish to achieve. Our engineers will evaluate the practicability and design a solution accordingly.
How long is the warranty and lead time?
We provide a 13-month warranty. For standard products, the delivery lead time is typically within 7-10 days.
