Product Description

Basic Information

Model NO.

MS-758RSC

Waterproof Grade

IP69

Certification

CE, E-MARK

Warranty

18 Months

Material

Plastic

Transport Package

Carton

Origin

China

HS Code

8512209000

Production Capacity

50000PCS/Year

Product Description

MS-758RSC Backup System Overview

Display with three video frequency input automatic/manual switcher, quad available
Front panel controls with on-screen menu
Excellent high resolution picture quality even in low illuminated condition

Technical Information:

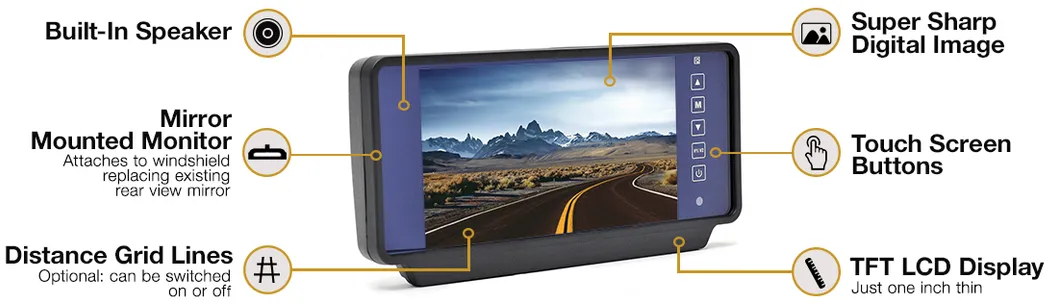

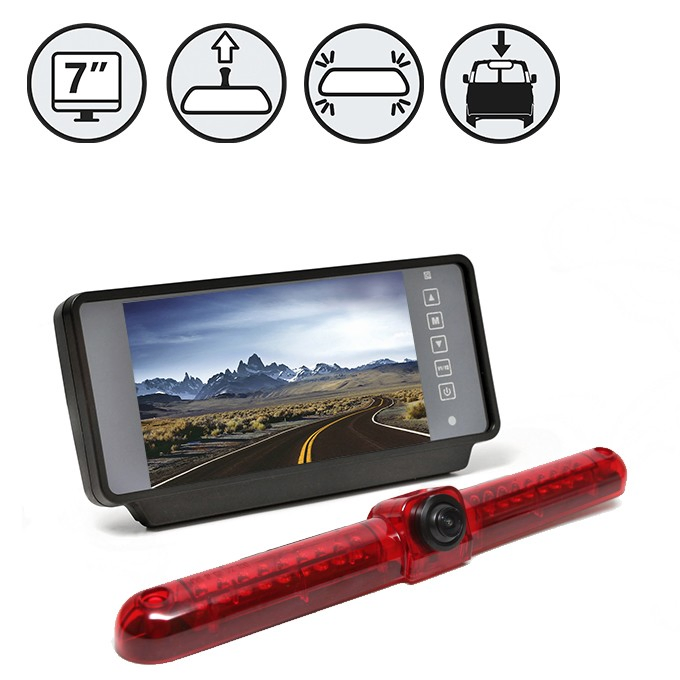

7" digital mirror monitor rear view system
With waterproof IP69 CCD camera
System is automatically activated when backing up
Completely mirror while not using, easy installation of clip-on design
Shock resistant, designed specifically for mobile use
Clip on the original monitor, stable and easy for installation

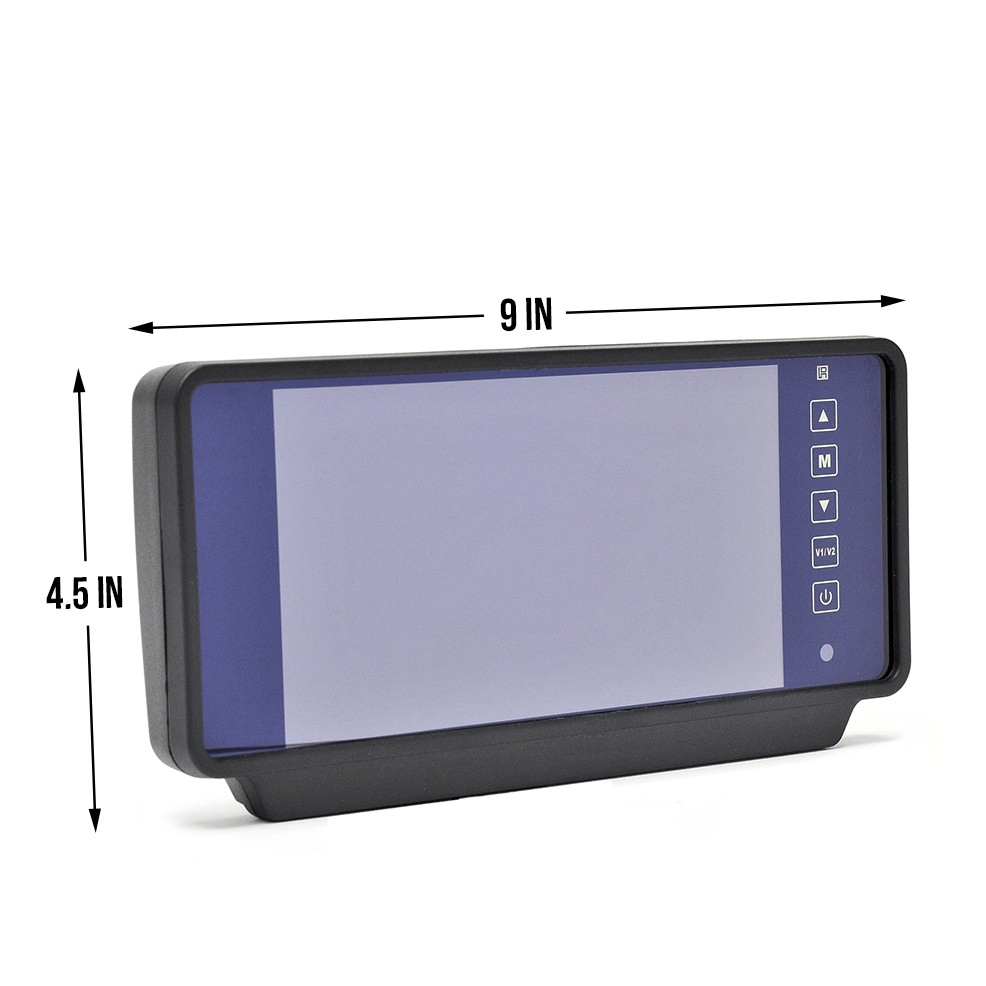

7" TFT LCD Mirror Monitor (MS-758)

Display

7" TFT LCD

Color System

PAL/NTSC

Input Voltage

12-32V DC

Format

16:9

Resolution

800 x 480

Brightness

400cd/m²

Contrast

500:1

OSD Menu

8 Languages (Chinese, English, German, Spanish, French, Russian, Japanese, Portuguese)

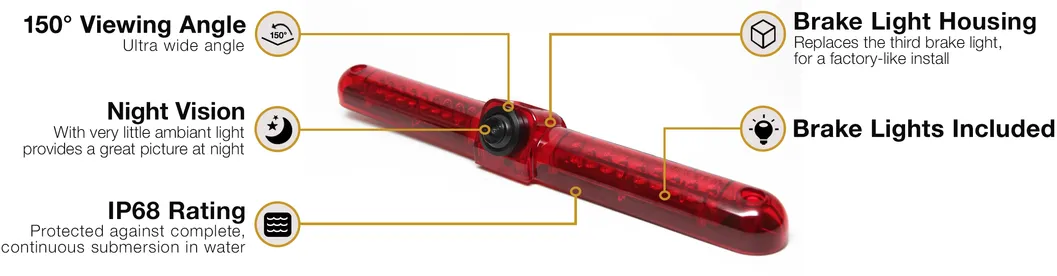

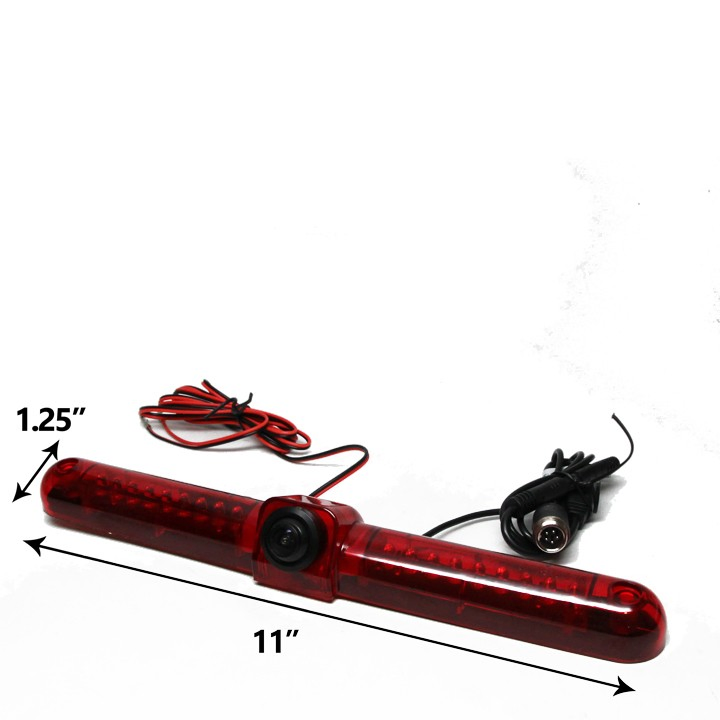

Brake Light Camera (MS-323)

High Brake Light Camera
Active Array: 752(H)*582(V)
Resolution: 540TV Lines
Minimum Illumination: 0.5Lux
AGC & BLC: Auto
S/N Ratio: More than 48dB
View Angle: 150 degree
Mount onto any flat surface

Frequently Asked Questions

What is the waterproof rating of this camera system?

The MS-758RSC system features a high-grade waterproof IP69 CCD camera, making it resistant to high-pressure water jets and harsh weather conditions.

Can the monitor be installed on my existing mirror?

Yes, the 7" digital mirror monitor is designed with a clip-on mechanism, allowing it to be easily and stably installed over your original vehicle monitor or mirror.

Does the system activate automatically?

Yes, the system is designed to activate automatically whenever the vehicle is put into reverse, providing an instant rear view for safety.

What are the power requirements for this system?

The system supports a wide input voltage range from 12V to 32V DC, making it suitable for various types of vehicles including cars, trucks, and buses.

What is the warranty period for this product?

This backup camera system comes with an 18-month warranty, ensuring long-term reliability and peace of mind.

Does the camera perform well in low-light conditions?

Yes, the camera has a minimum illumination of 0.5Lux and features Auto AGC/BLC, delivering excellent high-resolution picture quality even in low illuminated conditions.
