Basic Info.
Model NO.LT-HBXZ10
TypeBrake Testing Machine
Max Diameter<500mm
Mass Scope<900kg
Max Capacity<1000KN
Accuracy Grade0.5
Load WayElectronic Load
DisplayDigital
ControlComputer Control
Power SourceAC220V
OriginChina
HS Code902410900
Packaging & Delivery
Package Size150cm * 150cm * 180cm
Gross Weight150.000kg
Product Description

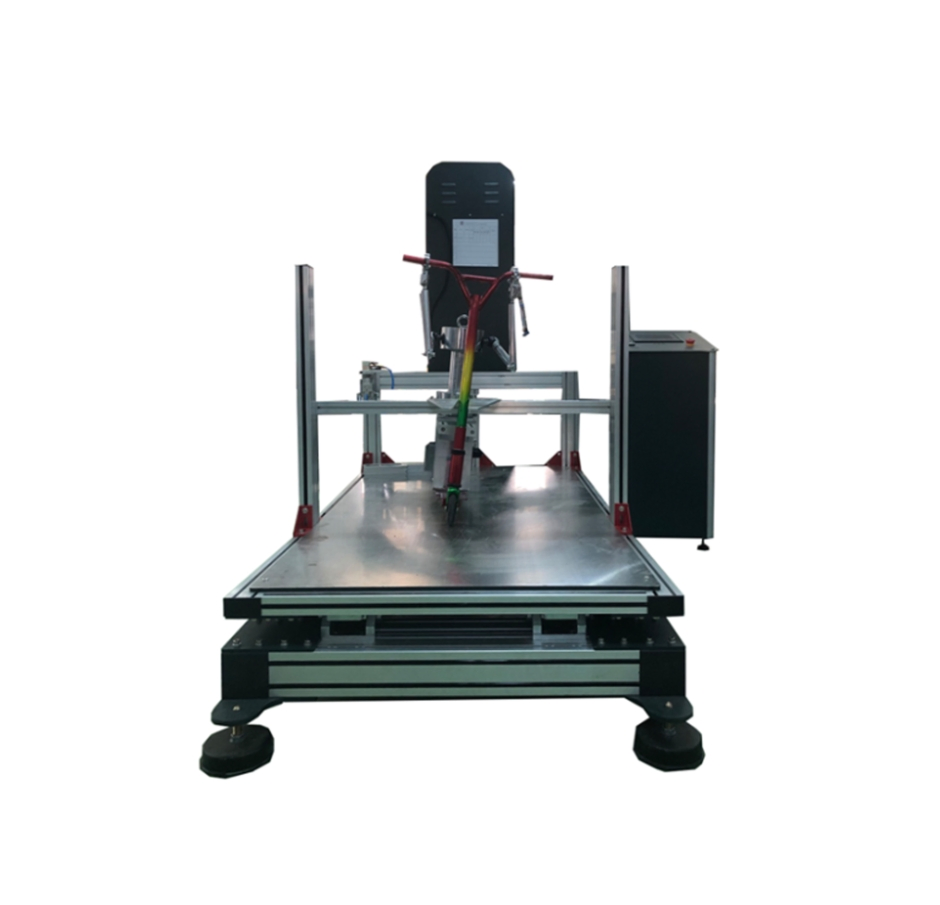

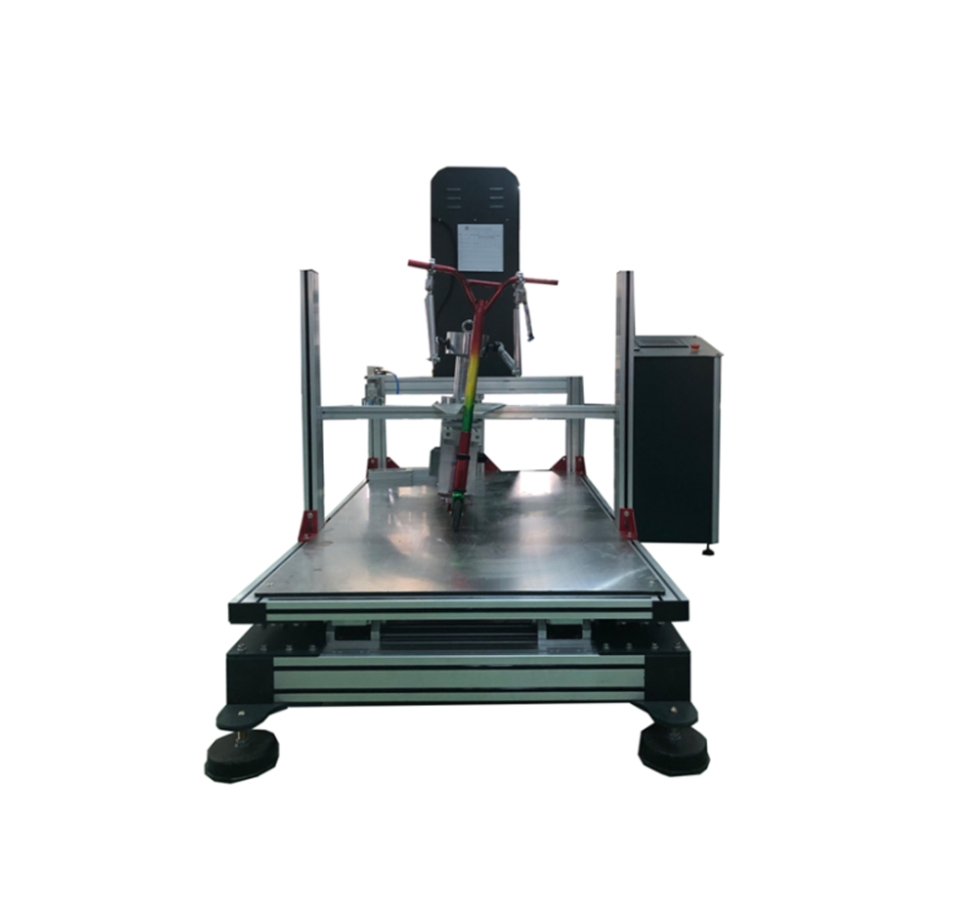

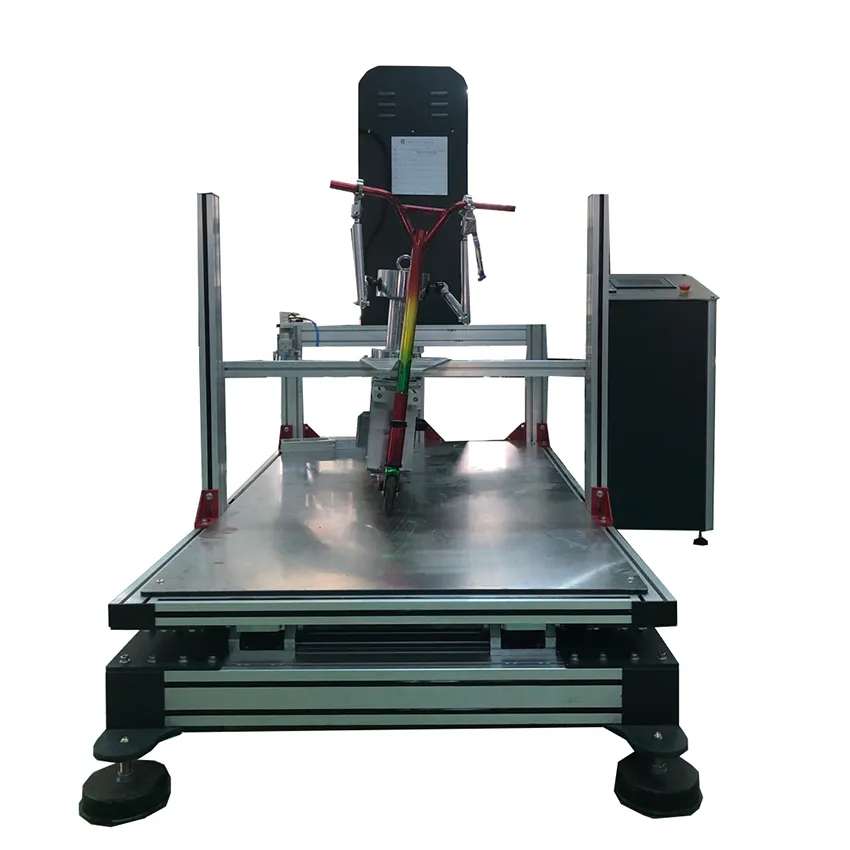

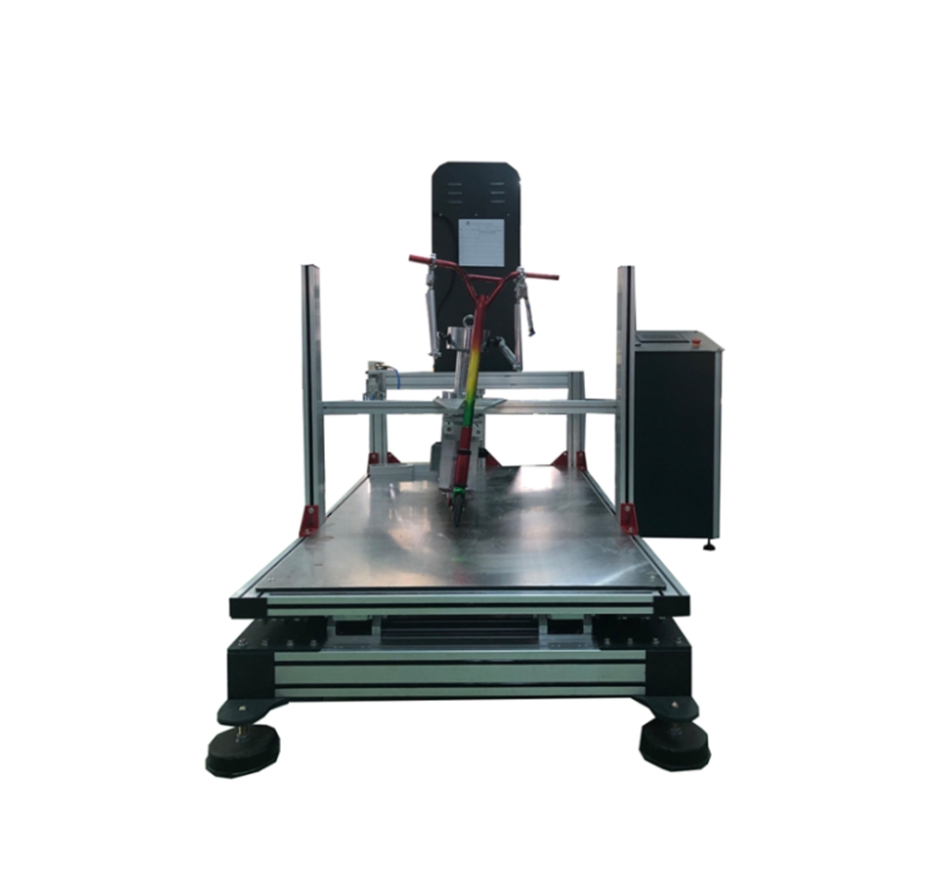

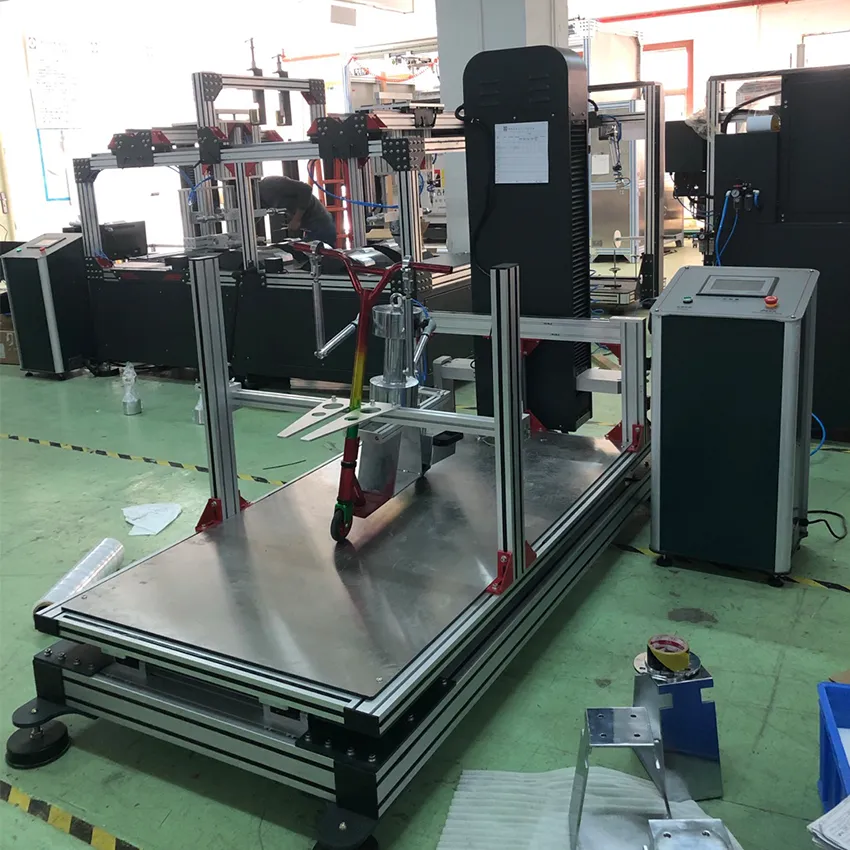

Scooter Brake Performance Testing Machine
This professional-grade Scooter Brake Performance Testing Machine is designed to accurately evaluate the braking efficiency, safety, and reliability of scooter brake systems under simulated real-world riding conditions. It performs comprehensive tests to measure critical parameters such as braking distance, deceleration rate, brake force distribution, and thermal fade resistance, ensuring compliance with international safety standards including EN 17128 and ASTM F2644.
The machine features a programmable rolling road or inertia simulation system that replicates various speeds and load conditions. It applies controlled braking inputs while monitoring response time, pad wear, and rotor/drum temperature. Equipped with precision sensors and data acquisition software, it generates detailed performance curves and compliance reports.
Technical Parameters

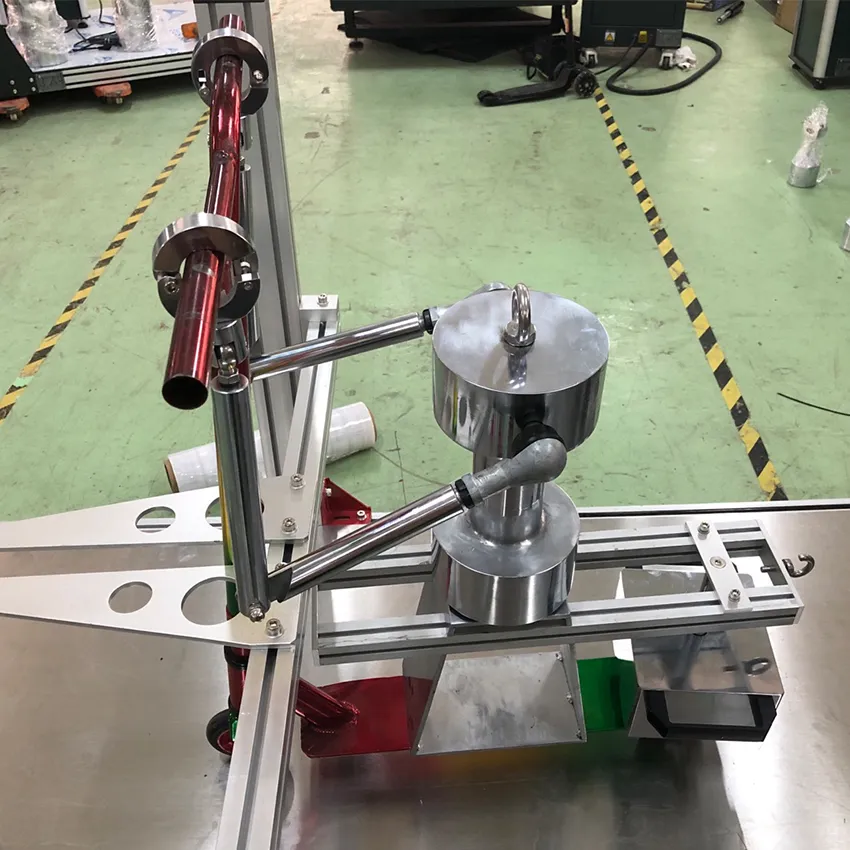

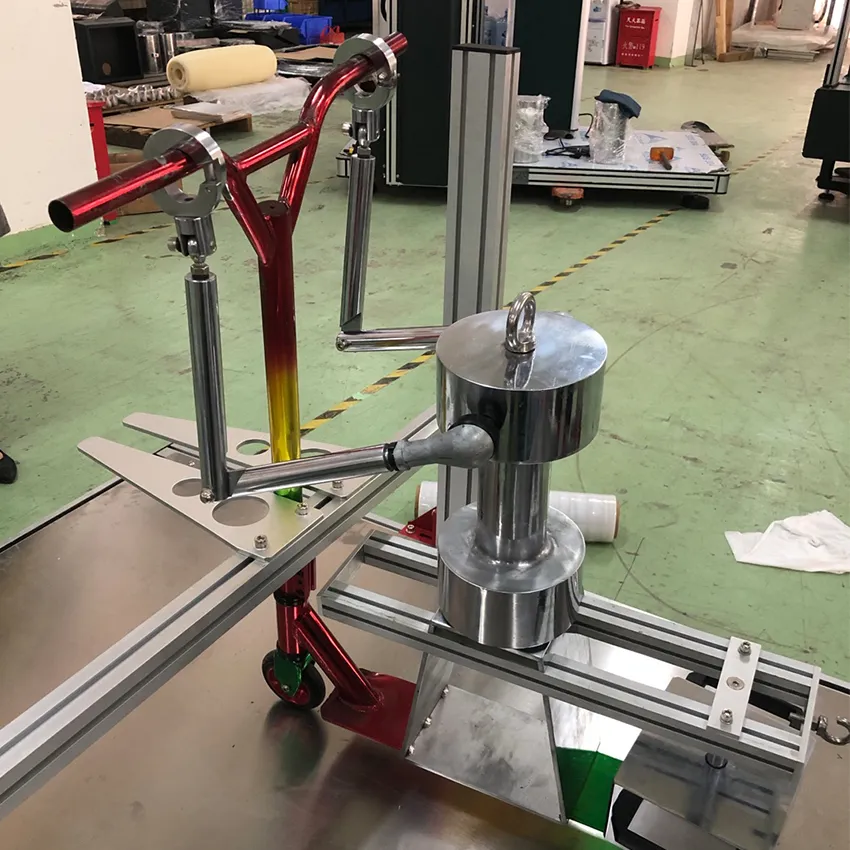

| 1. Pad: Weight 4.8±0.2kg, height 250±25mm |
| 2. Load: 25±0.2kg, center of gravity height above the pedal 400mm±5mm |
| 3. The simulated arm is attached to the handle tube |
| 4. Inclined plane: Angle 10±1° |
| 5. Brake lever middle vertical force value: 20±1kg |
Frequently Asked Questions
Which international standards does this machine comply with?
The machine is designed to ensure compliance with EN 17128 and ASTM F2644 safety standards for scooter brake systems.
What core parameters can the system measure?
It measures critical parameters including braking distance, deceleration rate, brake force distribution, response time, and thermal fade resistance.
What is the control method for the LT-HBXZ10?
The system utilizes advanced computer control with precision sensors and data acquisition software for detailed performance reporting.
Can the machine simulate different riding conditions?
Yes, it features a programmable rolling road or inertia simulation system that replicates various speeds and load conditions.
What are the power requirements for installation?
The machine requires a standard AC220V power source for operation.
What is the maximum workpiece capacity for this tester?
The machine can handle workpieces with a maximum diameter of less than 500mm and a mass scope of less than 900kg.
