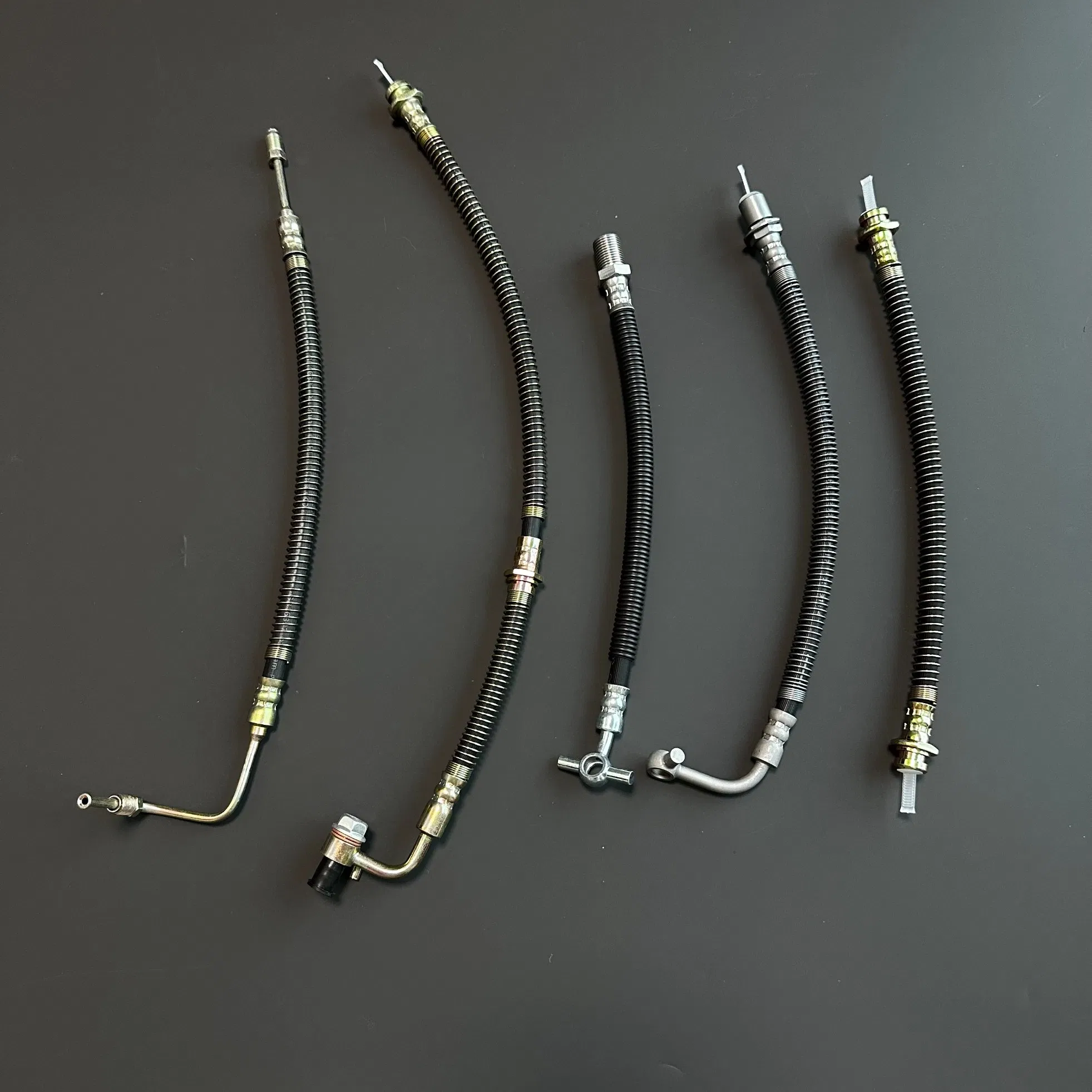

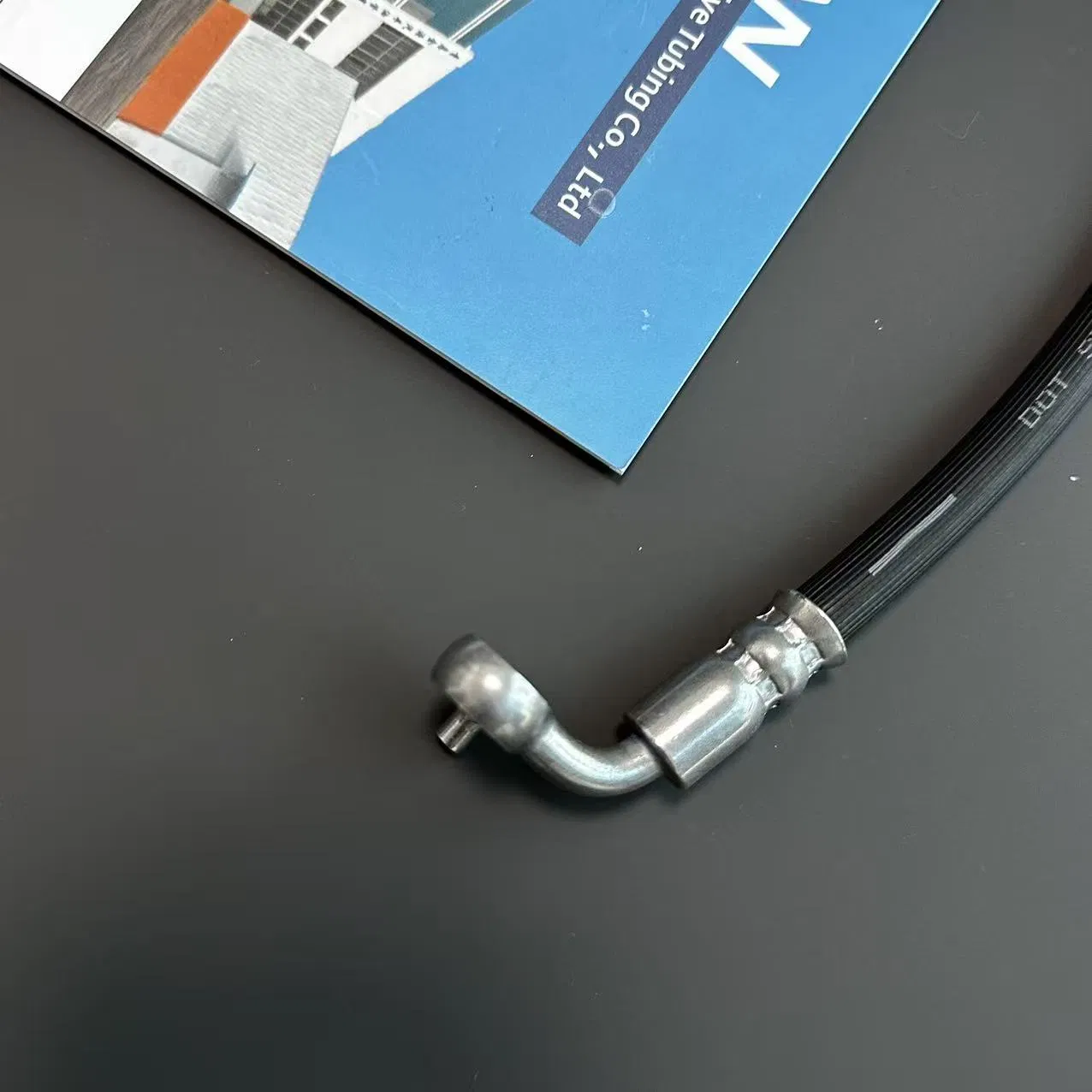

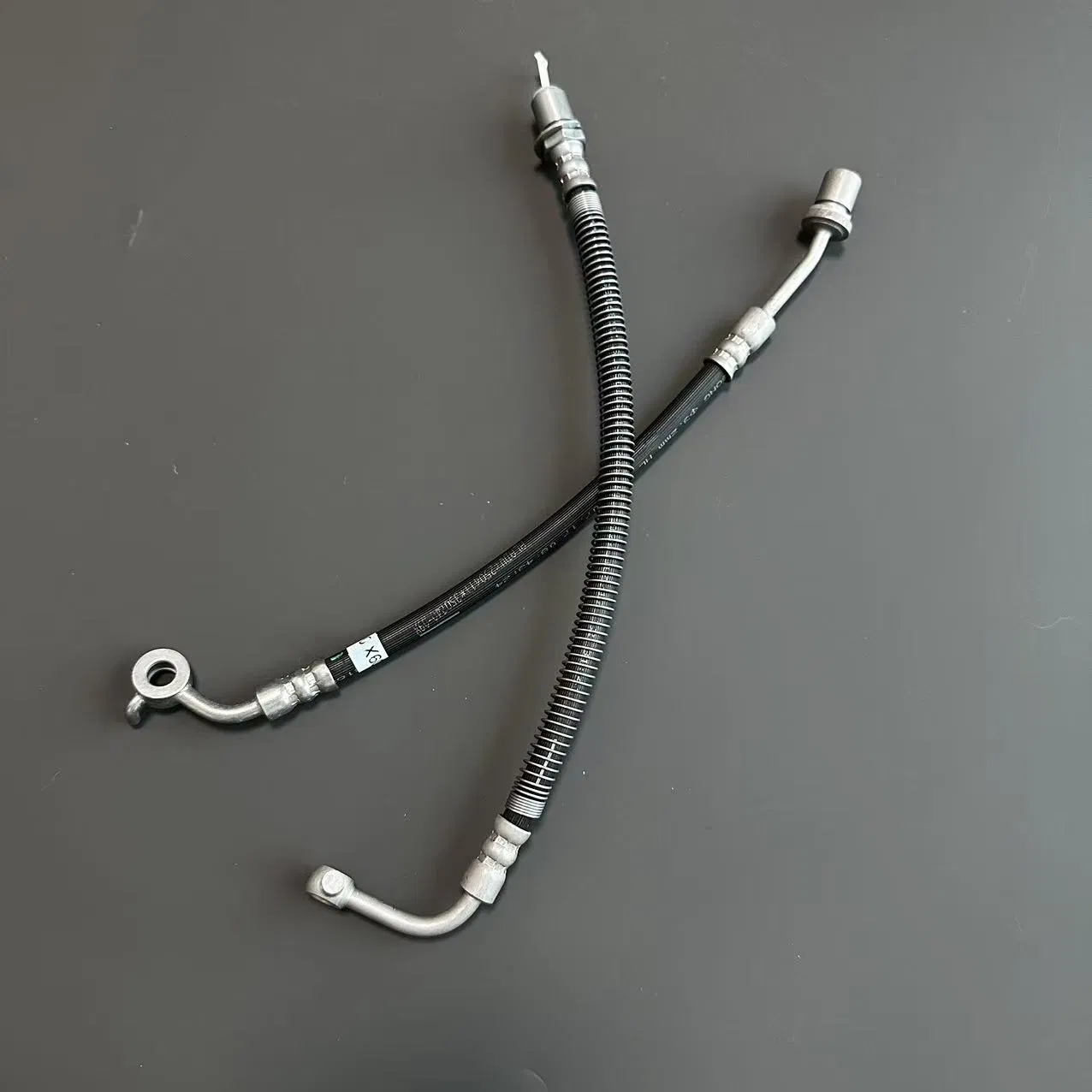

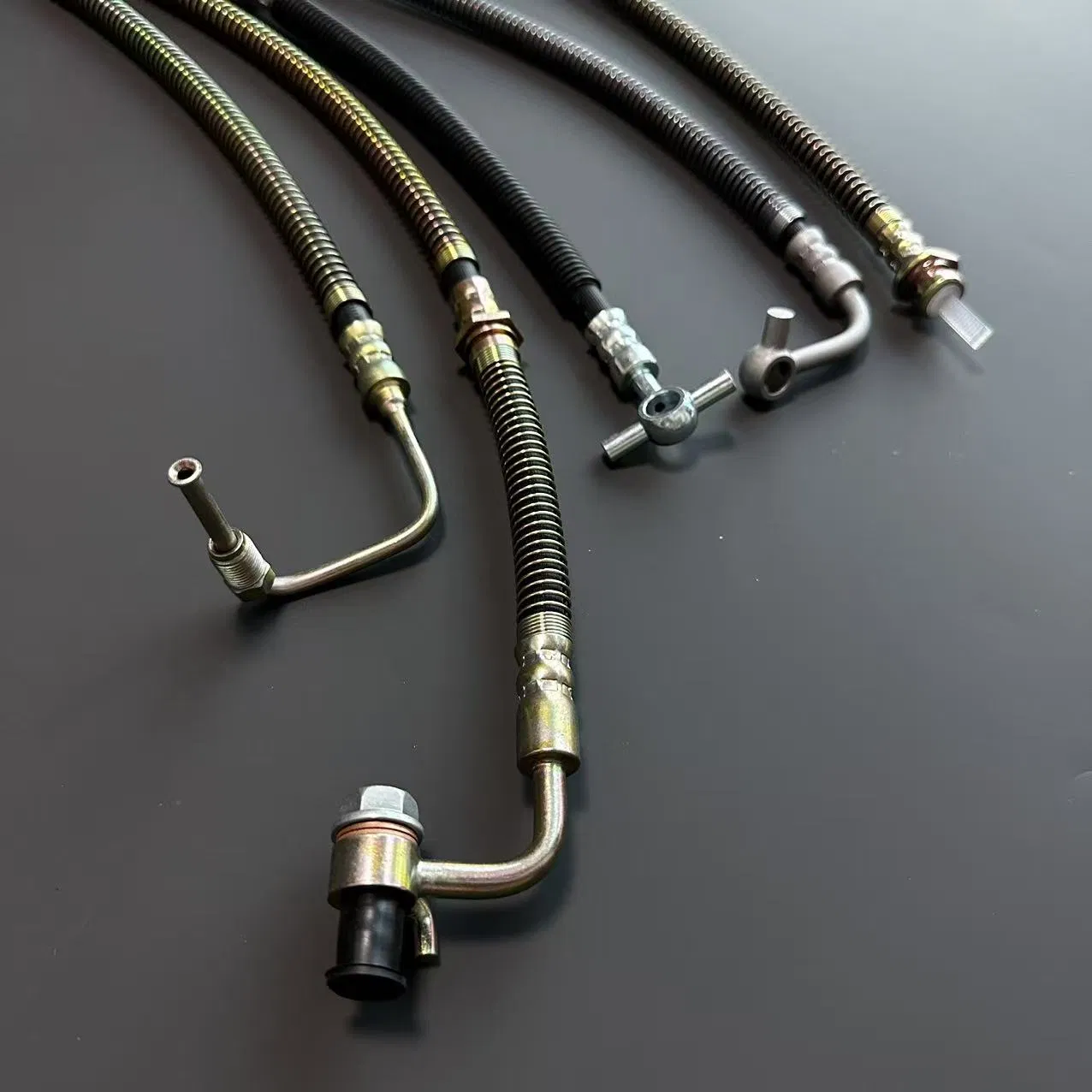

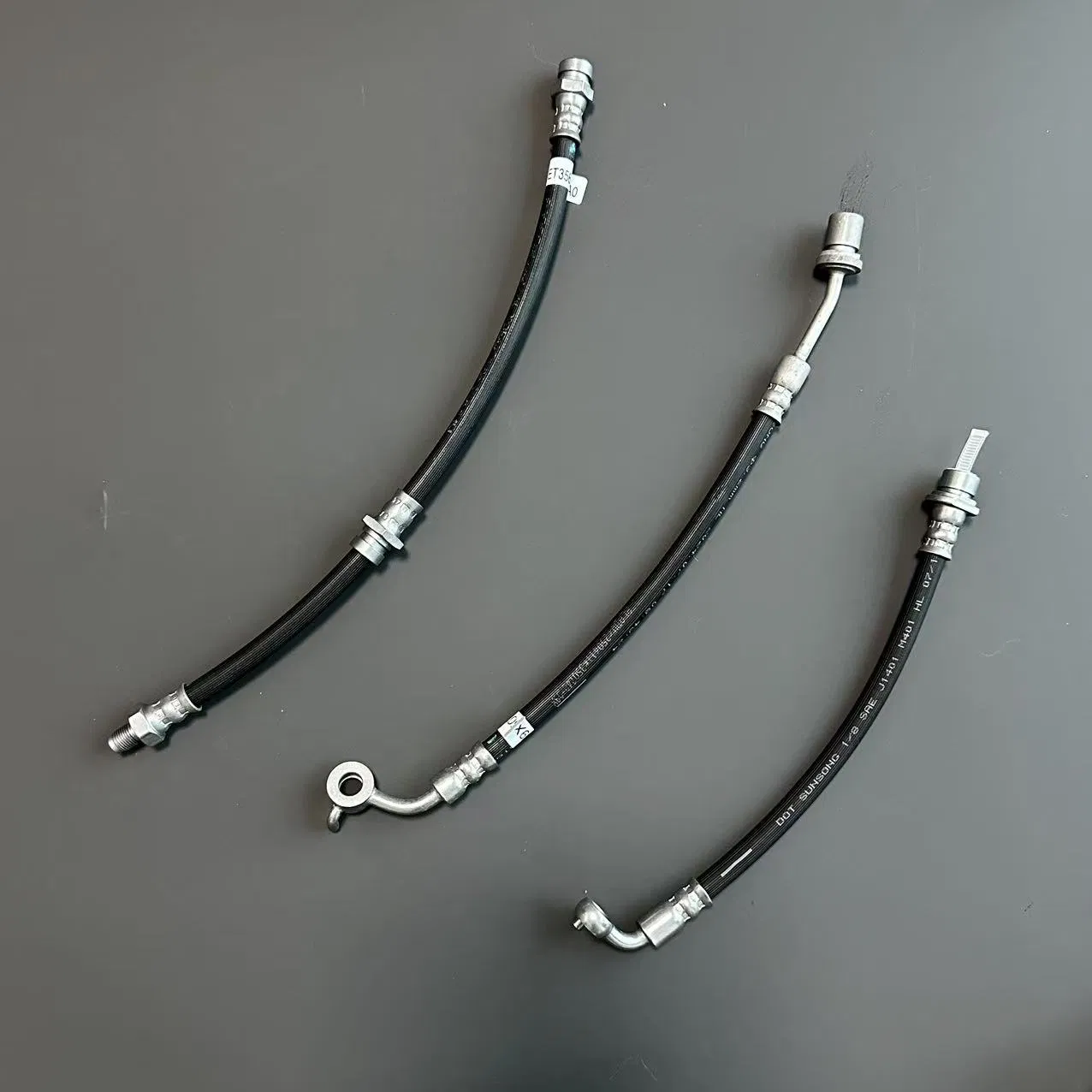

SAE J1401 Standard Hydraulic Oil Pipe 1/8 Inch High-Pressure Resistant Rubber Braided, Suitable for Industrial Automotive Truck Motorcycle Braking Systems

1 / 5

SAE J1401 Standard Hydraulic Oil Pipe 1/8 Inch High-Pressure Resistant Rubber Braided, Suitable for Industrial Automotive Truck Motorcycle Braking Systems

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.Brake hose

TypeBrake System

MaterialSteel / EPDM

CertificationIATF-16949

PositionFront

Inner TubeEPDM

Inside Diameter1/8 Inch

Pressure Rating2,500 PSI (172 bar)

🚗

Product Description

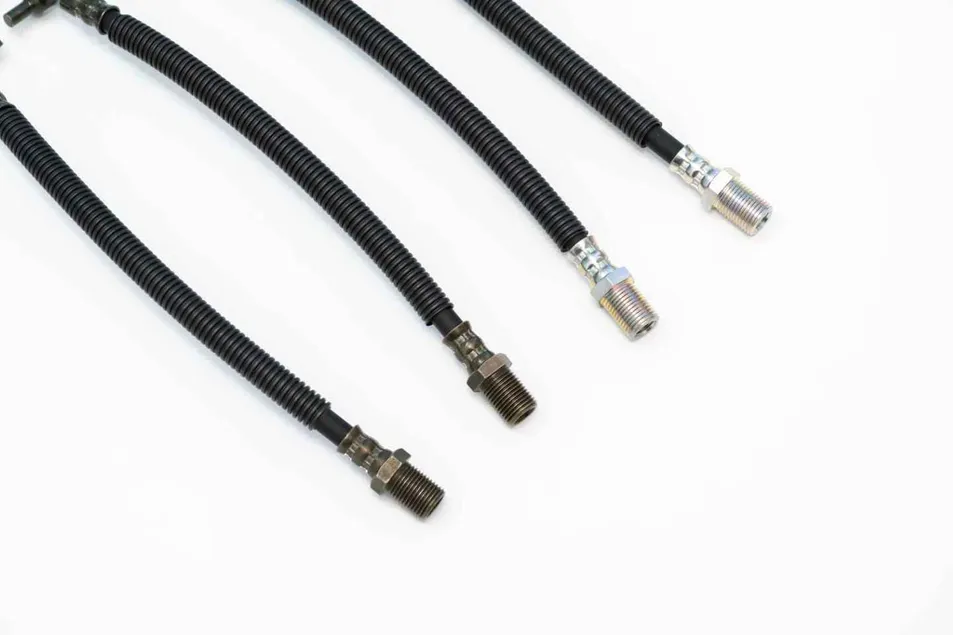

High-Performance Brake Line Systems

We specialize in the manufacturing of high-performance brake tubing systems, offering a complete range of products to meet the diverse needs of the global automotive industry. Our commitment to precision engineering, stringent quality control, and exceptional durability ensures optimal safety and reliability for every vehicle. We excel in providing customized production services to tailor each solution to your specific technical requirements and application standards.

⚙️

Technical Specifications

Category	Type	Construction	End Fittings	Dimensions	Min. Pressure
Brake Hose	Hydraulic Brake Hose	ECE R90 compliant rubber, Textile/steel reinforcement	M10×1.0, M12×1.0, 3/8-24 UNF; Zinc/Stainless steel	ID: 3/16" (4.75mm); Length: 12-60"	2,500 PSI
Brake Hose	PTFE Stainless Braided	PTFE liner, 304/316 SS braid, PVC/Nylon cover	AN Fittings: -3AN, -4AN; Metric: M10, M12	ID: 0.19-0.25"; Custom Length	4,000+ PSI
Brake Hose	Air Brake Hose	Oil-resistant synthetic rubber, Weather-resistant	1/4" NPT, 3/8" NPT, M22×1.5; Push-to-connect	ID: 1/4", 3/8"	150 PSI
Metal Line	Steel Brake Line	Double-wall galvanized steel, SAE J1047	45° inverted (SAE), bubble (ISO); Steel/Brass	OD: 3/16", 1/4"; Wall: 0.028-0.035"	3,000 PSI

🛠️

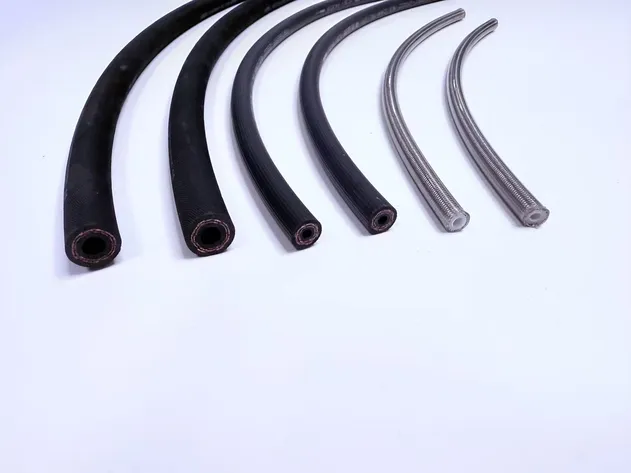

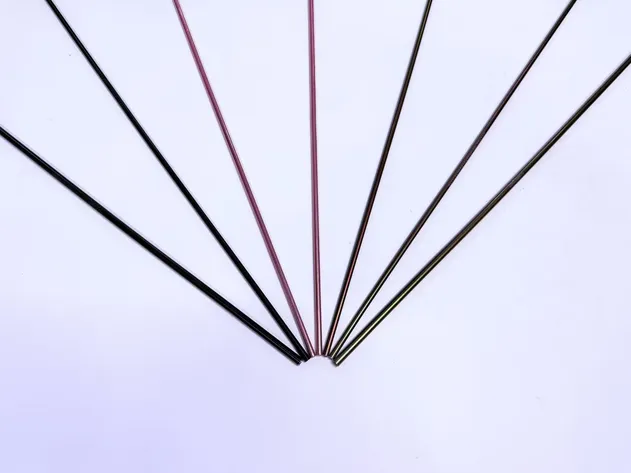

Customization Solutions

We provide highly flexible custom brake tubing solutions designed to meet your exact specifications. Our capabilities cover a wide range of materials including rubber, PTFE, stainless steel, and copper-nickel, available in both metric and imperial sizes. We offer an extensive variety of end fittings with multiple options for threads (UNF, NPT, Metric), angles (straight, 45°, 90°, 135°, banjo), and materials.

🏭

Manufacturing & Testing Capabilities

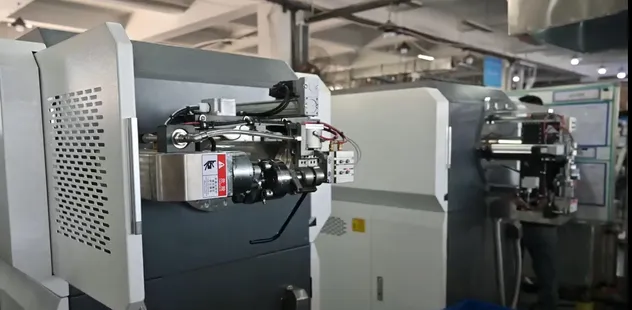

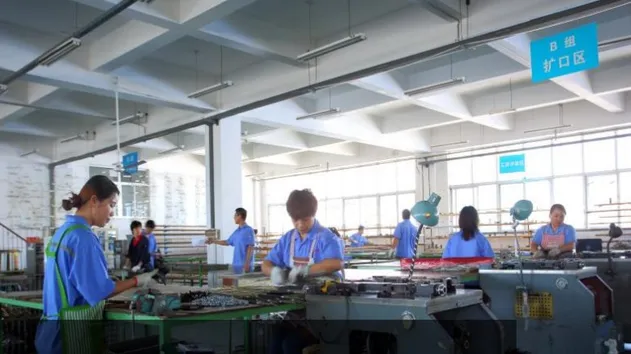

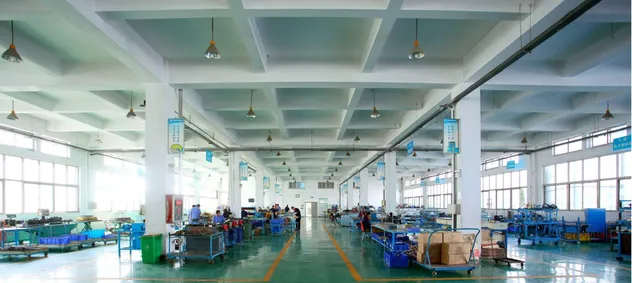

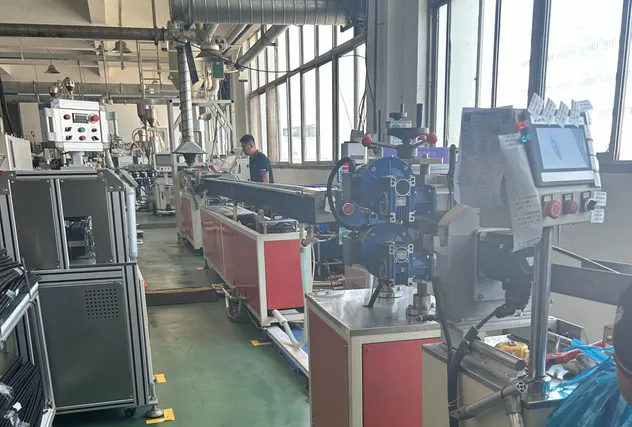

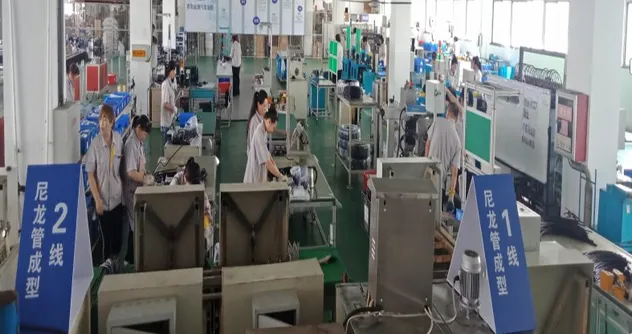

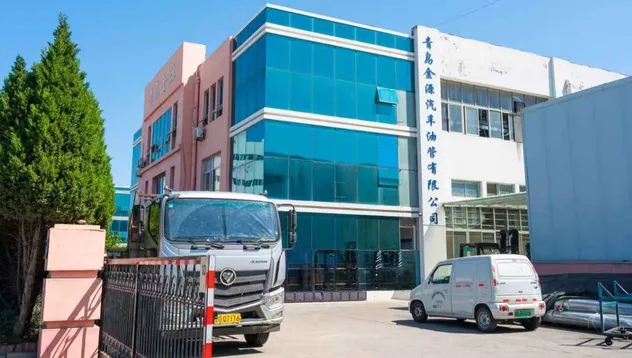

Workplace Photos

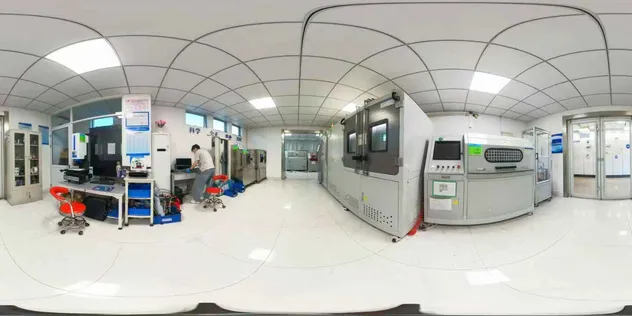

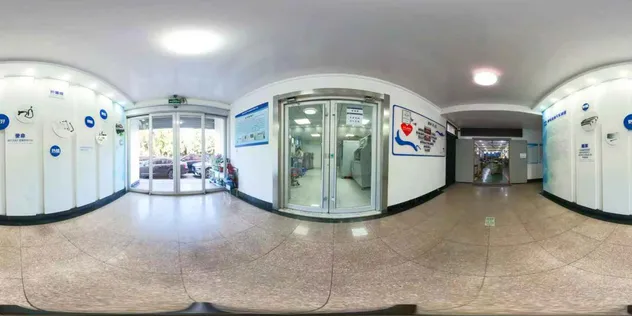

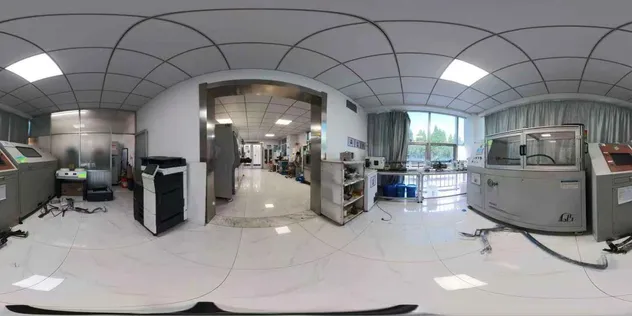

Testing Equipment

Our Quality Assurance Center utilizes state-of-the-art equipment including pulse test rigs, environmental chambers, and burst pressure testers to rigorously validate every product in line with ISO, DIN, DOT, and CE requirements.

🤝

Cooperation Models

OEM & Tier 1

Full support for 2D/3D CAD drawings, technical specifications, and compliance with SAE / ISO / ECE R90 standards.

Aftermarket

Distribution and retail support using OE part numbers or physical samples for precise replacement matching.

Modification

Custom solutions for motorsport, including performance data validation for extreme pressure and temperature.

❓

Frequently Asked Questions

What quality standards do your brake hoses meet?

Our products are certified to IATF-16949:2016 and comply with SAE J1401, ISO, DIN, DOT, and CE requirements to ensure global safety standards.

What materials are available for custom brake lines?

We offer a variety of materials including EPDM synthetic rubber, PTFE with stainless steel braiding, double-wall galvanized steel, and Copper-Nickel (Kunifer) alloys.

Can you handle custom fitting and thread requirements?

Yes, we provide a wide range of end fittings with Metric (M10, M12), UNF (3/8-24, 7/16-20), and NPT threads, along with various banjo and flare angles.

What is the typical pressure rating for your hydraulic hoses?

Our standard hydraulic brake hoses are rated for a minimum of 2,500 PSI (172 bar), while our PTFE braided hoses can exceed 4,000 PSI (276 bar).

Do you provide protective components for the tubing?

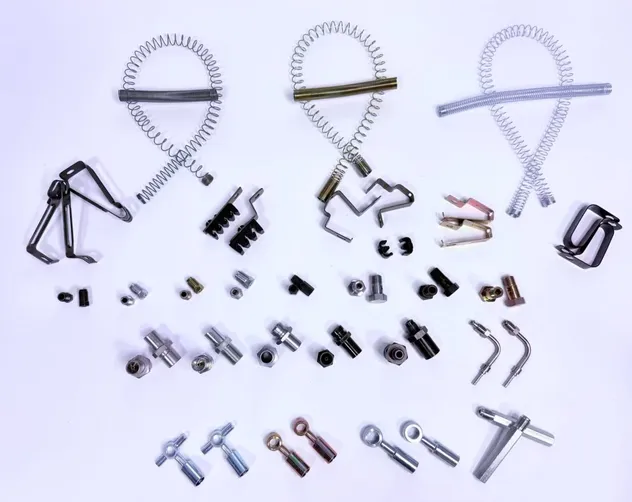

Yes, we offer abrasion-resistant spiral guards, protective convoluted conduits, and various surface treatments like zinc or nickel plating for enhanced corrosion resistance.

How do you ensure the durability of your products?

Every assembly undergoes rigorous validation in our in-house Quality Assurance Center, including pulse testing, burst pressure testing, and environmental chamber exposure.
