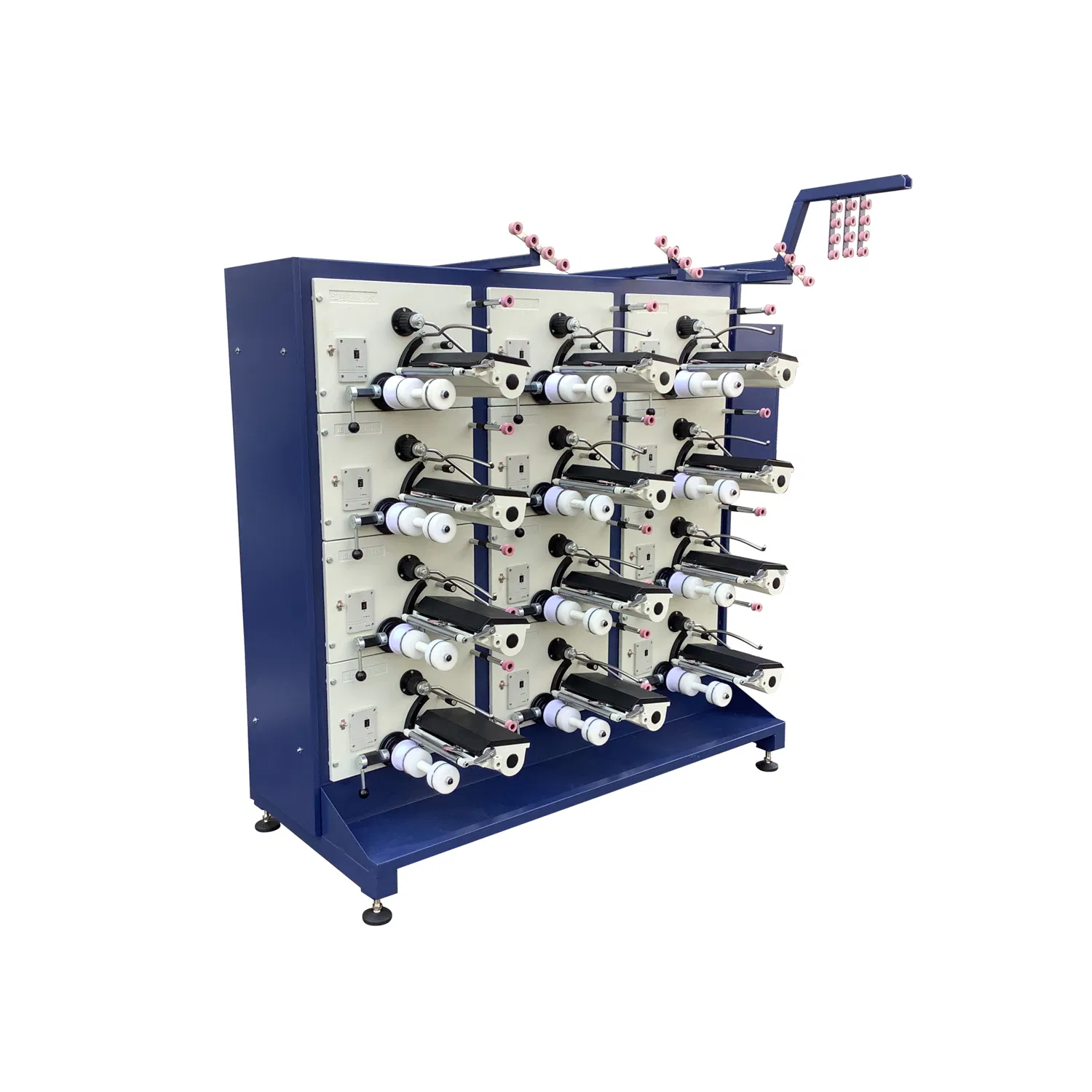

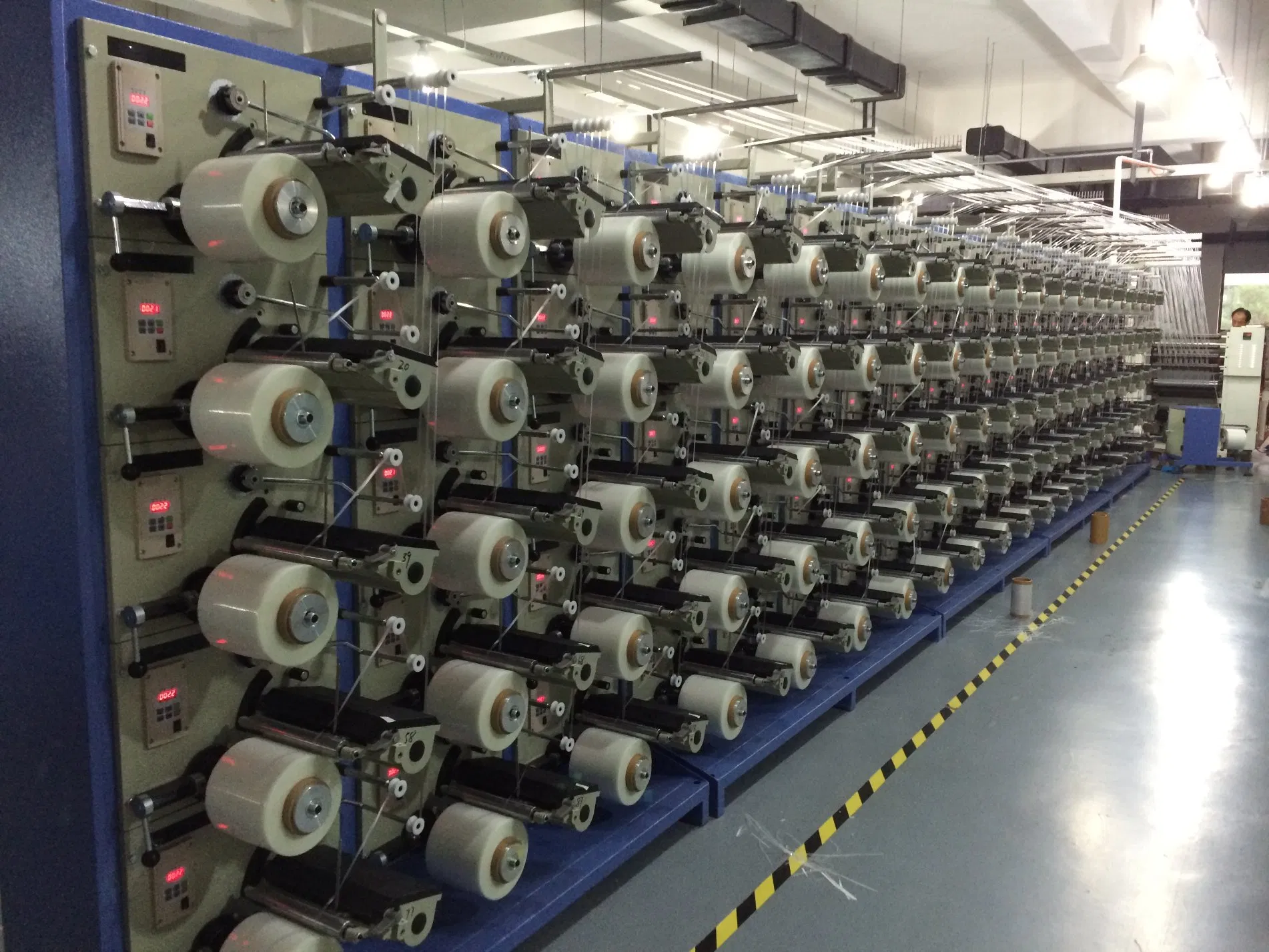

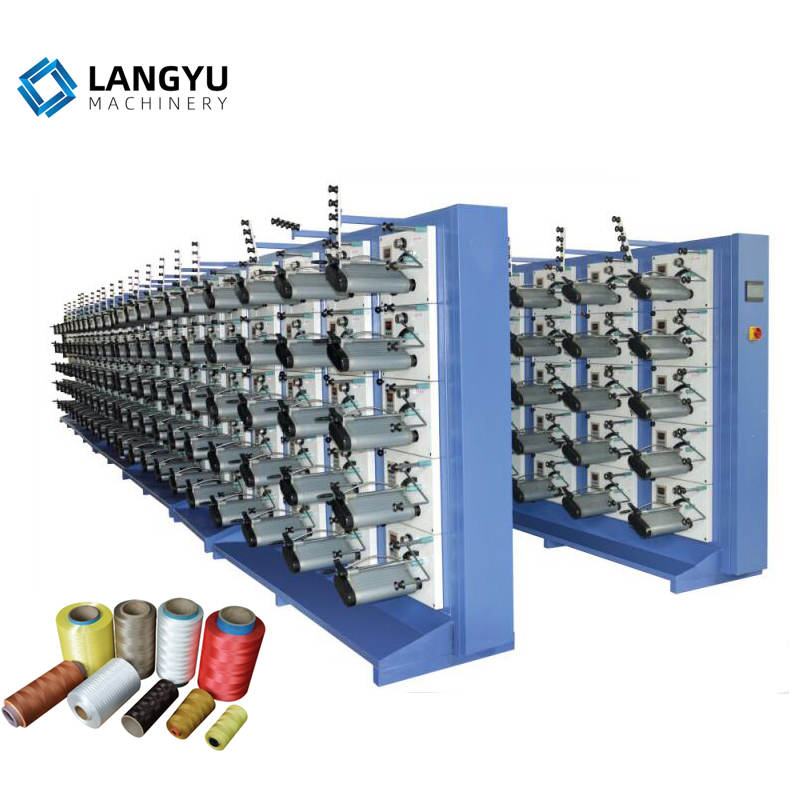

Constant Winding Yarn Fiber Converter

Customization:	Available
After-sales Service:	Support Online
Warranty:	12 Months

📋

Basic Information

Model NO.LY-300mm

Applicable GoodsBobbin

TypeCantilevered Wrapping Machine

Driven TypeElectric

ApplicationElectrical & Electronics, Machinery

Automatic GradeManual

Inclusion DegreeHalf Winding Machine

StructureCantilevered Winding Machine

Film Frame StructureMechanical Stretch

SeriesR Series - Cantilever Winding Machine

Winding WayCoverting Winding

Ribbon Like Filament1-4mm

Winding Speed10-150m/Min

Delivery Time40 Days

Transport PackageExport Wooden Case

TrademarkLang Yu

OriginChina

Production Capacity3000 Sets/Year

🚀

High-speed Filament Winder

⚙️ Key Features

Novel design for high efficiency
Uniform tension for quality products
Low energy consumption
Variable frequency control for precision
Compact size and lightweight for easy maintenance
Improved noise reduction
Enhanced safety with a reasonable brake position
High sensitivity tension control

💡 Applications

This equipment is perfect for use in health, medicine, decoration, protection, electronic packaging, textile, and cable industries.

🛠️ Primary Uses

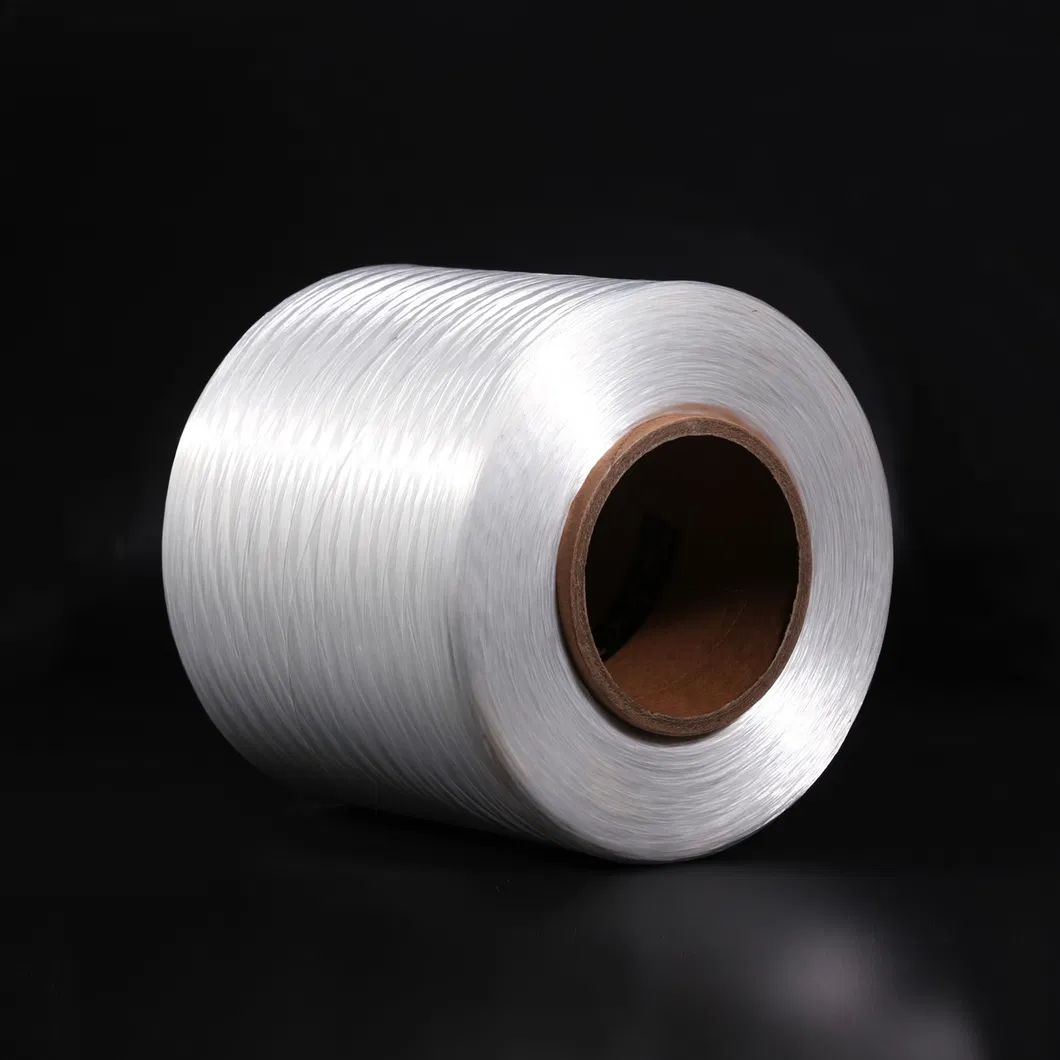

Designed for high-speed winding of ribbon-like plastic filament, chemical fiber, monofilaments, and more. Revolutionize your winding process today!

📊

Basic Tech Parameters

Power Supply	380V 50/60HZ
Drive	Frequency-Controlled
Tension	Dancer Arm
Traverse length	200/254mm or other size
Max.Dia.	200mm
Take-up bobbin	ID 76~77.5 * L 280mm
Winding speed	Constant speed of 50-150m/min (inputted through HMI)
Machine Color	White & Blue

❓

Frequently Asked Questions

Q1: What materials are compatible with the High-speed Filament Winder?

A: The machine is designed for ribbon-like plastic filaments, chemical fibers, monofilaments, and similar materials.

Q2: What is the maximum winding speed of the LY-300mm model?

A: It supports a constant winding speed ranging from 10m/min to 150m/min, which can be digitally adjusted through the HMI.

Q3: Which industries benefit most from this winding machine?

A: It is widely used in health, medicine, textile, cable, electronic packaging, decoration, and protection industries.

Q4: How does the machine ensure consistent product quality?

A: Through the use of a dancer arm tension control system and variable frequency drive, it maintains uniform tension throughout the winding process.

Q5: Is the machine easy to maintain?

A: Yes, its novel compact design and lightweight structure make it easy to maintain, while the improved brake position ensures enhanced safety.

Q6: What are the power supply requirements?

A: The standard power supply requirement is 380V at 50/60HZ.

Product Detail

Constant Winding Yarn Fiber Converter

Product Description

Basic Information
