Pitch Control Horizontal Axis Wind Turbine System Solution High-Output

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.

Output Type

AC Three Phase

Number of Blade

Three Blade

Rotating Shaft

Horizontal

Stress Way of Blade

Pitch Control

Power

10kw

Certification

Start-up Wind Speed

2.5m/S

Rated Wind Speed

11m/S

Blade Material

FRP*3

⚙️

Product Description

Why choose AH-10KW wind turbine?

Leading technology-intelligent control, strong system scalability

The world's best wind power control technology is combined with the self-developed variable pitch technology.
The hardware design uses international well-known brands, and the software uses redundant control strategies.
It can achieve good compatibility with various well-known brand converters and remote modules.

High security-continuous operation around the clock to achieve unattended operation

The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.

High-efficiency output, power generation up to 30%

Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
The working wind speed range is large (3-25m/s), and the effective running time is long.

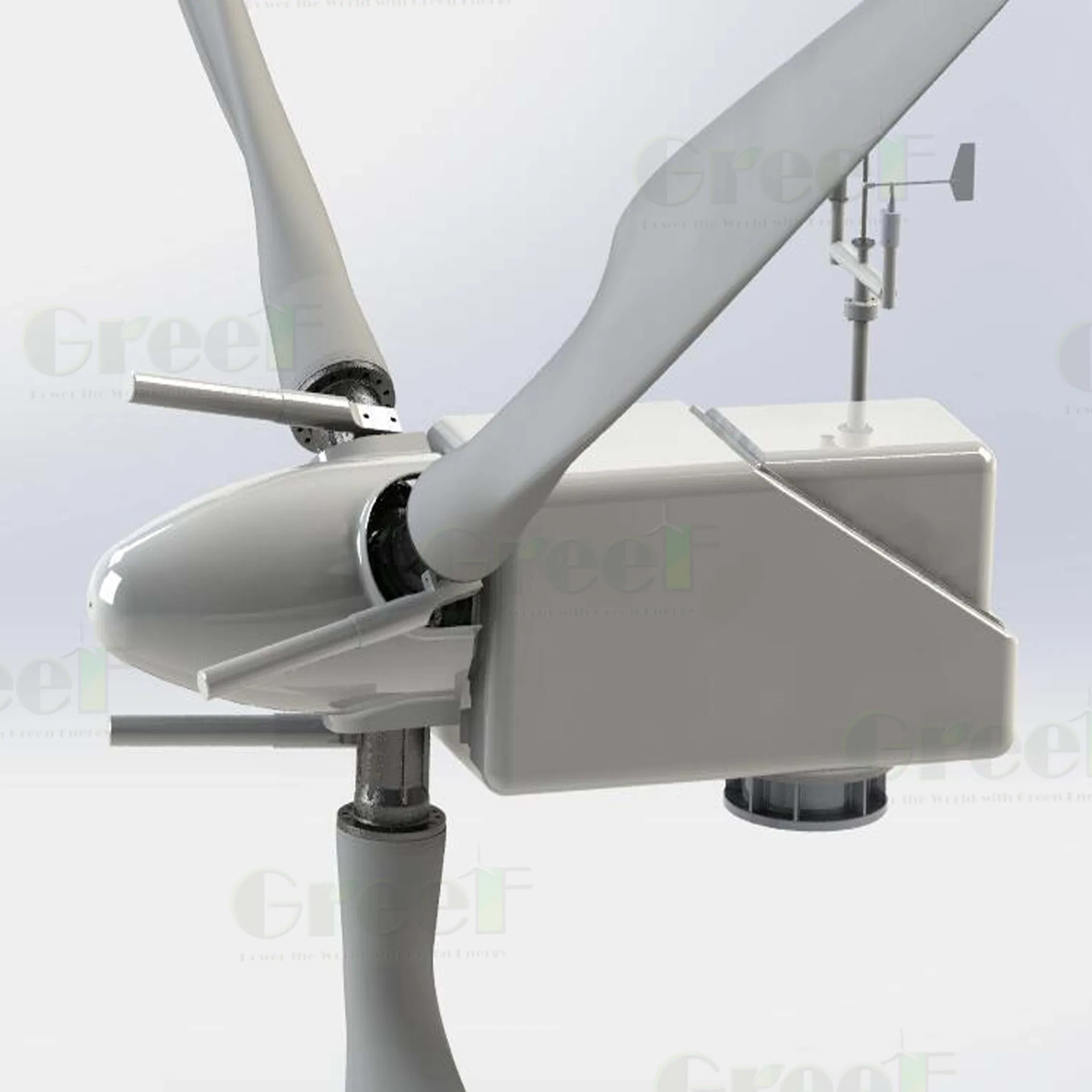

Pitch Control Horizontal Axis Wind Turbine

Recommended for:

Household, Garden, Farm, Urban, Rooftop
Telecom sites
Rural electrification programs. Island, sentry, sight lighting
Automatic speed reduction protection

📝

Technical Specification

Model	AH-10KW
Rotor diameter (m)	7.78
Blade material & Qty.	FRP *3
Rated power (kW)	10
Rated wind speed(m/s)	11
Rated rotating speed(r/min)	180
Generator model	3-phase PMG
Working wind speed (m/s)	3-30
Start-up wind speed (m/s)	2.5
Survival wind speed(m/s)	60
Rated voltage(VDC)	400
Speed regulation method	Pitch-controlled
Stop method	Auto brake
Noise level (dB)	≤65
Tower height (m)	≥12
Working temperature	-20ºC~+50ºC

📷

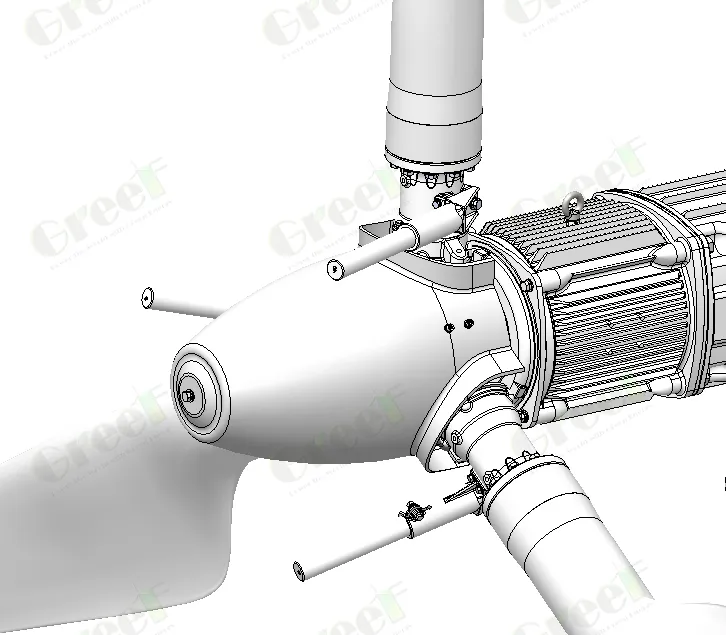

Detailed Product Photos

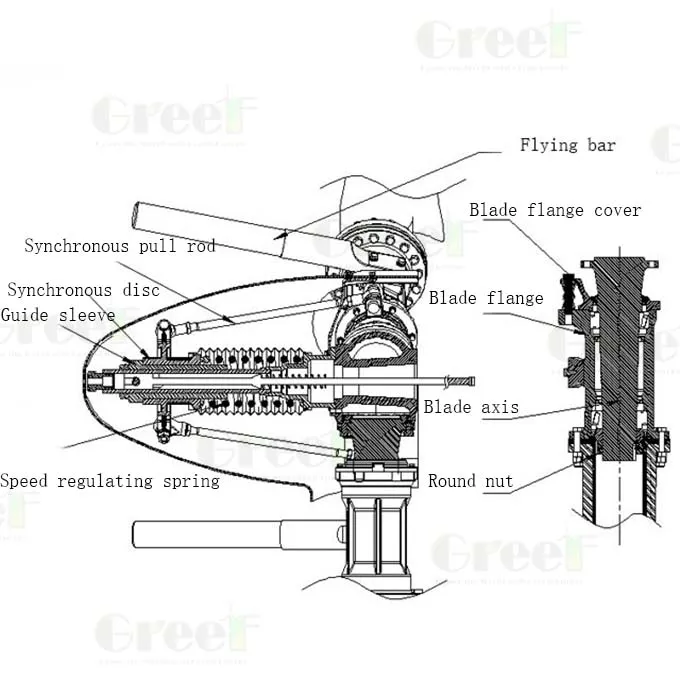

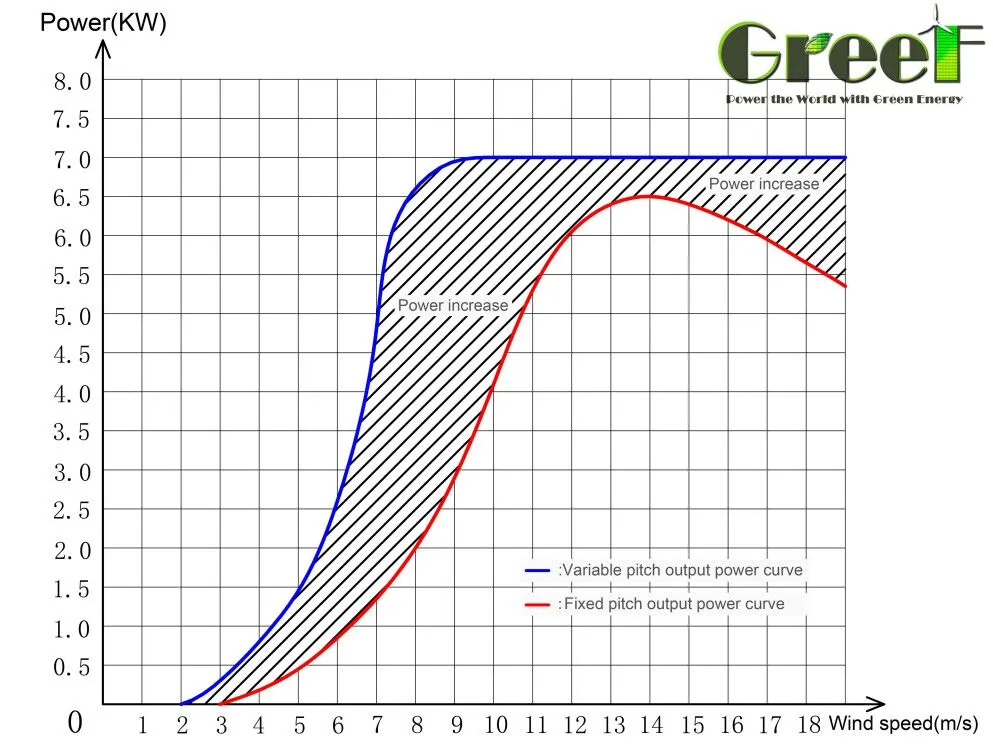

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.

Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
Below the rated wind speed, the wind turbine outputs efficiently;
Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed.

🌍

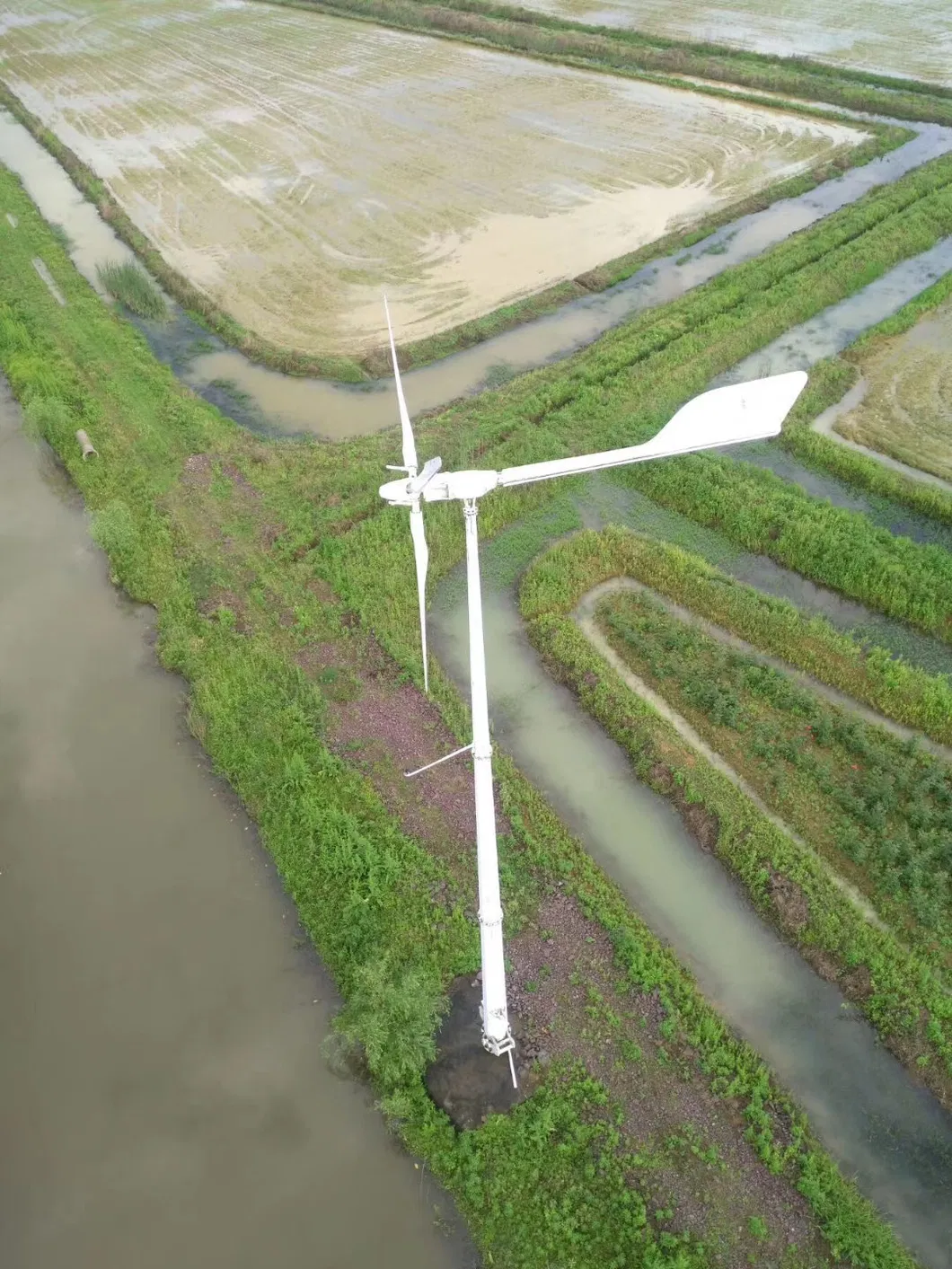

Global Project Cases

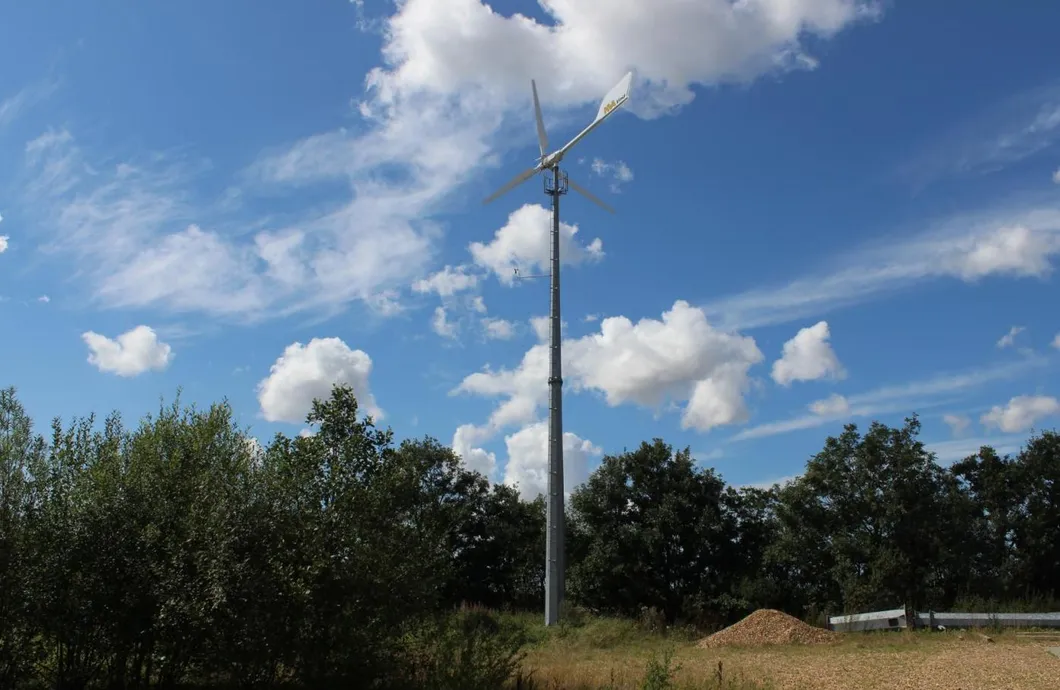

On-grid System in Denmark

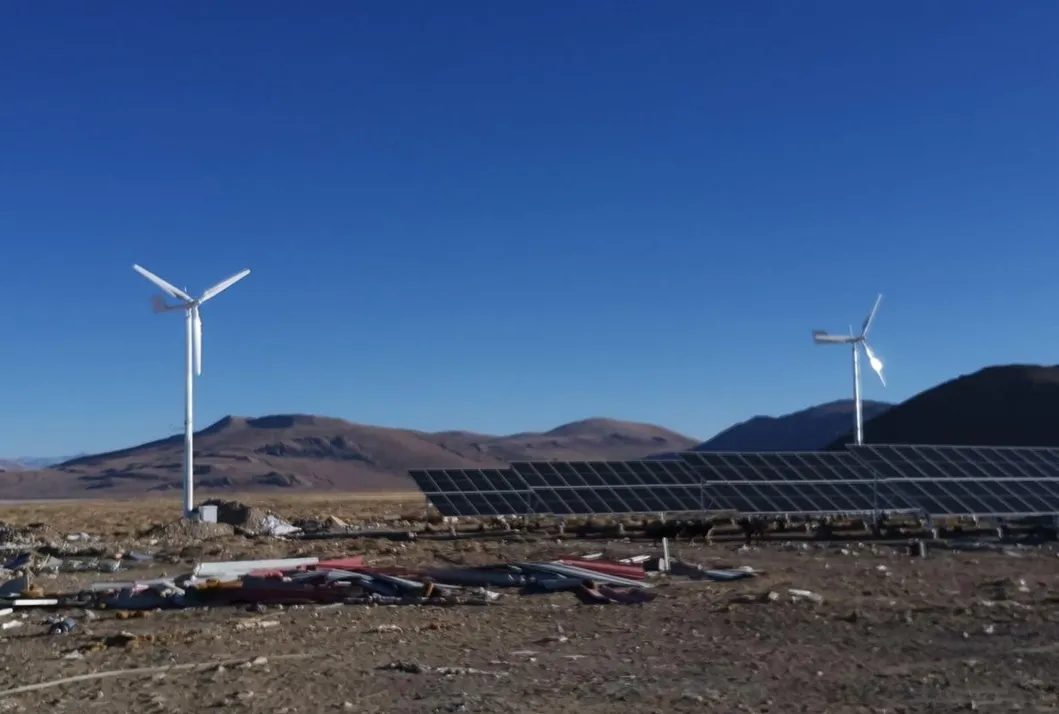

On-grid System in Germany

The systems were also installed in countries like India, the Philippines, Ireland, Colombia, France, Brazil, Switzerland and Hungary.

💡

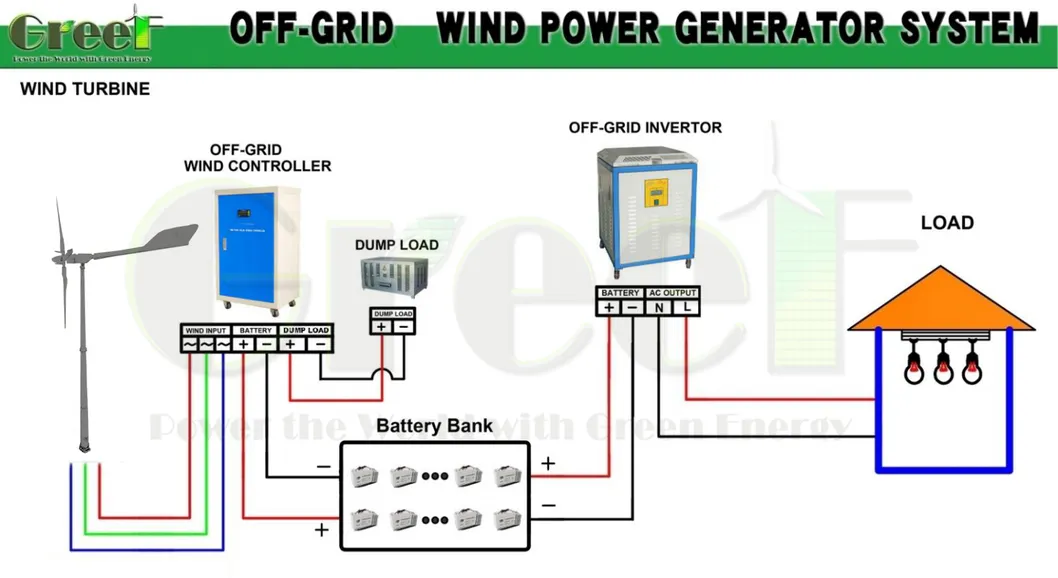

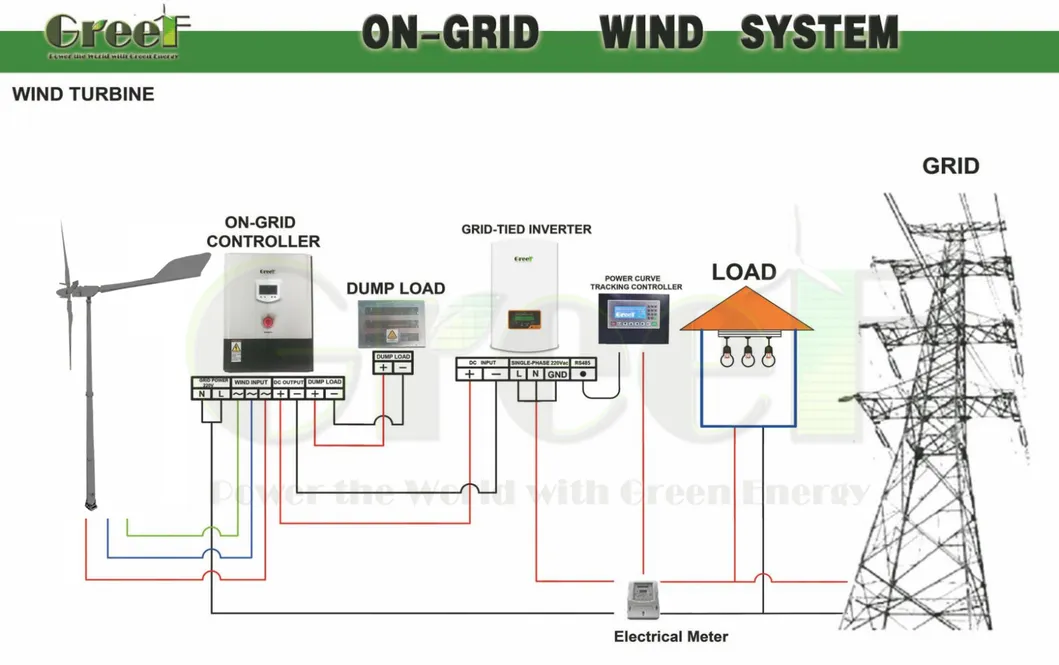

System Solutions

🏆

Why Choose Us

We are a global supplier focused on Permanent Magnet generators, wind turbines, wind turbine blades, controllers, and inverters.

Our engineering team designs products in-house. We have successfully obtained CE approvals and maintain strong support from customers worldwide.

❓

Frequently Asked Questions

1. What is the start-up wind speed for the AH-10KW turbine?

The turbine features an excellent low start-up wind speed of 2.5m/s due to its mechanical centrifugal variable pitch technology.

2. How does the variable pitch technology benefit power generation?

It allows the blades to adjust their angle based on wind speed, ensuring stable full power output even in high winds and increasing efficiency by up to 30%.

3. What kind of protection systems are included?

The system includes smart control for unattended operation, more than a dozen redundant control strategies, and an automatic brake for gale protection.

4. Can this turbine be used for off-grid or on-grid systems?

Yes, it is highly compatible and can be used in both on-grid and off-grid solutions for households, farms, and telecom sites.

5. What is the working temperature range?

The AH-10KW wind turbine is designed to operate reliably in temperatures ranging from -20ºC to +50ºC.

6. What certifications does the product have?

The product is CE certified, ensuring it meets high safety, health, and environmental protection requirements.
