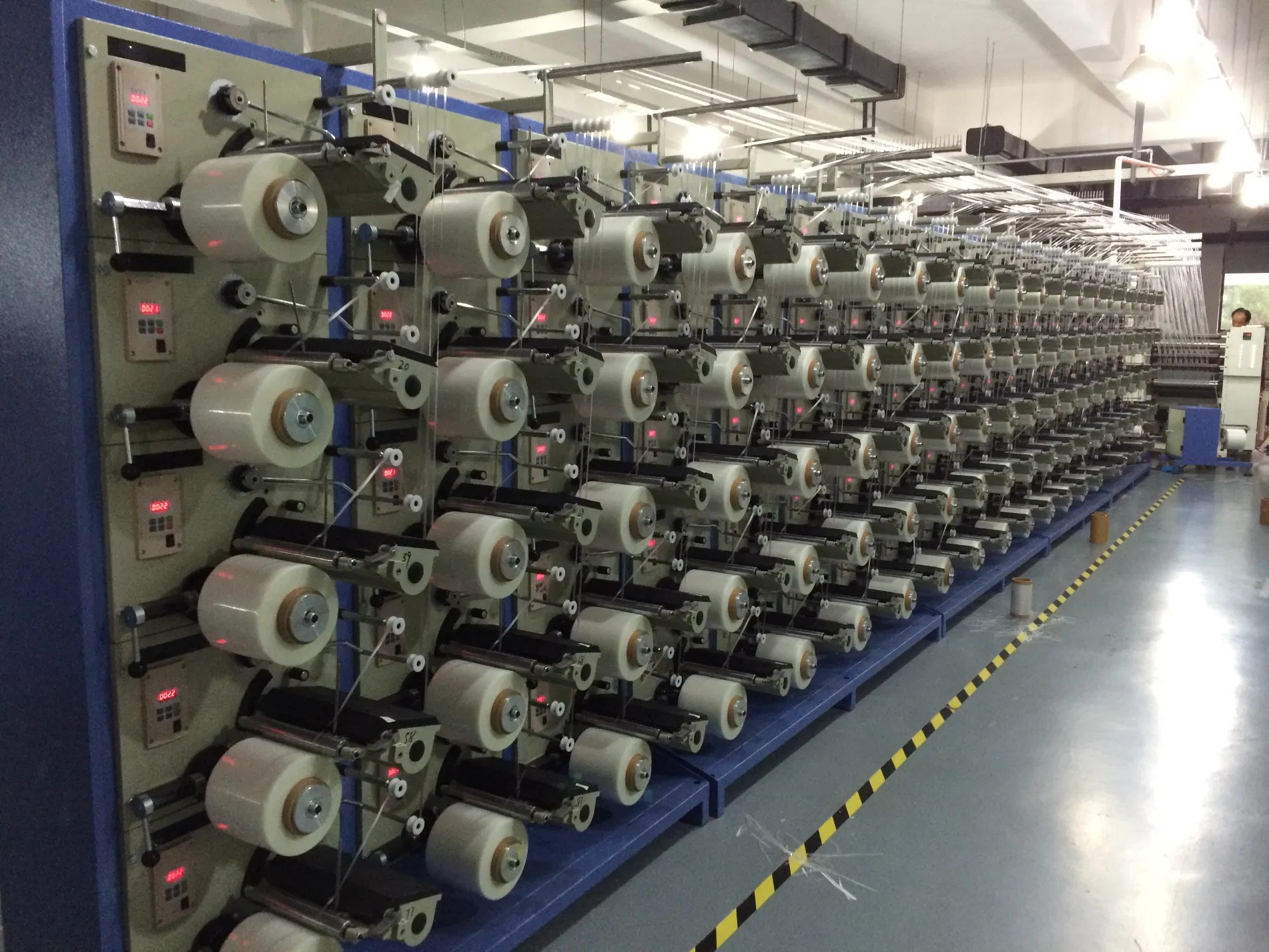

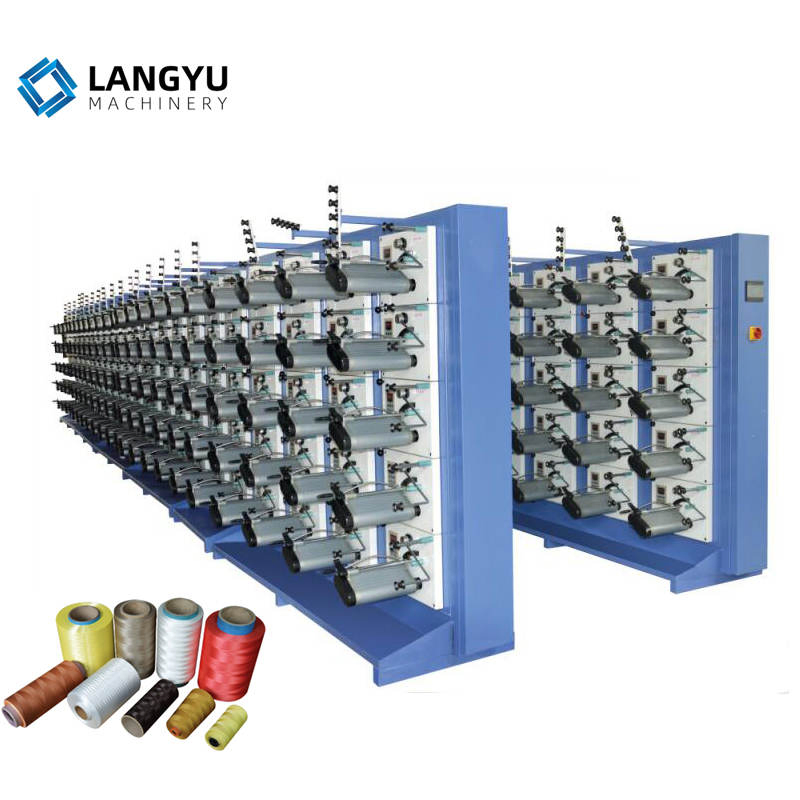

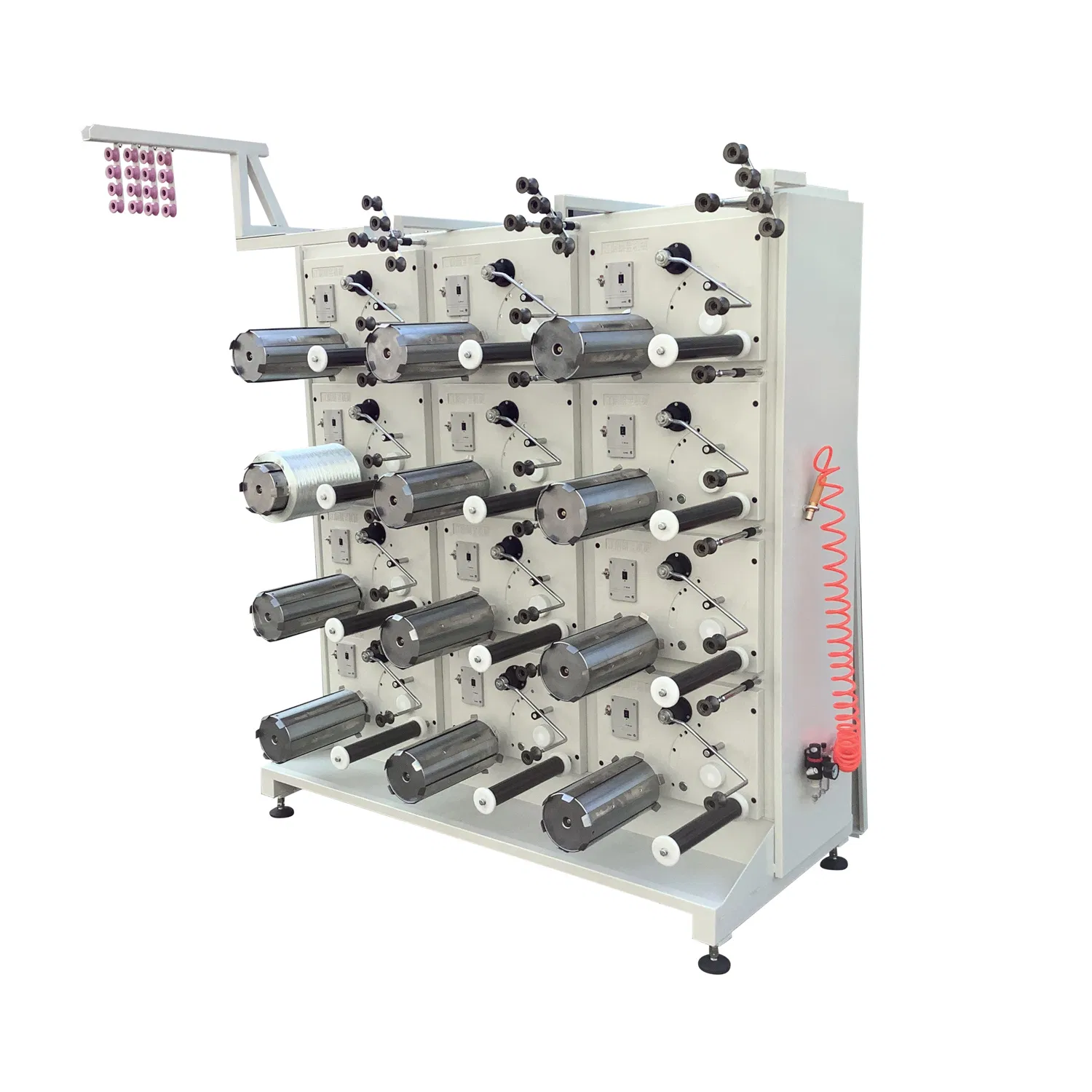

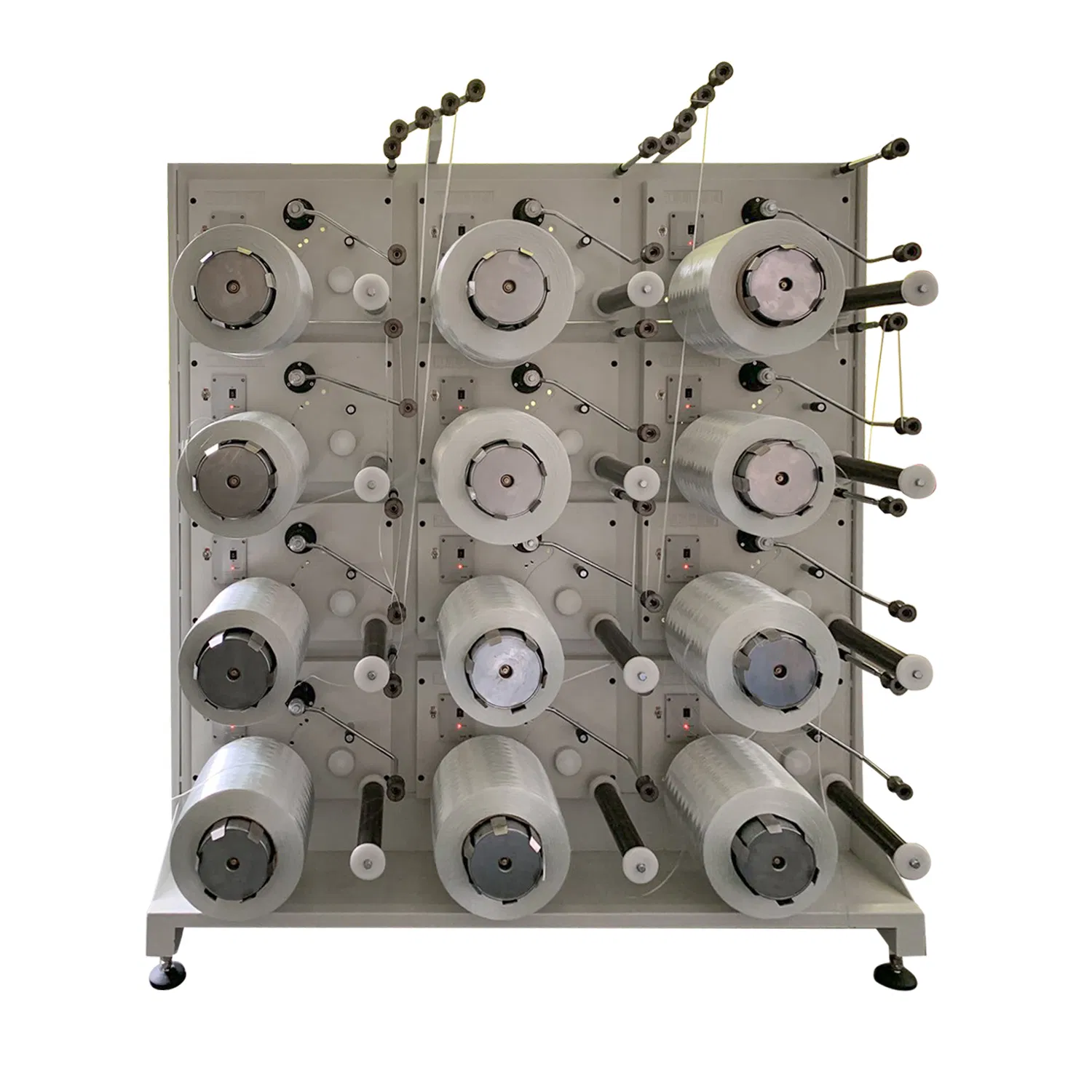

Coverting Yarn Fiber Rewinding System

Customization:	Available
After-sales Service:	Support Online
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

LY-300mm

Applicable Goods

Bobbin

Type

Cantilevered Wrapping Machine

Driven Type

Electric

Application

Electrical & Electronics, Machinery

Automatic Grade

Manual

Inclusion Degree

Half Winding Machine

Structure

Cantilevered Winding Machine

Film Frame Structure

Mechanical Stretch

Series

R Series - Cantilever Winding Machine

Winding Way

Coverting Winding

Ribbon Like Filament

1-4mm

Winding Speed

10-150m/Min

Delivery Time

40 Days

Transport Package

Export Wooden Case

Origin

China

Production Capacity

3000 Sets/Year

Product Description

The High-speed Filament Winder is a cutting-edge winding machine designed for various industries such as health, medicine, decoration, protection, electronics, textiles, and cables. It offers high-speed, high efficiency, and high-quality winding capabilities.

Key Features:

✓Novel design

✓High yield rate

✓Uniform tension

✓Simple operation

✓Low energy consumption

Advantages:

Utilizes variable frequency control

4 mm steel plate panel for precision and strength

Compact size and lightweight

Easy maintenance and reduced noise

Improved safety with reasonable brake position

Enhanced tension control with higher sensitivity

Applications:

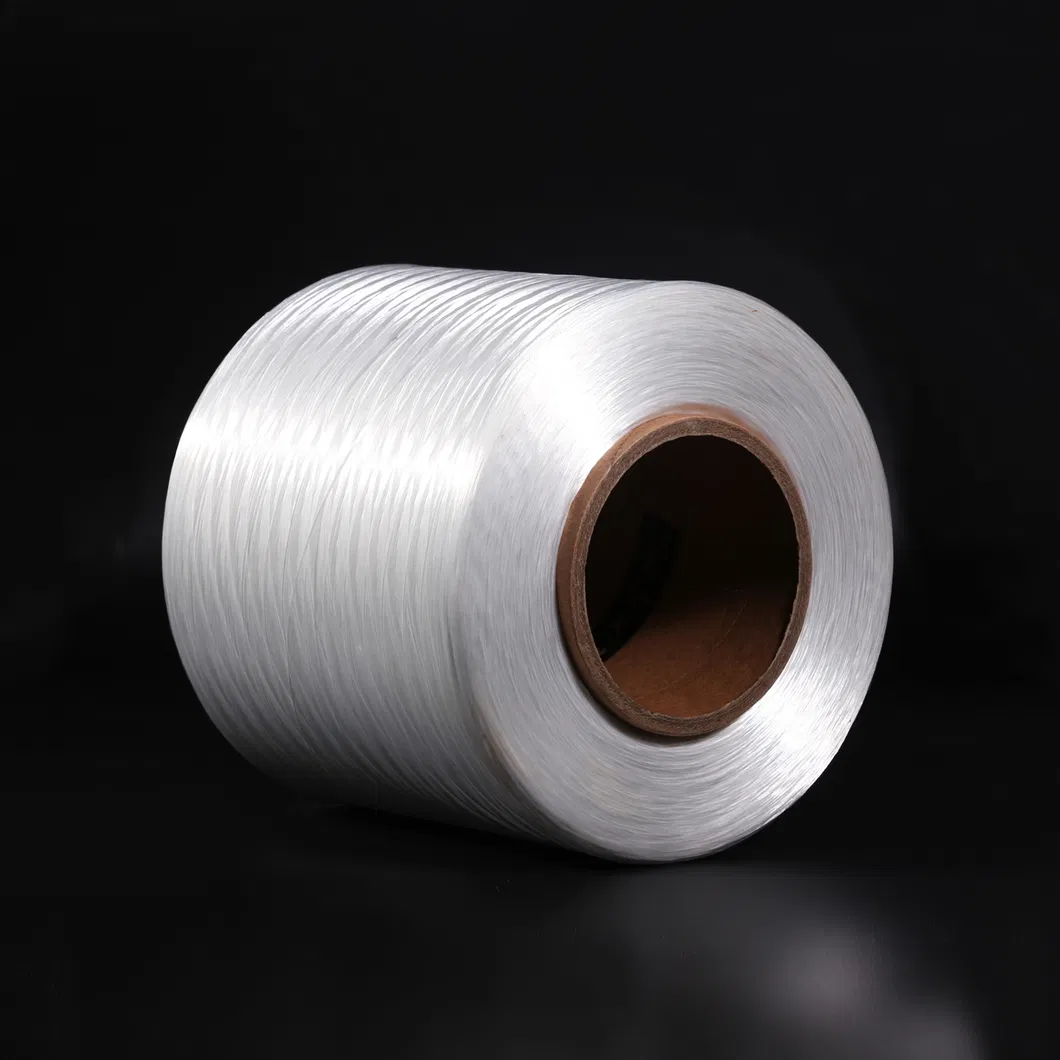

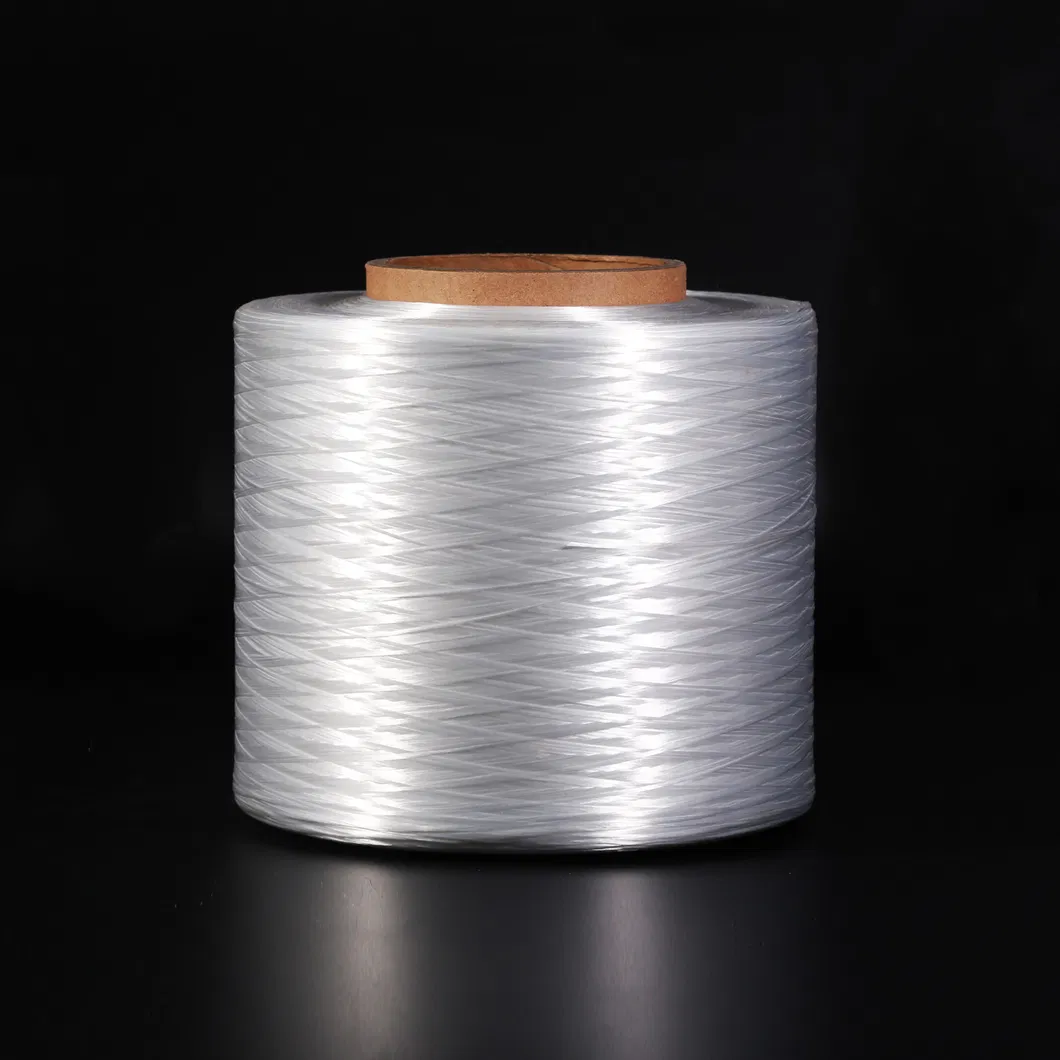

Perfect for high-speed ribbon-like plastic filament winding, chemical fiber winding, and various monofilament applications.

Basic Tech Parameter

Power Supply	380V 50/60HZ
Drive	Frequency-Controlled

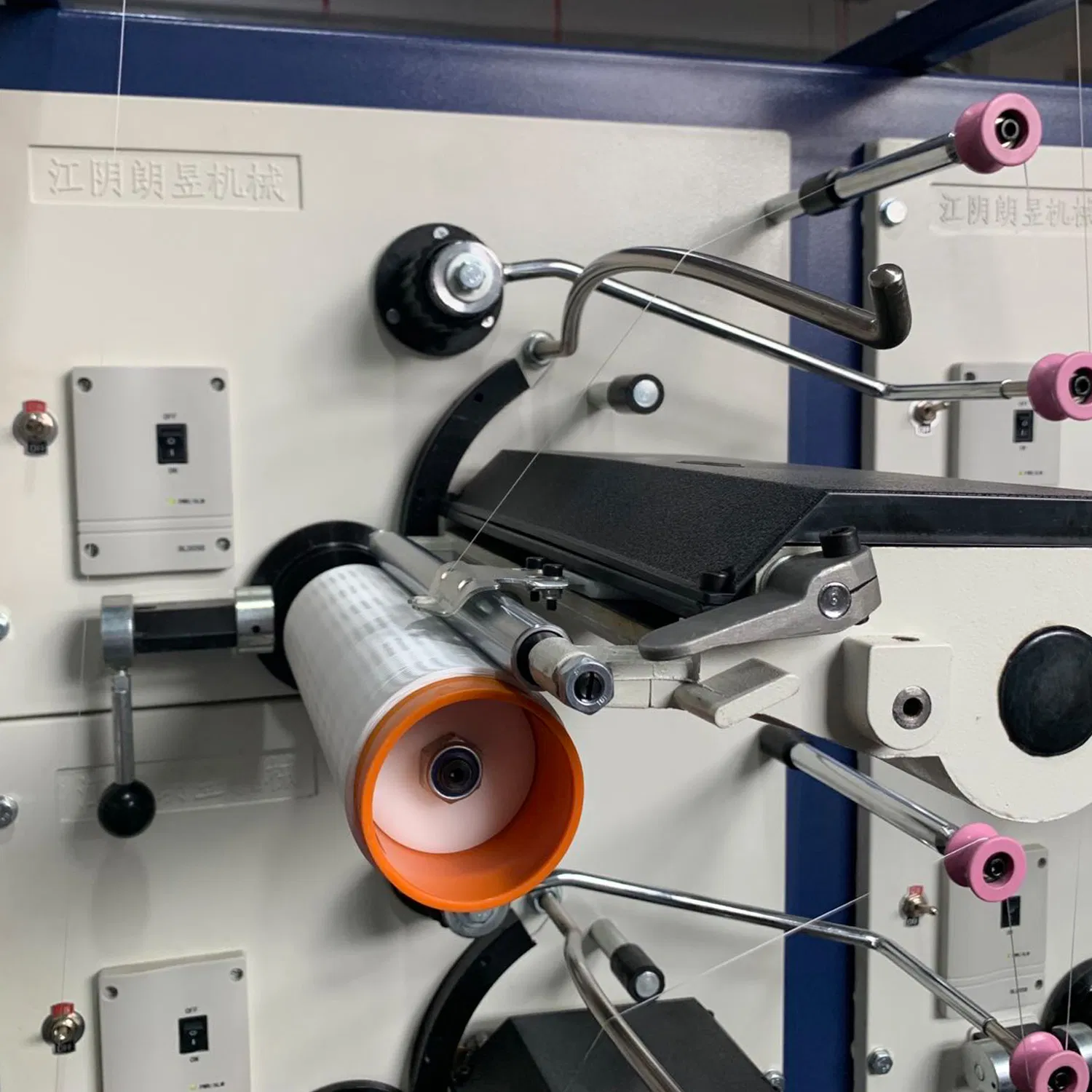

Tension	Dancer Arm
Traverse length	200/254mm or other size
Max.Dia.	200mm
Take-up bobbin	ID 76~77.5 * L 280mm
Winding speed	Constant speed of 50-150m/min (Digital HMI input)
Machine Color	White & Blue

Frequently Asked Questions

Q1: What materials can the High-speed Filament Winder process?

It is ideal for high-speed ribbon-like plastic filaments, chemical fiber winding, and various monofilament applications across sectors like electronics and textiles.

Q2: How is the winding speed controlled?

The machine uses a digital HMI for inputting constant speeds ranging from 50 to 150m/min, supported by a frequency-controlled drive.

Q3: Does the machine offer consistent tension?

Yes, it features a dancer arm tension system that provides high sensitivity and uniform tension throughout the winding process.

Q4: What are the maintenance requirements?

Thanks to its novel design and 4mm steel plate panel construction, the machine is compact, durable, and designed for easy maintenance with reduced noise levels.

Q5: What is the power specification for this model?

The standard power supply required is 380V at 50/60HZ, suitable for industrial applications.

Q6: Is the winding traverse length customizable?

Standard traverse lengths are 200mm or 254mm, but other sizes can be customized to meet specific production needs.
