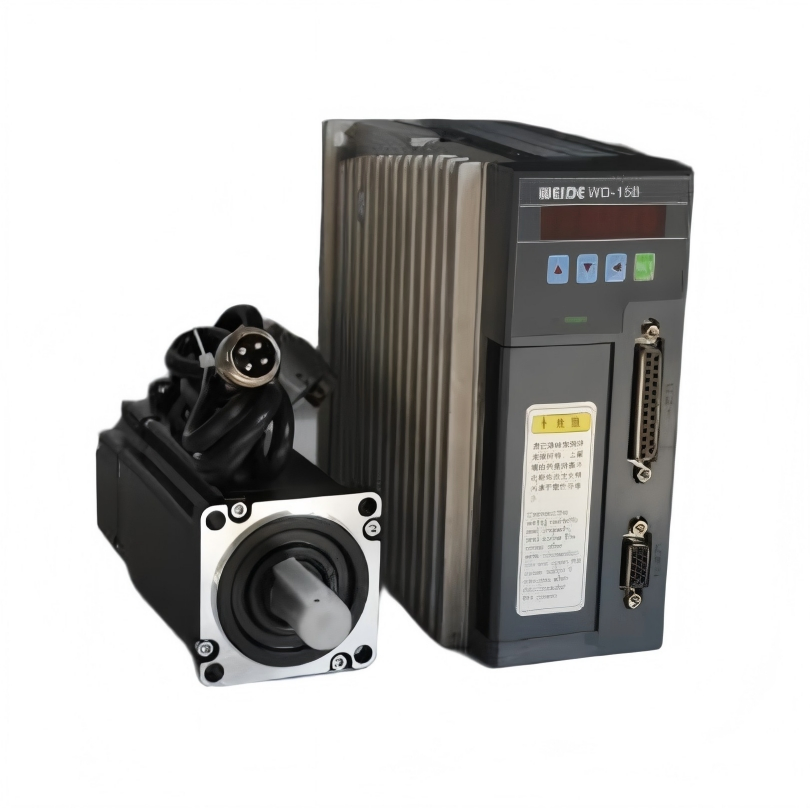

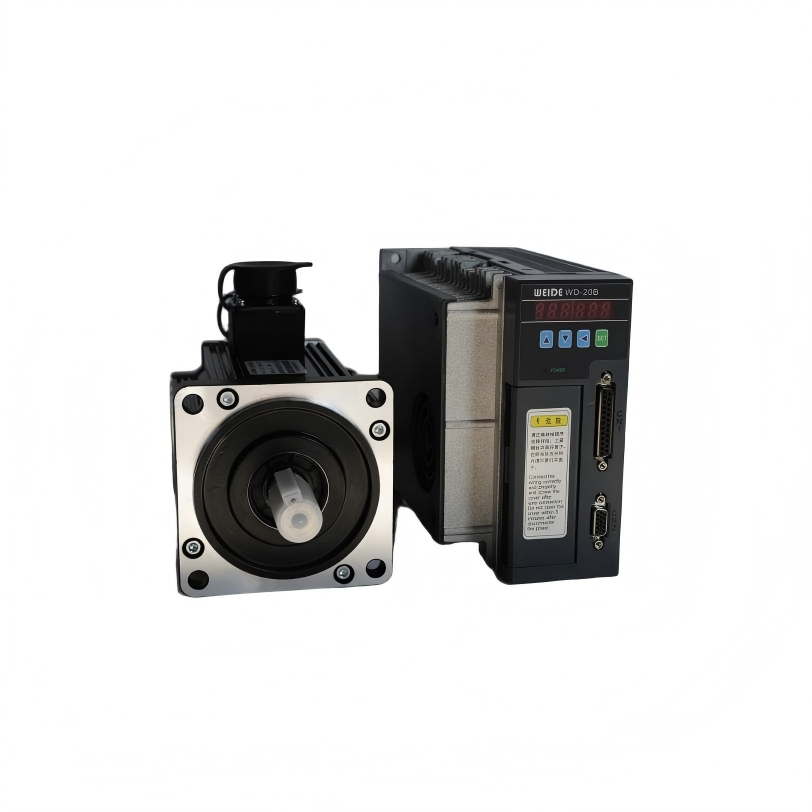

2.7kw Advanced Pid Algorithm AC 380V Industrial Servo System Without Brake

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Model

2.7kw

Mathematical Model

Linear

Signal

Continuous

Function

Automatic Control, Protection

Certification

CCC, ISO: 9001, CE

Condition

New

Material

Aluminum Alloy

Input Power

Single Phase L1, L2/Three Phase L1, L2, L3 AC220V

Control Type

PWM Sine Wave Vector Control

Control Mode

Position

Feedback Mode

2500PPR Incremental Encoder

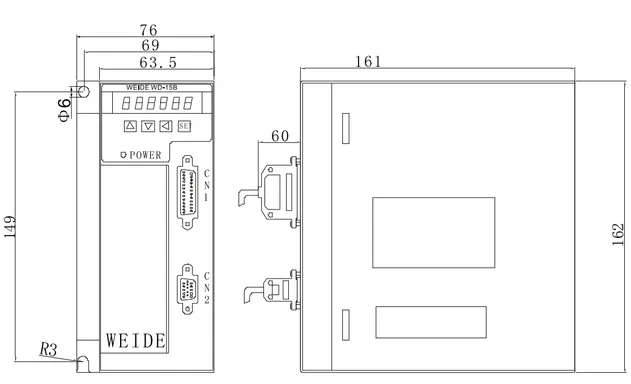

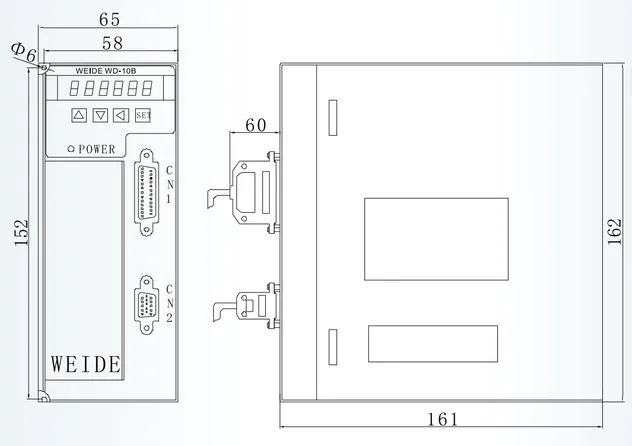

Dimensions

355*305*310 mm

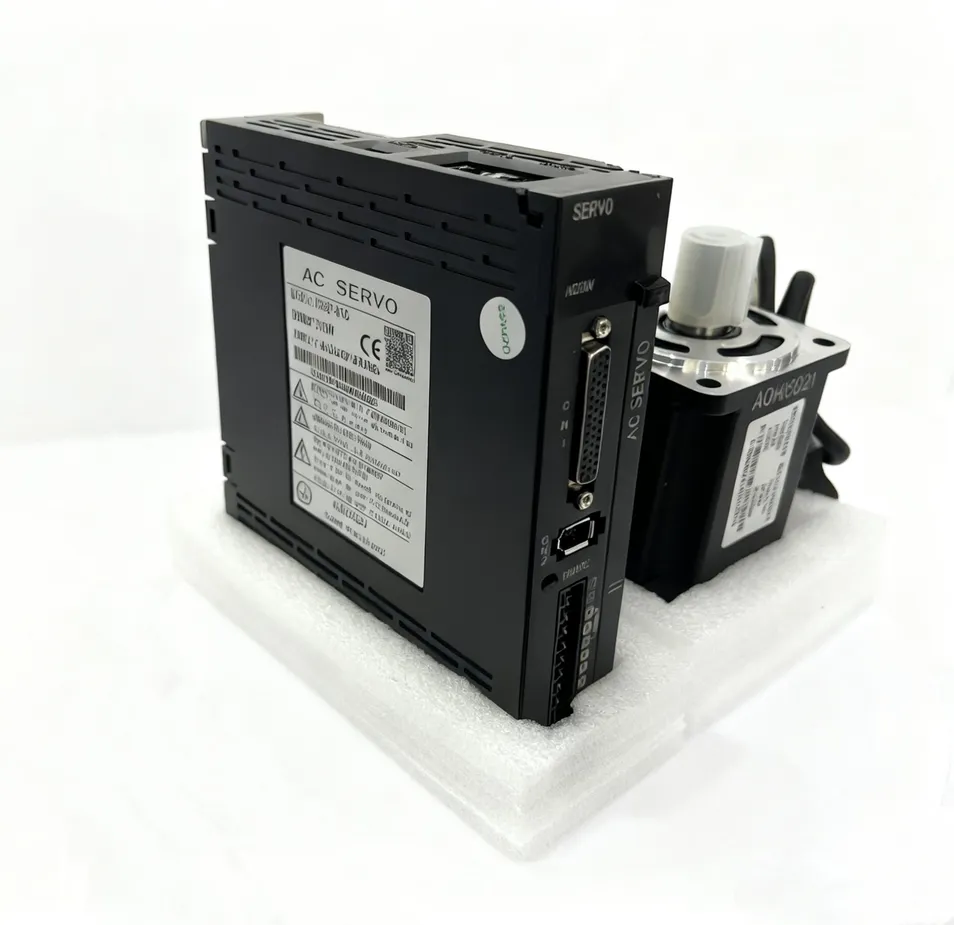

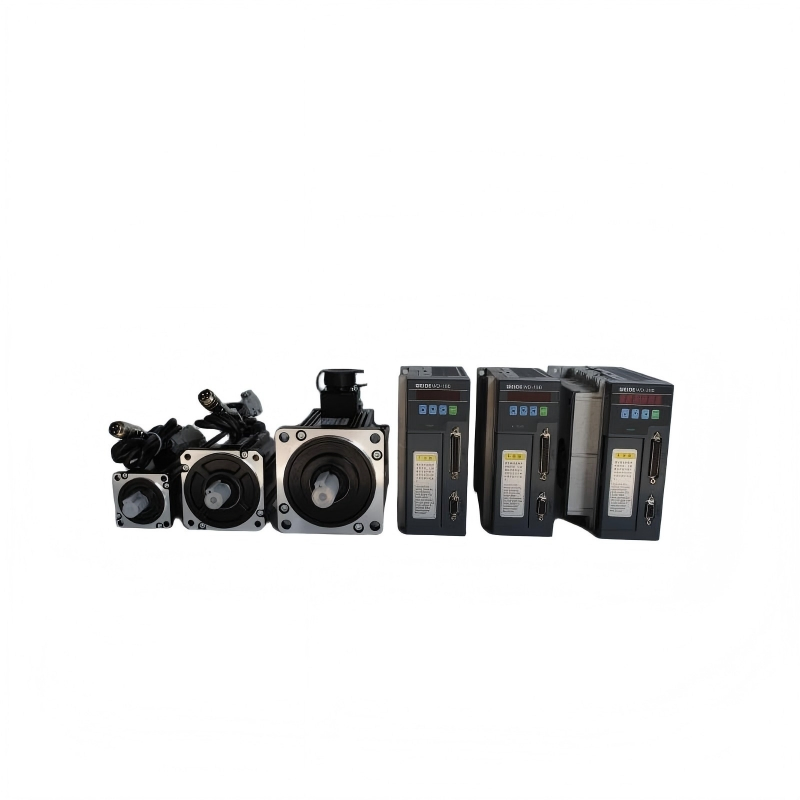

B2 Series Universal Servo Driver & Motor

Control modes: Position control, Speed control, Torque control, Internal speed control
Feedback: 2500PPR incremental; wire-saving encoder; 17-bit absolute encoder
Communication: RS485 Modbus communication
Output: Speed and torque output (0~5v analog)
Technology: Latest IPM with strong overload capacity and reliability
Versatility: Adaptive power from 0.1~5.5KW

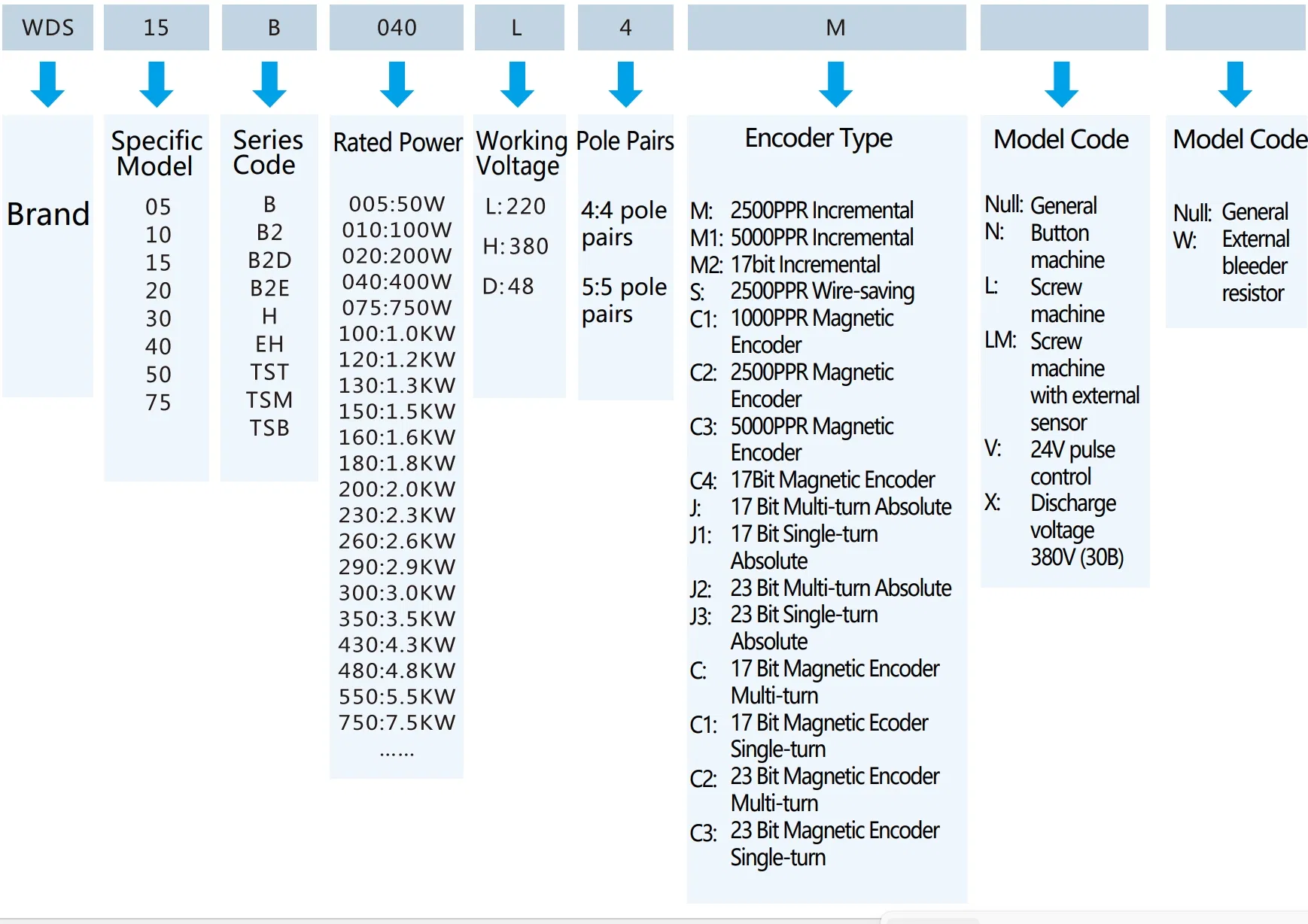

Model Naming & Specific Models

Model No.		10B	15B	20B	30B
Output Power (KW)		0.05-0.4	0.6-1.0	1.0-1.3	1.5-3.8
Rated Torque (N.m)		0.01-1.3	1.9-4	4-10	6-15
Input Power		Single Phase L1,L2/Three Phase L1,L2,L3 AC220V-15%~+10%
Control Mode		PWM sine wave vector control
Feedback Mode		2500PPR incremental encoder
Digital Input		SRV-ON/A-CLR/CCWL/CWL/TCCW/TCW/E-STOP/Electronic Gear/Position Deviation Clear
Protection Function		Overspeed, overvoltage, overcurrent, overload, abnormal braking, encoder abnormality, position error, etc.
Features	Speed Respond	>400Hz
	Speed Fluctuation	<±0.03%(load 0~100%)
	Speed Regulation	1:5000
