| Type | LT Water Tank Type Metal Drawing Machine |
| Usage | Wire |
| Metal Material | Steel |
| Outlet Diameter | 0.8mm |
| Max. Inlet Wire Dia. | 2.2mm |
| Block Dia. | 297mm |
| Max. Number of Block | 15 |
| Certification | ISO, SGS |
| Key Selling Points | Long Service Life |
| Voltage | 220V/380V/415V/440V/(Customized) |
| Motor Power | 22kw+2.2kw |
| Drawing Speed | 12 M/S |
| Wire Material | Low Carbon Steel Wire |
| Control Method | Touch Screen |
| Braking | Electronic Brake |

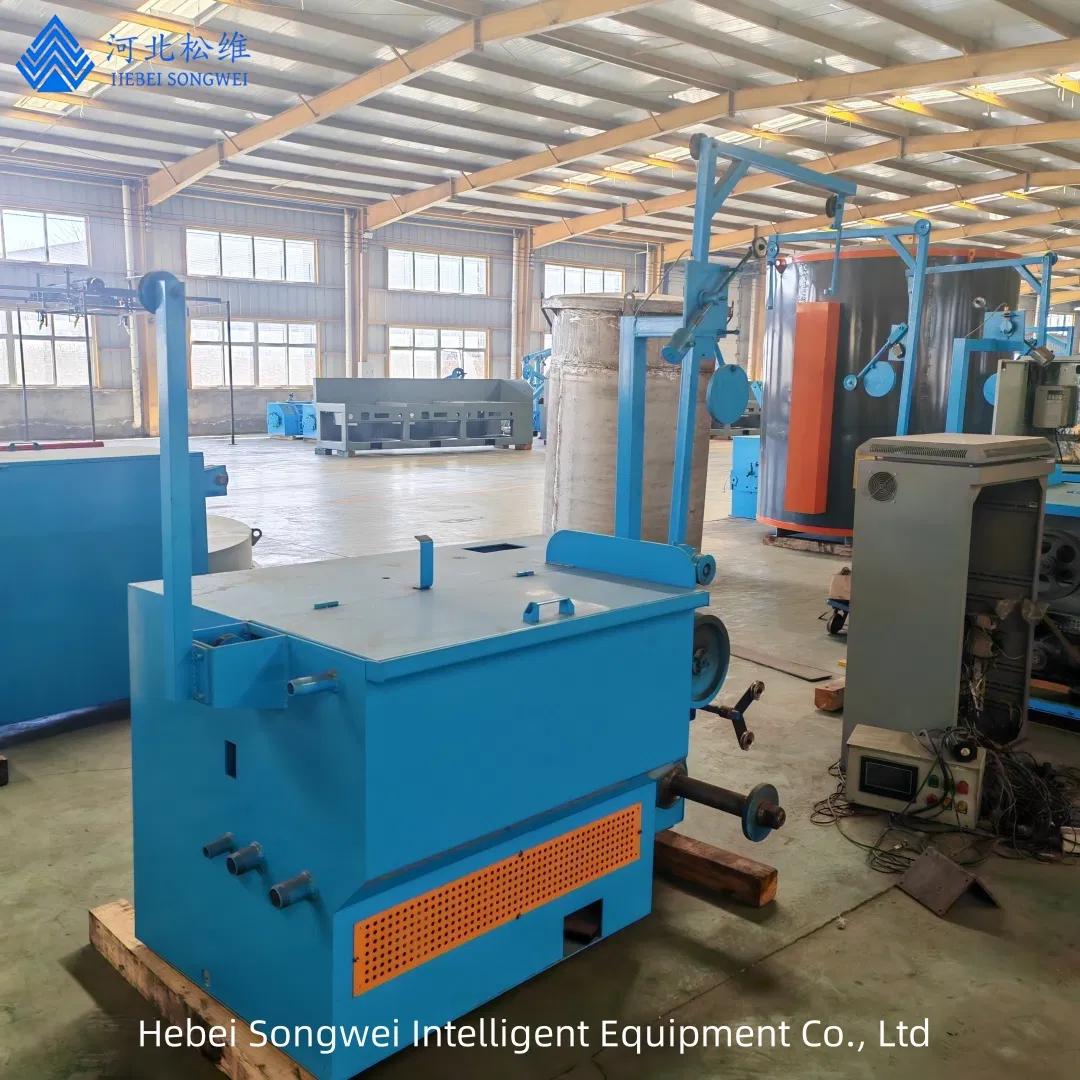

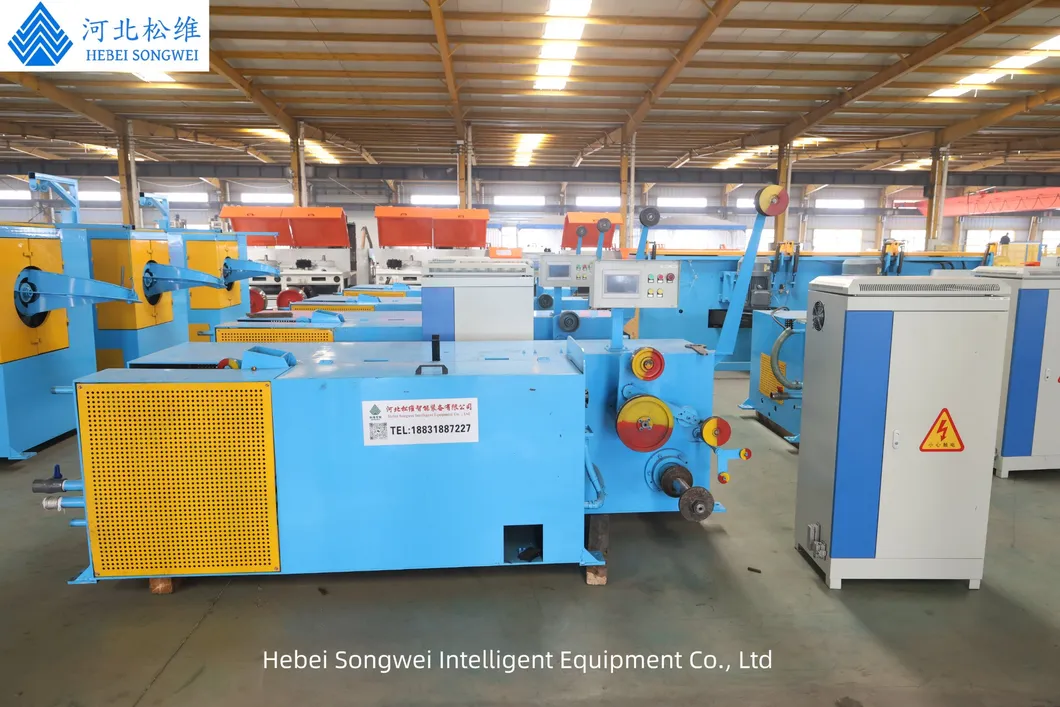

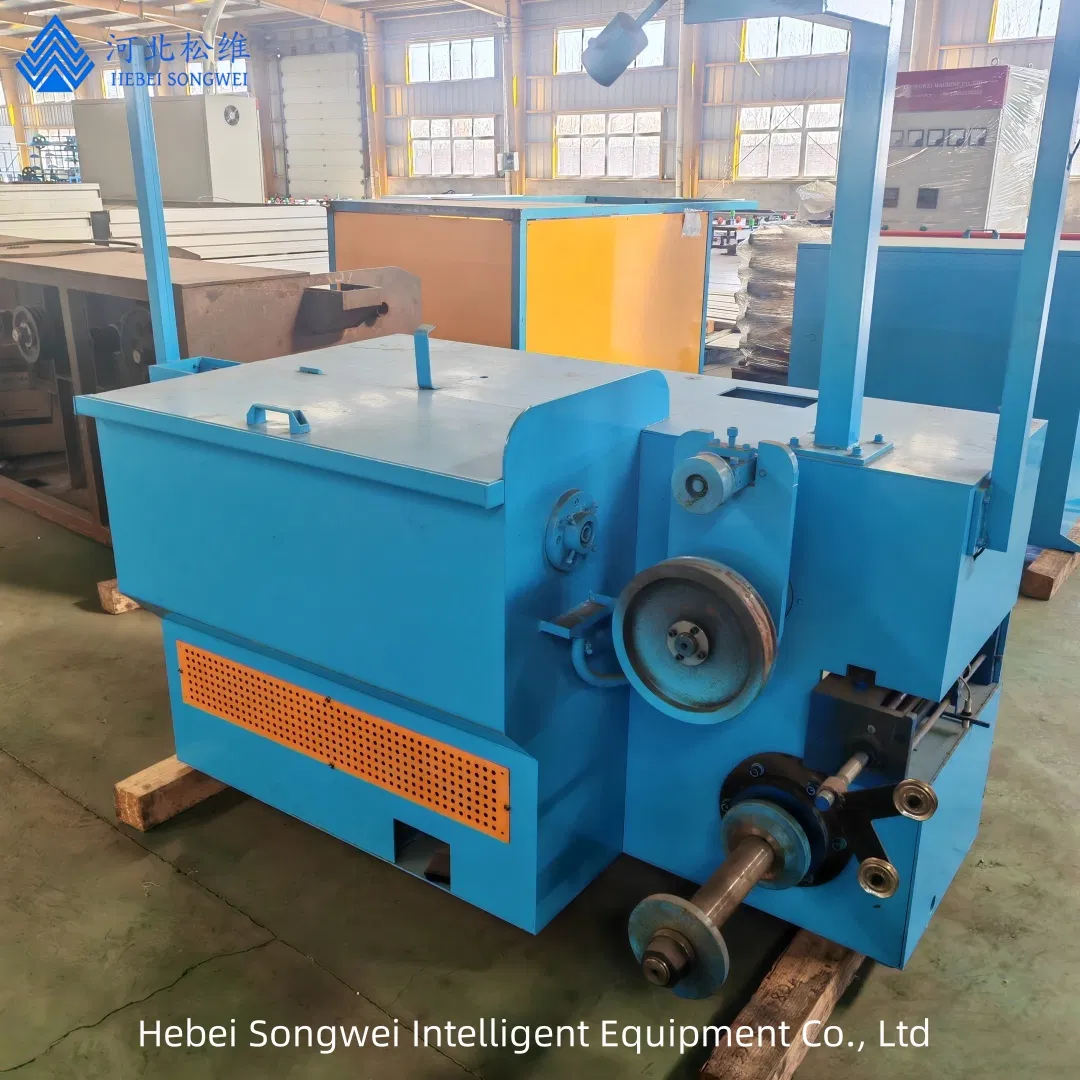

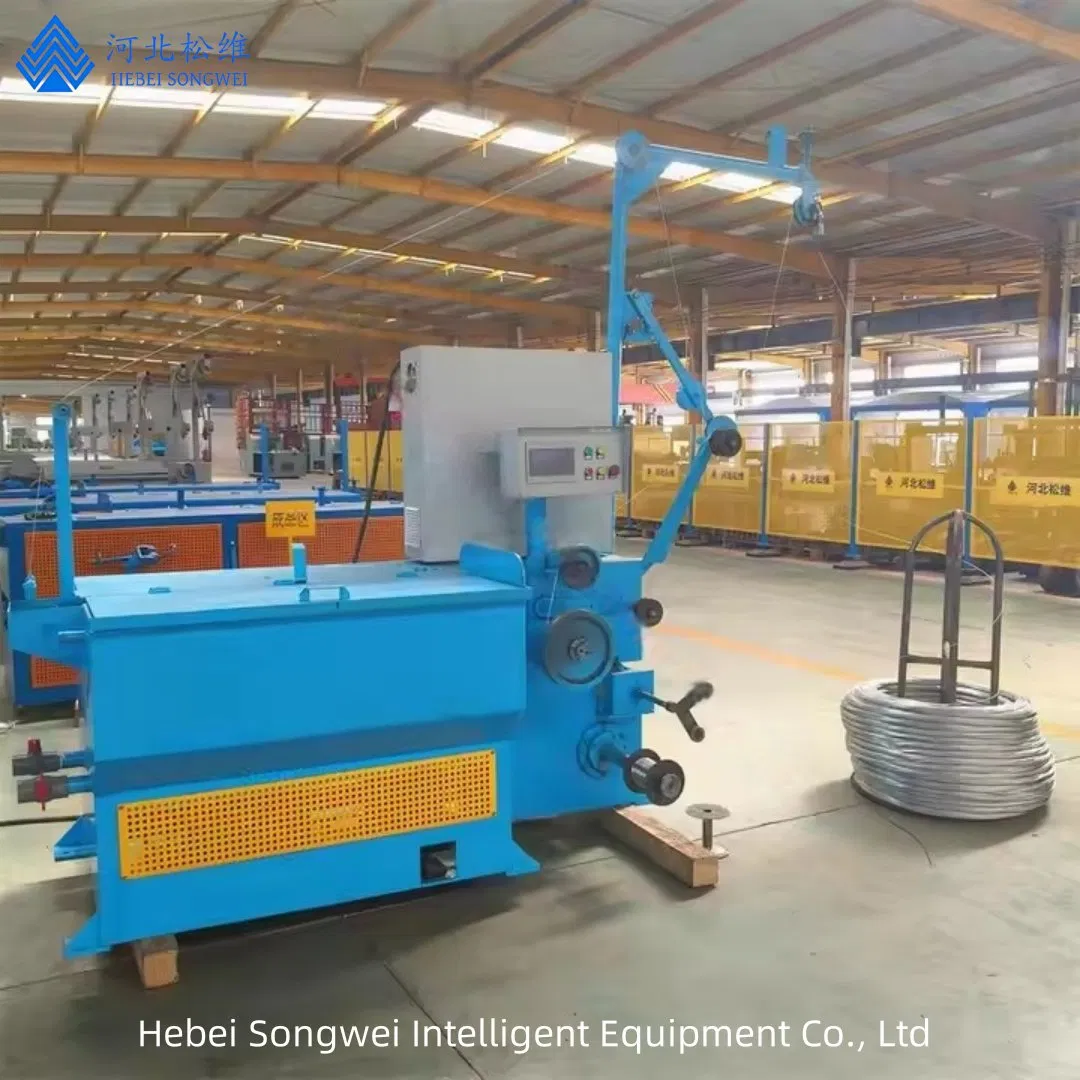

Wet type water tank drawing machine used for producing binding wire
The water tank type wire drawing machine is a small continuous production equipment composed of multiple wire drawing heads. By gradually pulling, the pulling head is placed into the water tank, eventually pulling the steel wire to desired specifications. The process is precisely controlled by the mechanical speed difference between the main shaft and the lower shaft.
Its biggest advantage is the use of a customizable spool wire take-up machine, meeting diverse production needs. The machine can also be equipped with a separate trunk wire coiler.
| Wet type water tank drawing machine | |
|---|---|
| Incoming wire diameter | 2.0-2.2 mm |
| Outgoing wire diameter | 0.8-1.0 mm |
| Max speed | 720 m/min |
| Number of drawing molds | 11 |
| Tower wheel | Alloy |
| Main motor | 22 kw |
| Wire Take-up motor | 2.2 kw |
| Wire Take-up mode | Wire coils or wire spool |
| Tension control | Swing arm |

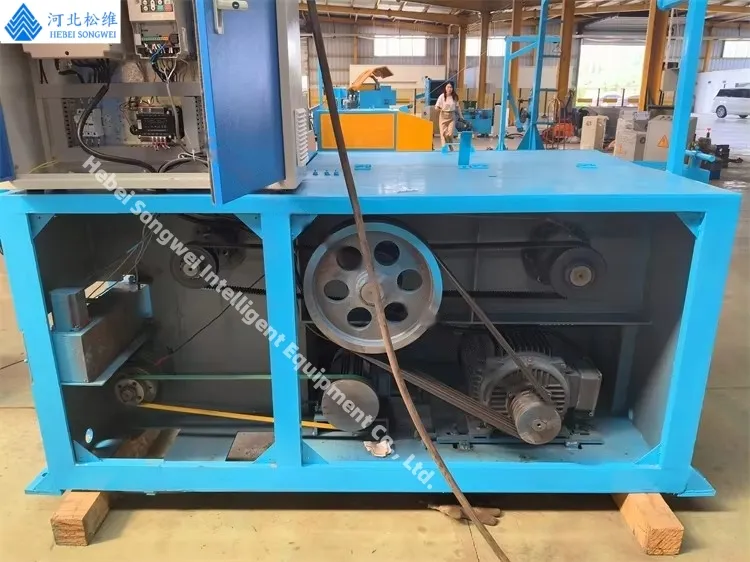

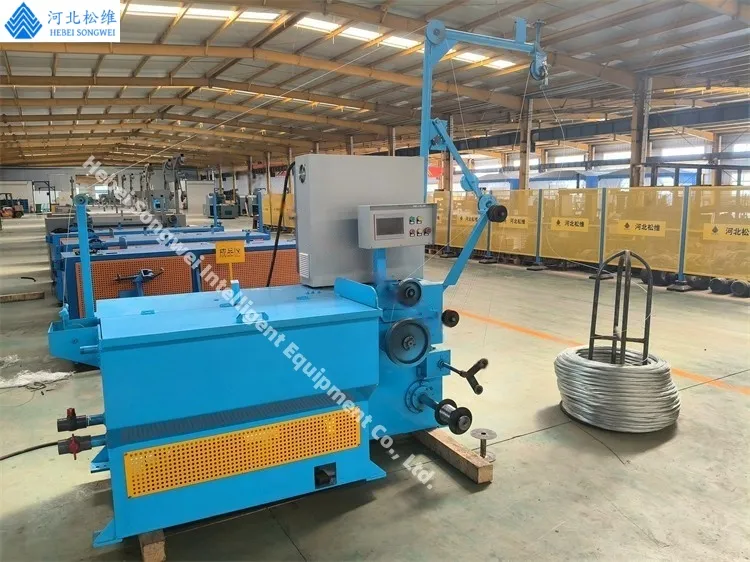

This machine adopts a spool wire take-up machine (spooler), and can be equipped with both a trunk wire coiler and a spooler. All vulnerable parts use well-known brands to ensure quality.

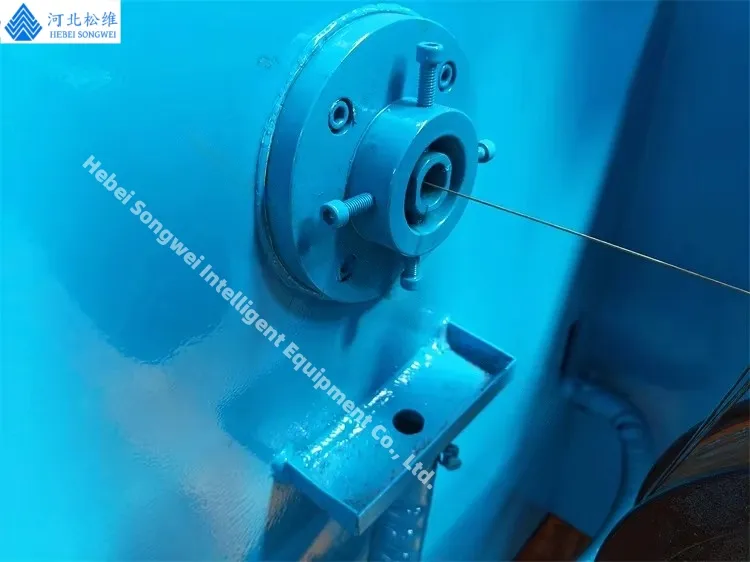

Water collection device: Collects soapy water via pipes to keep the workshop clean.

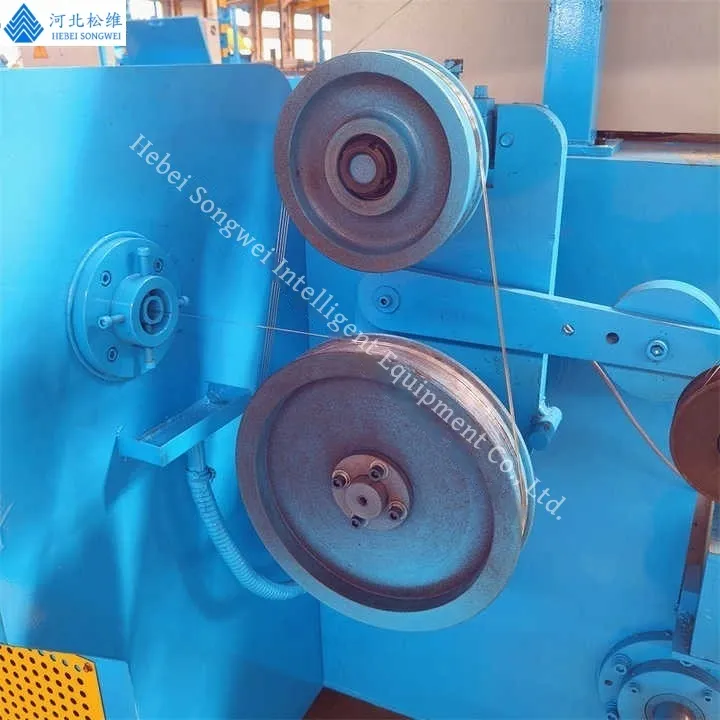

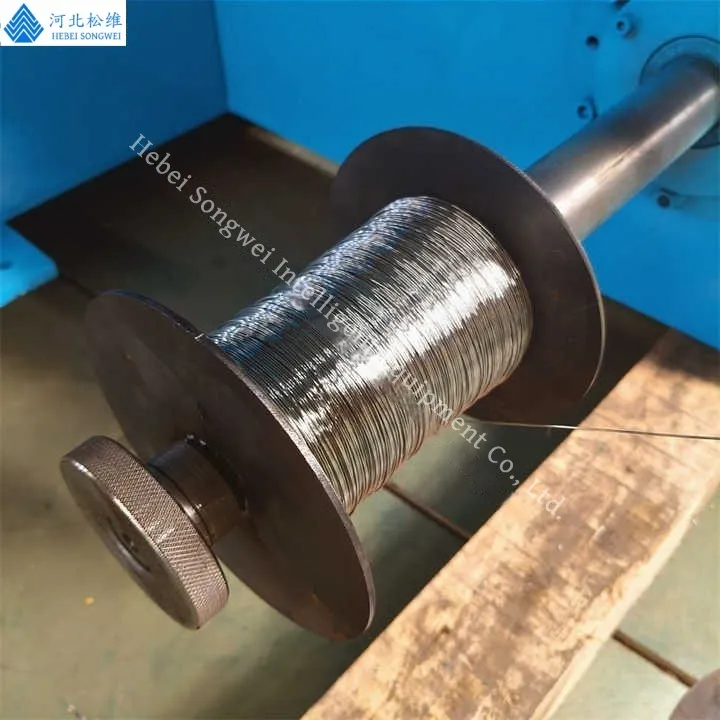

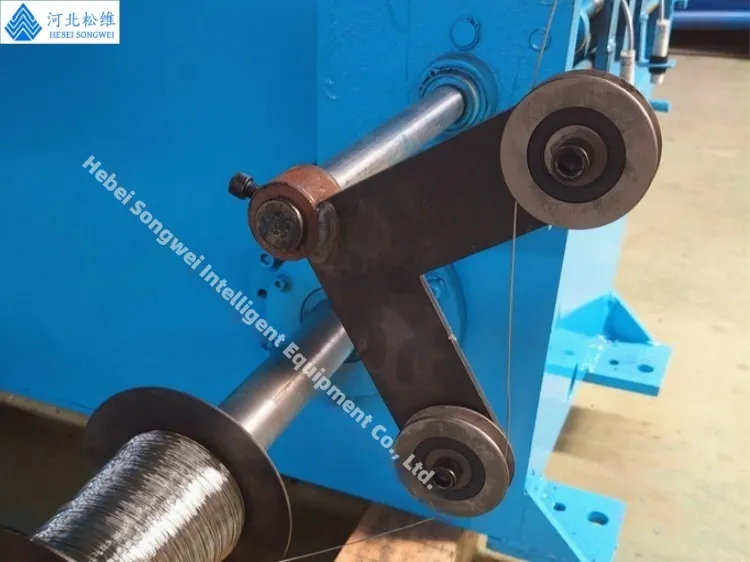

Traverse unit: Designed to ensure the wire spool is neat and beautiful at high speeds.

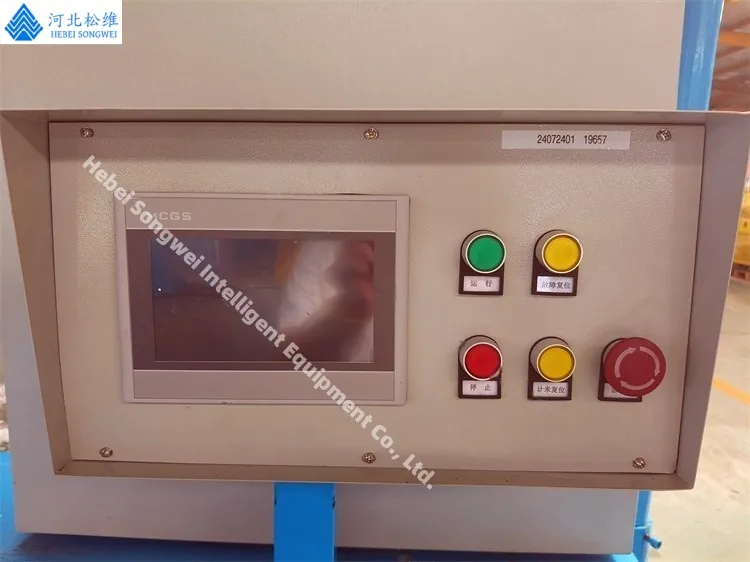

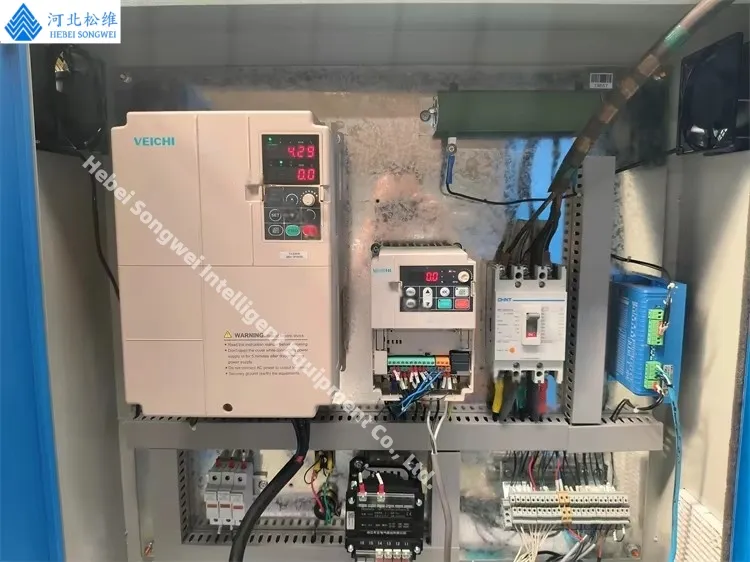

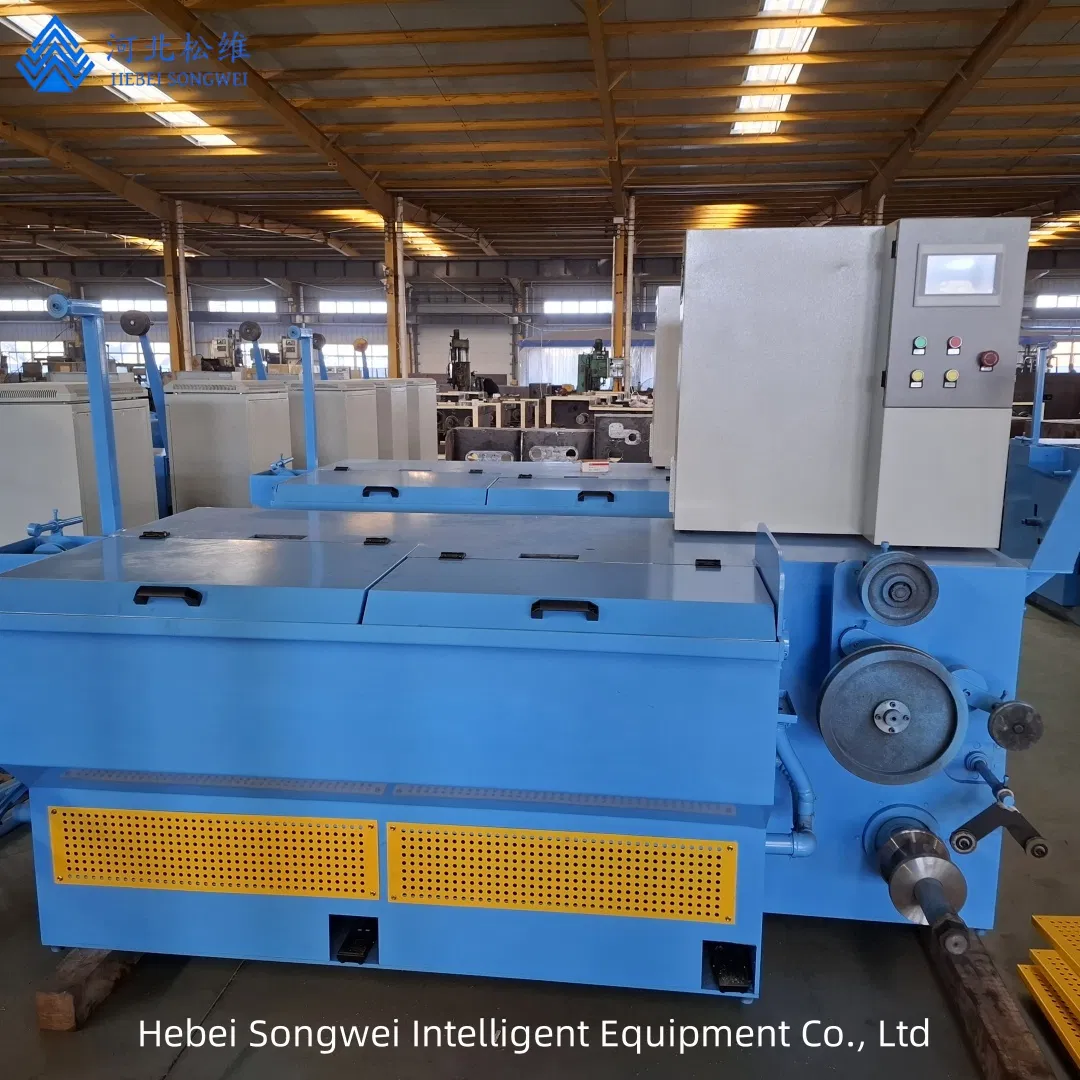

The electric box features high-quality frequency converters. The control system includes an emergency stop button and a dual-language (Chinese/English) touch screen for global convenience.

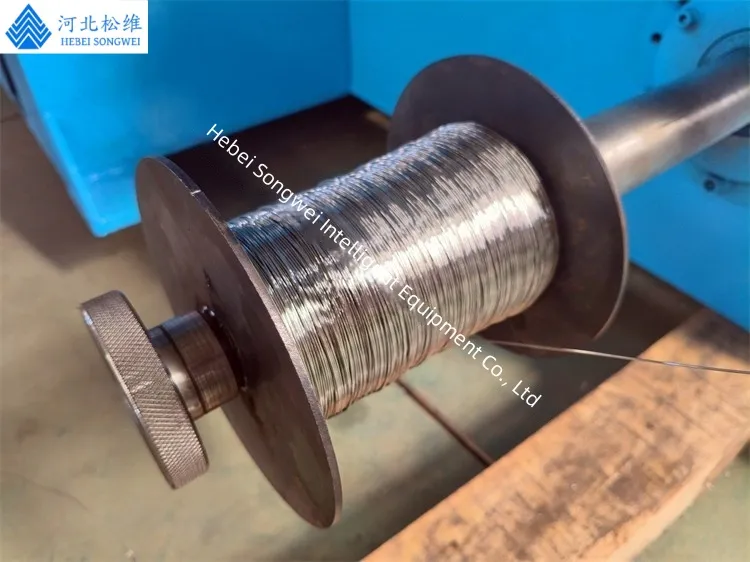

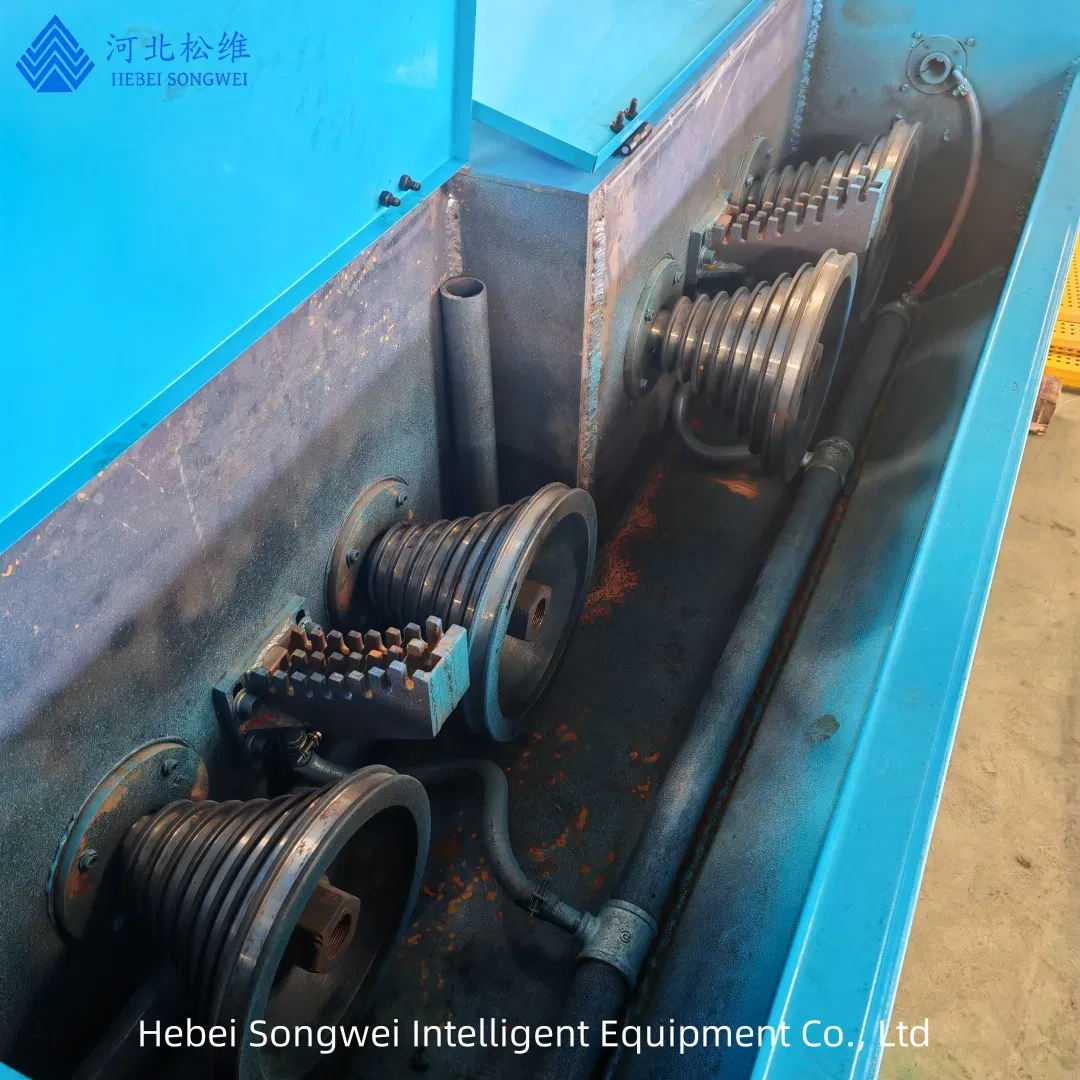

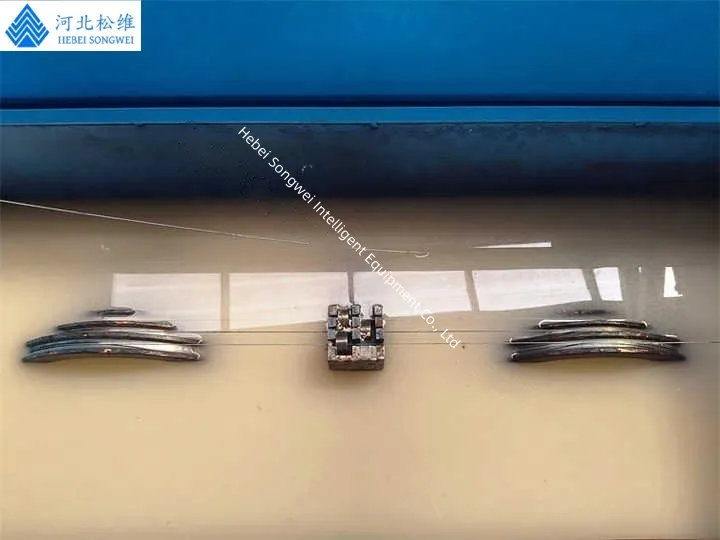

The alloy tower wheel structure supports up to 11 dies. Spool sizes are fully customizable based on customer requirements.

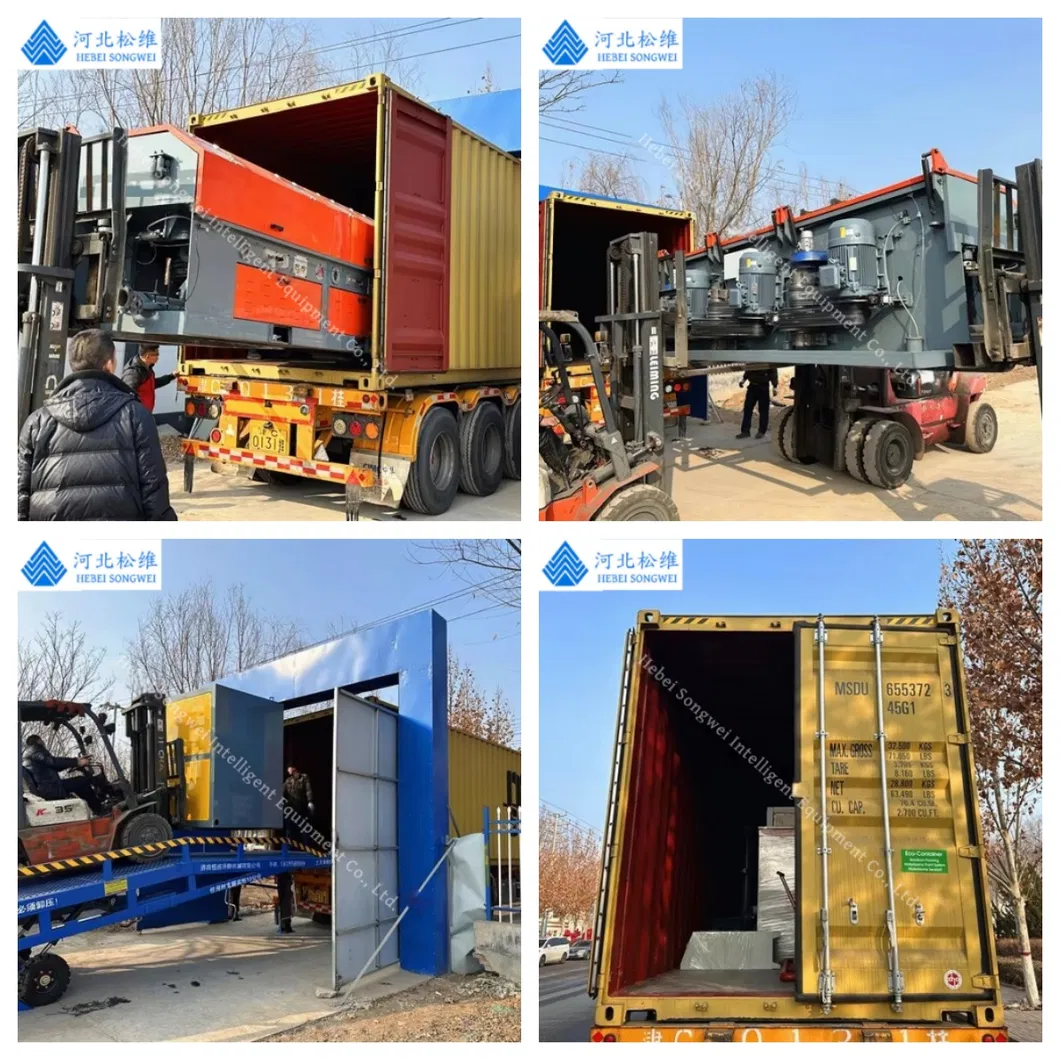

Package: Main machinery is protected with plastic film and secured in containers with steel wire. Small parts are packed in durable wooden cases.
Shipment: Full container booking or LCL arrangements are available based on equipment dimensions.

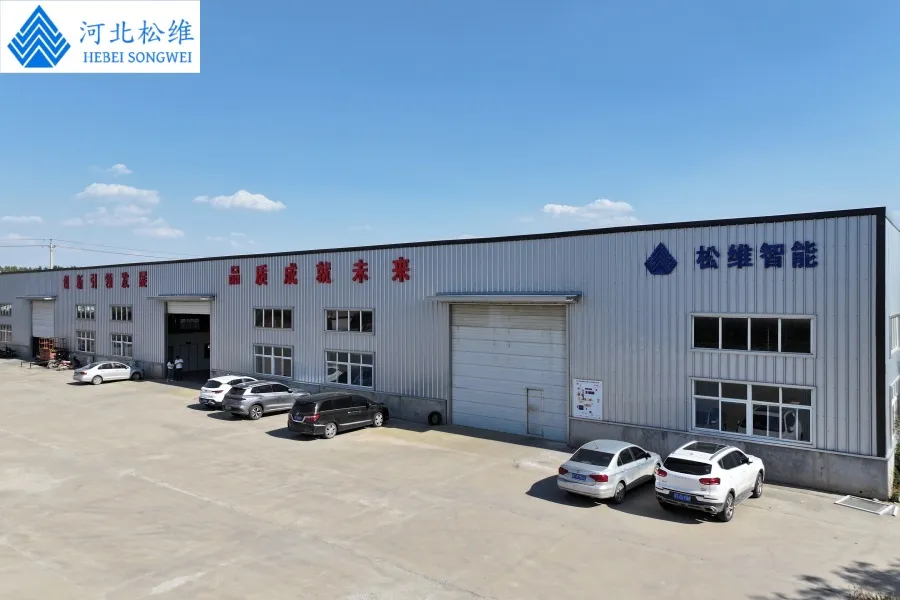

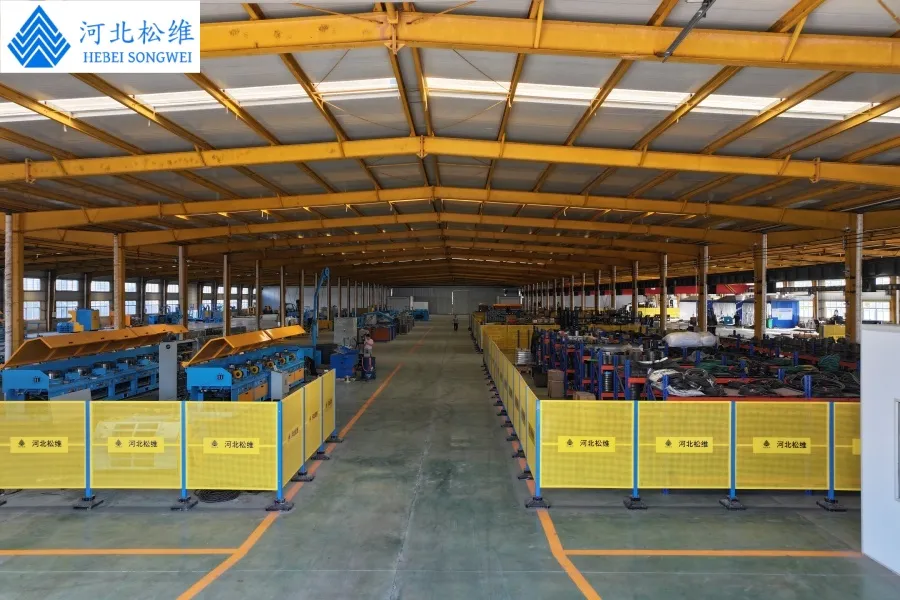

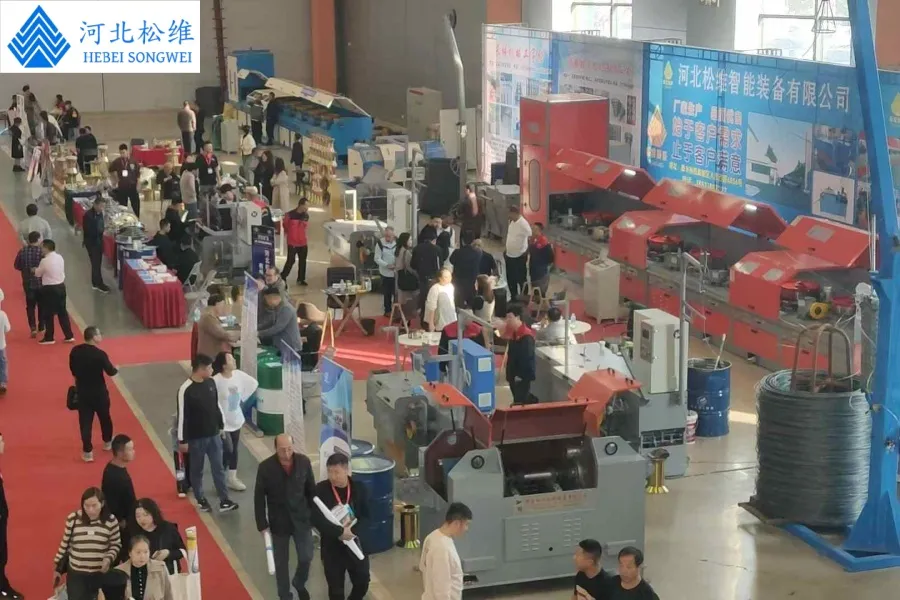

With over two decades of expertise since 2002, the facility spans 30,000 square meters across 8 specialized workshops. Advanced equipment including plasma welding and CNC lathes ensure processing accuracy and extended machinery service life.
A: We are manufacturers with a group of high-quality engineers and experts specialized in wire processing equipment.
A: We specialize in wire drawing machines, galvanizing lines, annealing industrial furnaces, and nail making machines.
A: We provide professional training for your employees to ensure smooth production and offer continuous after-sales technical support.
A: The warranty period is one year from the date of completion of mechanical debugging in the buyer's factory.
A: Yes, we can customize designs and accept customer sample requirements to meet specific production goals.
A: Please provide the wire material, inlet/outlet diameter range, and the intended use of the finished wire.
