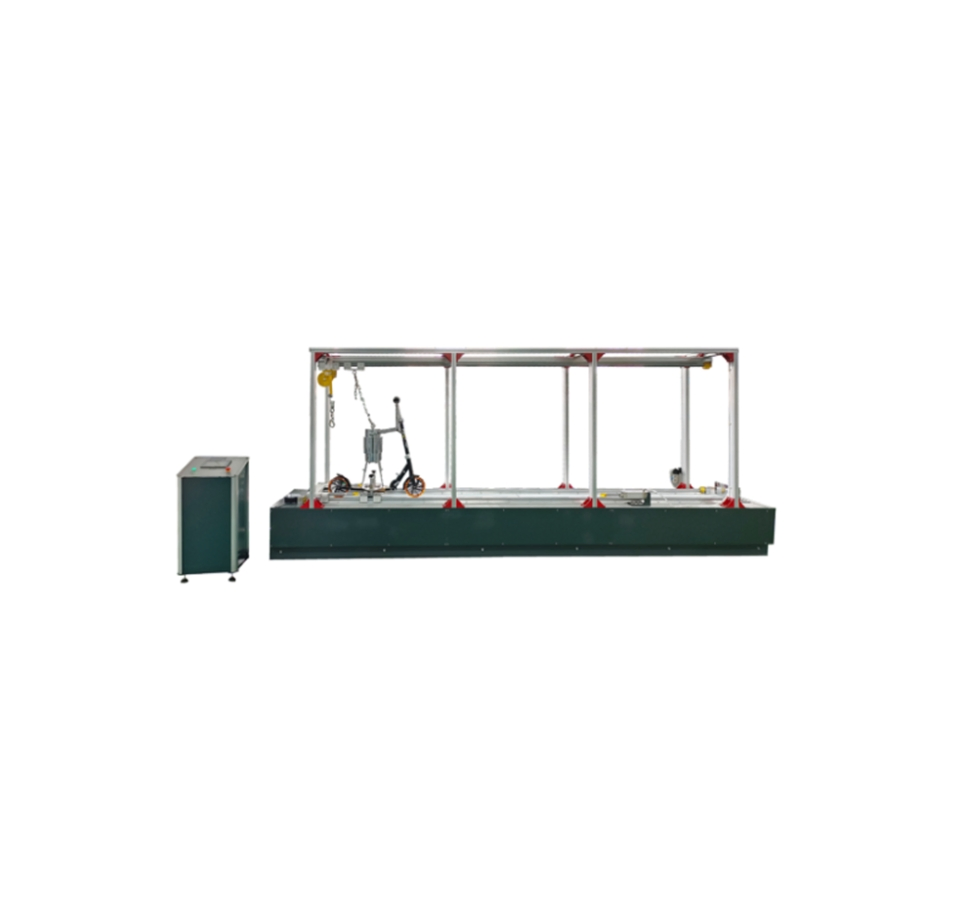

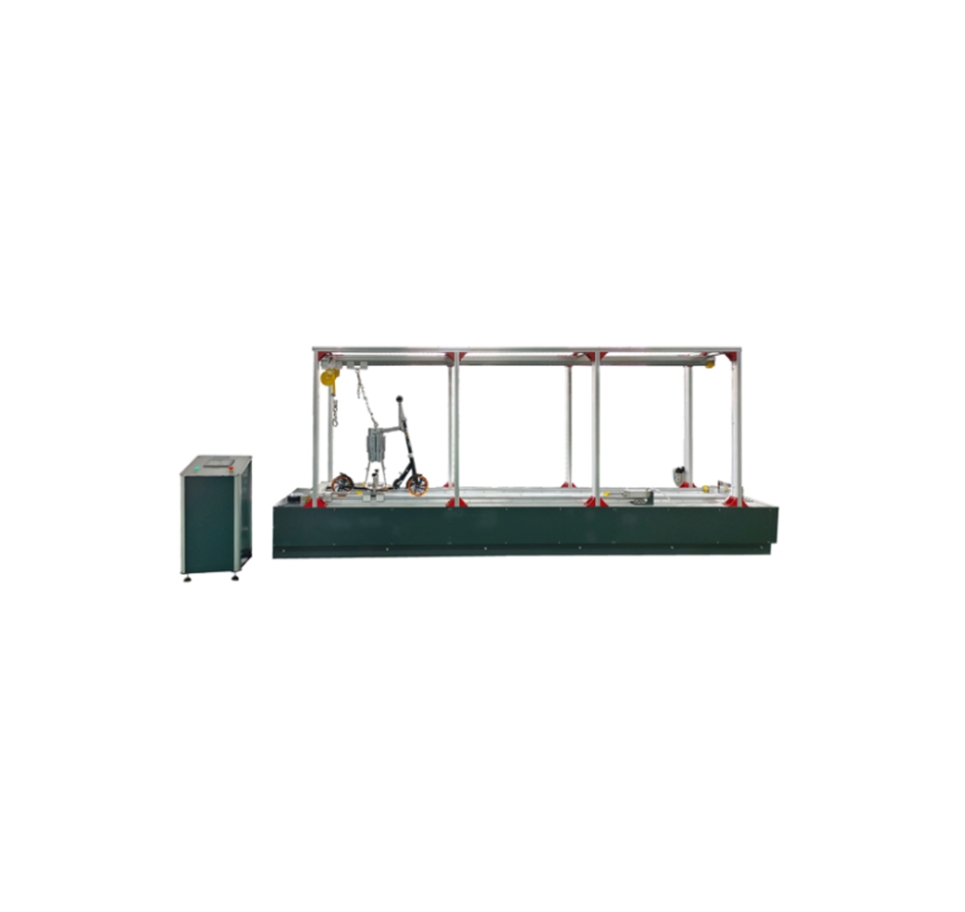

E-Scooter Waterproof, Dustproof, and Environmental Stress Test System

Customization: Available
After-sales Service: Yes
Warranty: 1 Year

Product Description

i

Basic Specifications

Model NO.
LT-HBXZ08
Max Diameter of Workpiece
<500mm
Mass Scope of Workpiece
<900kg
Type
Strength Testing Machine
Maxcapacity
<1000KN
Accuracy Grade
0.5
Load Way
Electronic Load
Loading Method
Static Load
Display
Digital
Control
Computer Control
Weight
100-500Kg
Power Source
AC220V
Oil Cylinder Position
Top
Transport Package
Wooden Case
Specification
4600*850*1950mm
Origin
China
HS Code
9031809090
Production Capacity
3000 Pieces/Year
📦

Packaging & Delivery

Package Size
480.00cm * 100.00cm * 240.00cm
Package Gross Weight
150.000kg

Product Description

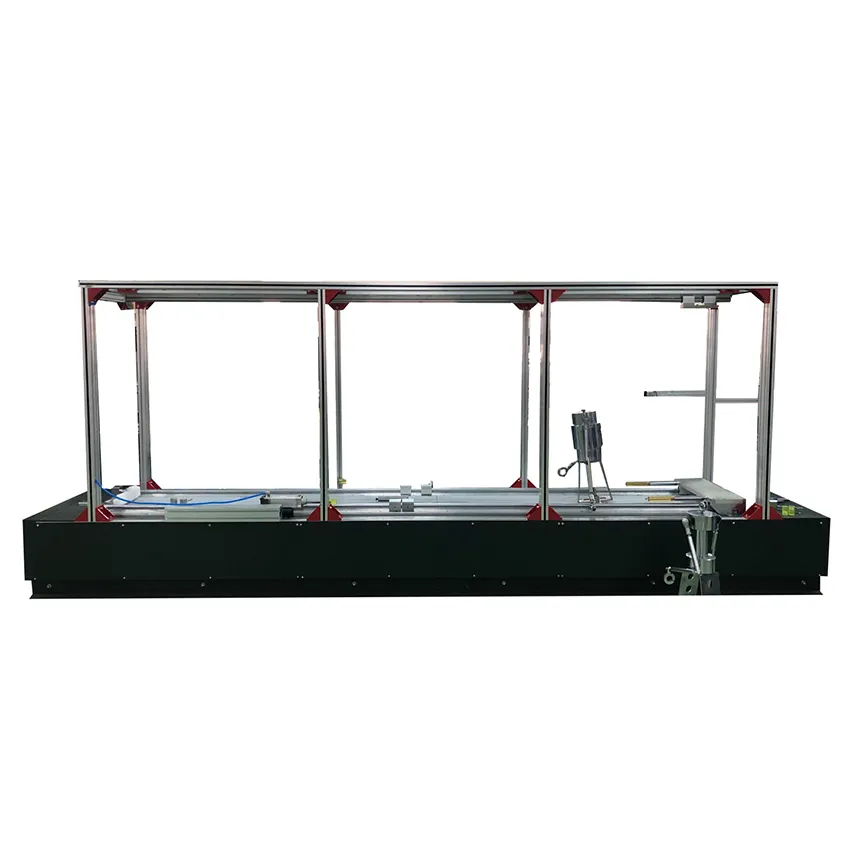

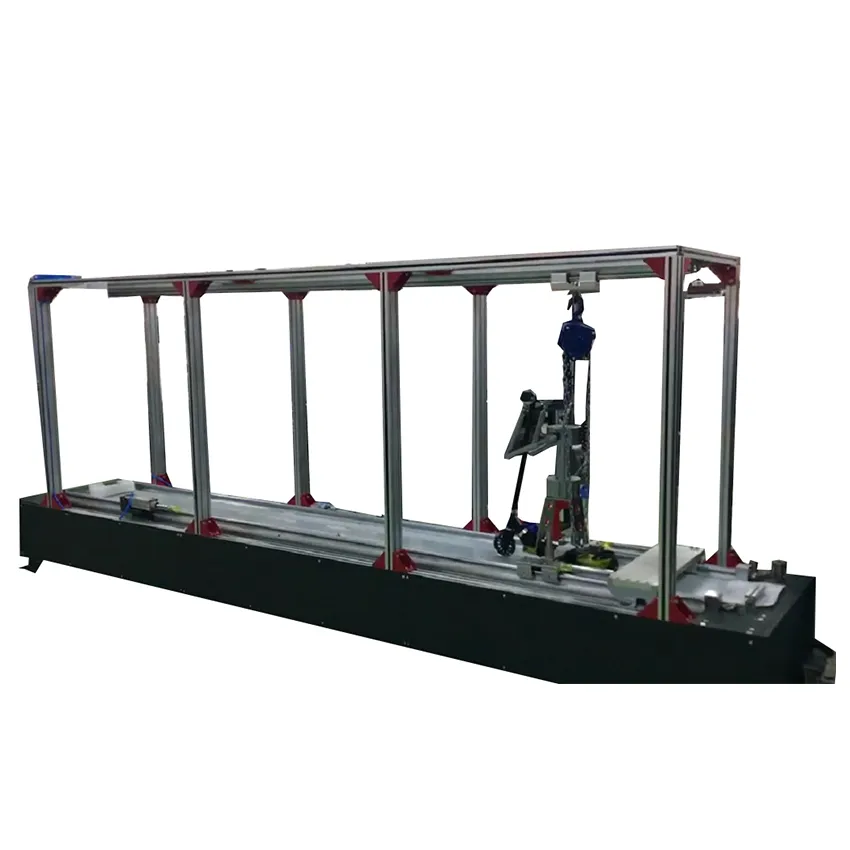

This machine is designed for the dynamic strength performance testing of scooters, simulating the stresses and strains that occur during actual usage. It evaluates the scooter's ability to withstand various forces, ensuring its structural integrity, durability, and safety under dynamic conditions. This is particularly important for ensuring that scooters can endure the impacts, vibrations, and loading forces they face during normal operation, from riding over bumps to sudden stops or turns.

By using this dynamic strength performance testing machine, manufacturers can guarantee that their scooters will perform reliably under a wide range of conditions, providing consumers with a durable, safe, and high-quality product.

Technical Parameters

1. Simulated arm weight: 2±0.02kg
2. The weight of the mat (including sand and straps) is 0.5±0.01kg
3. Load A: 50±0.5kg, load B: 25±0.2kg
4. Load plus the rated weight of 2 simulated arms and pads: 54.5kg±0.5kg (for toy scooters weighing 50kg for children); 29.5kg±0.5kg (toy scooter for children weighing up to 20kg)
5. Pad: Weight 4.8±0.2kg, height 250±25mm
6. Impact speed: 2±0.2m/s
7. Non-elastic step height: 50±2mm
8. The rest shall meet the provisions of relevant items in GB 6675.12-2014 and other standards.
?

Frequently Asked Questions

What is the main application of this machine?
The machine is specifically designed for dynamic strength performance testing of scooters, simulating real-world stresses to ensure structural integrity and safety.
What testing standards does this equipment comply with?
It meets the provisions of GB 6675.12-2014 and other relevant international strength testing standards for toy and electric scooters.
Can it test both adult and children's scooters?
Yes, the machine includes adjustable load settings (54.5kg for 50kg children's scooters and 29.5kg for 20kg scooters) to accommodate different product categories.
What is the accuracy and control method?
The machine features an accuracy grade of 0.5 and is operated via a computer control system with a clear digital display for precise measurement.
What are the requirements for power and installation?
The system requires an AC220V power source. It is a top-positioned oil cylinder system with overall dimensions of 4600*850*1950mm.
How is the equipment protected during shipping?
The testing machine is professionally packed in a robust wooden case to ensure safety during domestic and international transportation.
