Basic Specifications
Communication Mode
Bluetooth Wireless Communication
Product Name
Car Wheel Alignment System with CCD Sensor
Language Support
5 Kinds (English, German, Russian, etc.)
Computer System
Windows XP, Windows 7
Power Supply
220V/50-60Hz/1pH
Vehicle Database
More Than 20,000
Product Overview

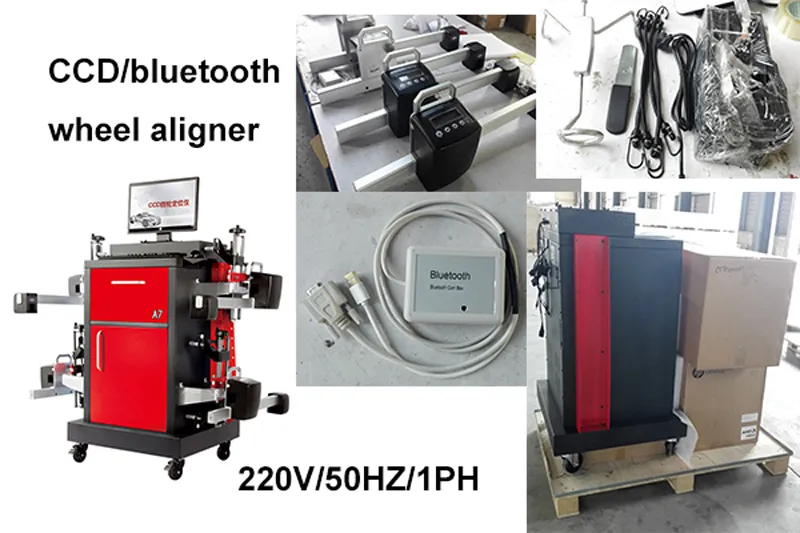

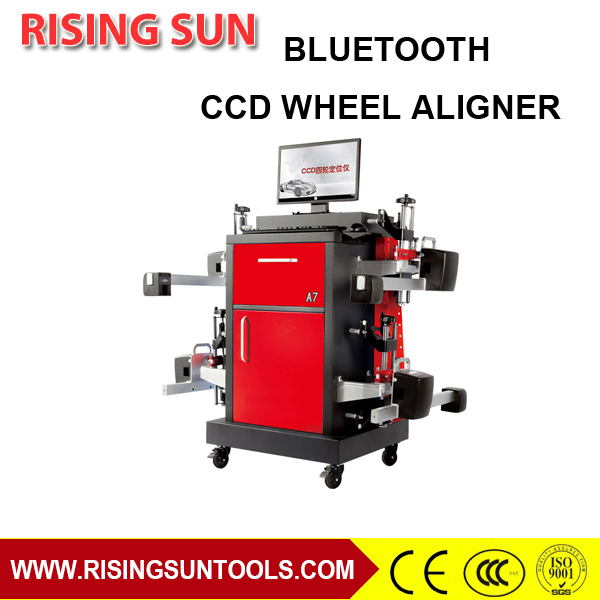

Car Wheel Alignment System with CCD Sensor
Wheel alignment, sometimes referred to as breaking or tracking, is part of standard automobile maintenance that consists of adjusting the angles of the wheels so that they are set to the car maker's specification. The purpose of these adjustments is to reduce tire wear, and to ensure that vehicle travel is straight and true. All new vehicles leave the factory with their alignment checked and adjusted. It is advisable to do the alignment of the car after the first 5000 km, since all the suspension get set.
Key Features
- ✓Windows XP / 2014 professional software support
- ✓Pure CCD image processing and image recognition measurement

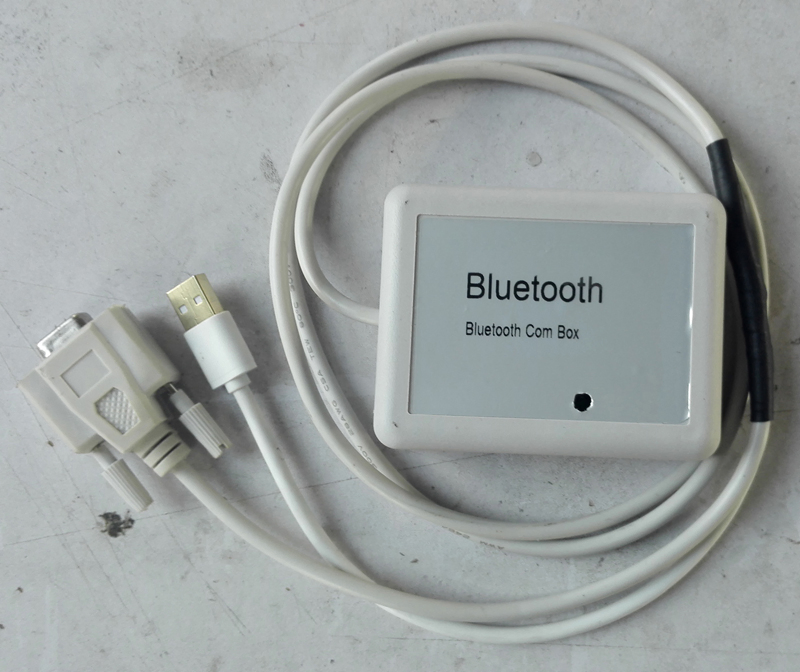

- ✓Bluetooth 2.4G wireless transmission technology
- ✓100% level electronic, on-line monitoring sensors with remote control operation
- ✓Full three-dimensional animation auxiliary for easy operation
- ✓Multi-language selection: Chinese, English, Russian, Spanish
- ✓Strong resistance to light interference for various environments
- ✓Support for Audi A6, Passat B5 toe arc adjustment
- ✓Field reset calibration data; sensors are independent and interchangeable
- ✓Expanded rim diameter range from 10" to 21"
- ✓LCD display for sensor communication status and battery level
- ✓Equipped with a black box fault logging system
Technical Data
| Measurement Type |
Accuracy |
Range |
| Front and rear toe angle | ±0.01 | ±4.8° |
| Camber | ±0.01 | ±12° |
| After caster | ±0.04 | ±20° |
| Front and rear set back | ±0.04 | ±4° |
| Inner angle | ±0.04 | ±20° |
| Thrust angle | ±0.01 | ±4° |

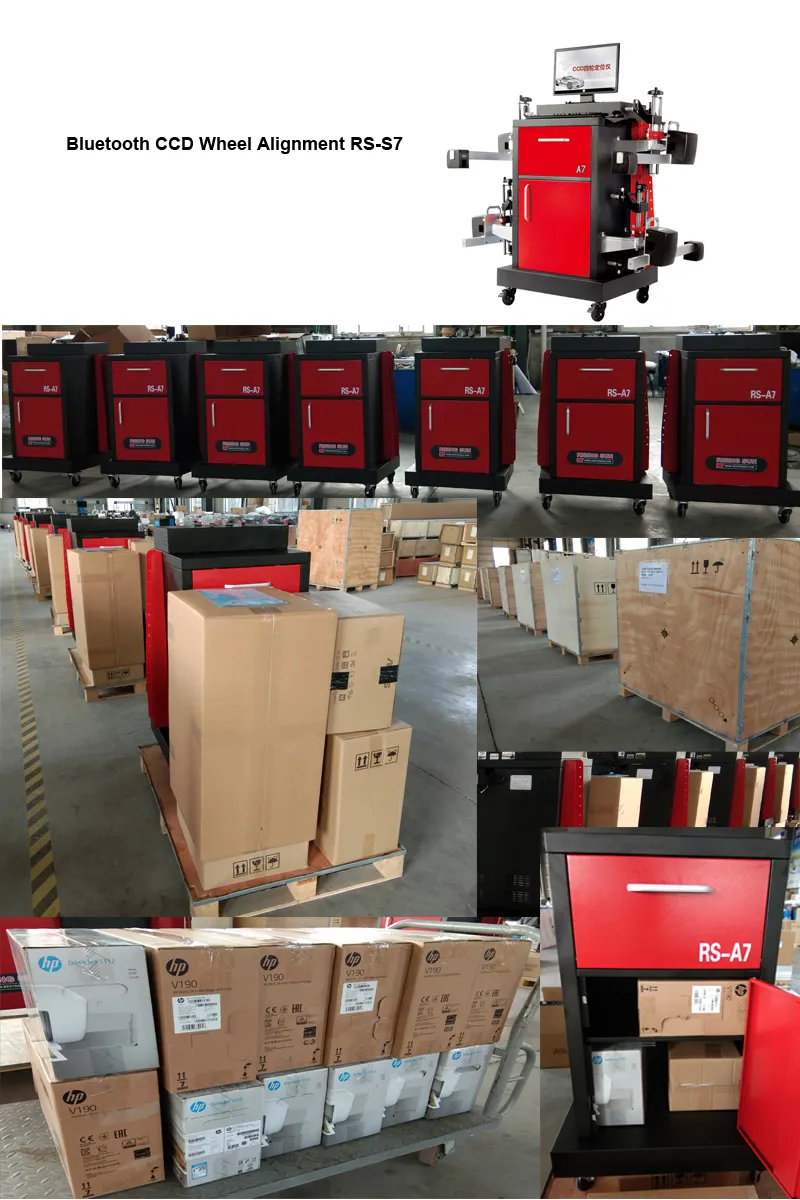

Standard Accessories & Packing

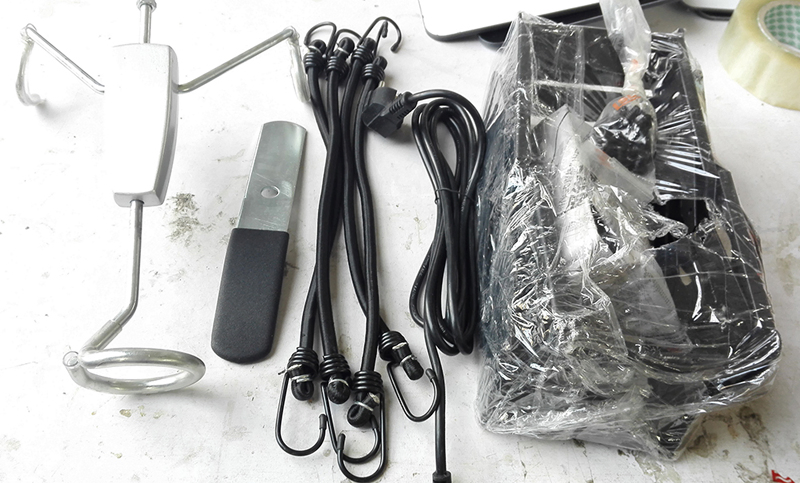

Included Parts:
- • Cabinet x 1
- • Clamp x 4
- • Turnplate x 2
- • Computer & Printer x 1 set

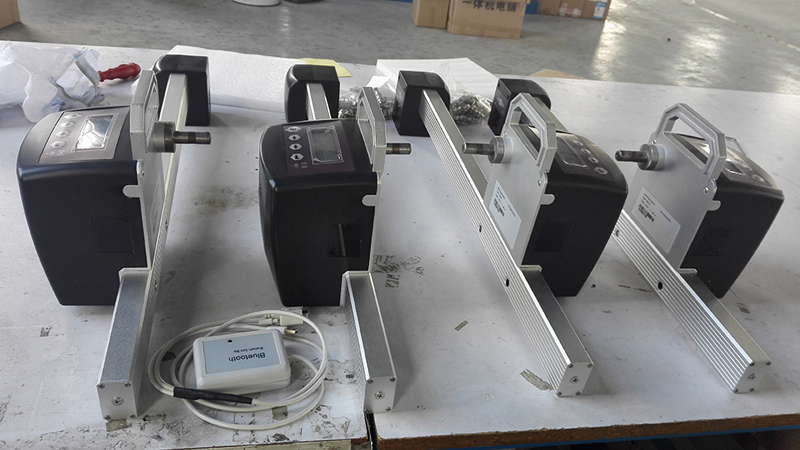

- • CCD Sensor x 4
- • Brake & Steel wheel lock x 1
- • Hangers for clamp x 4

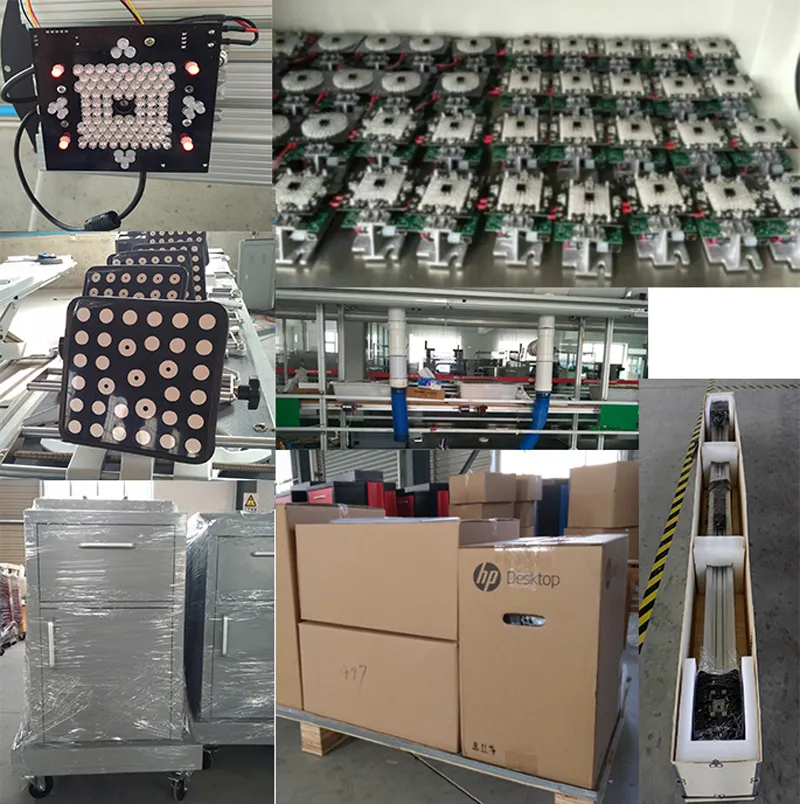

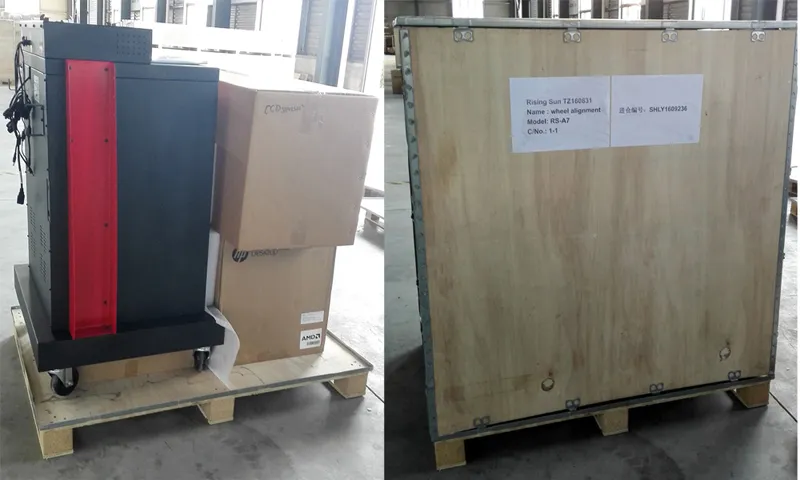

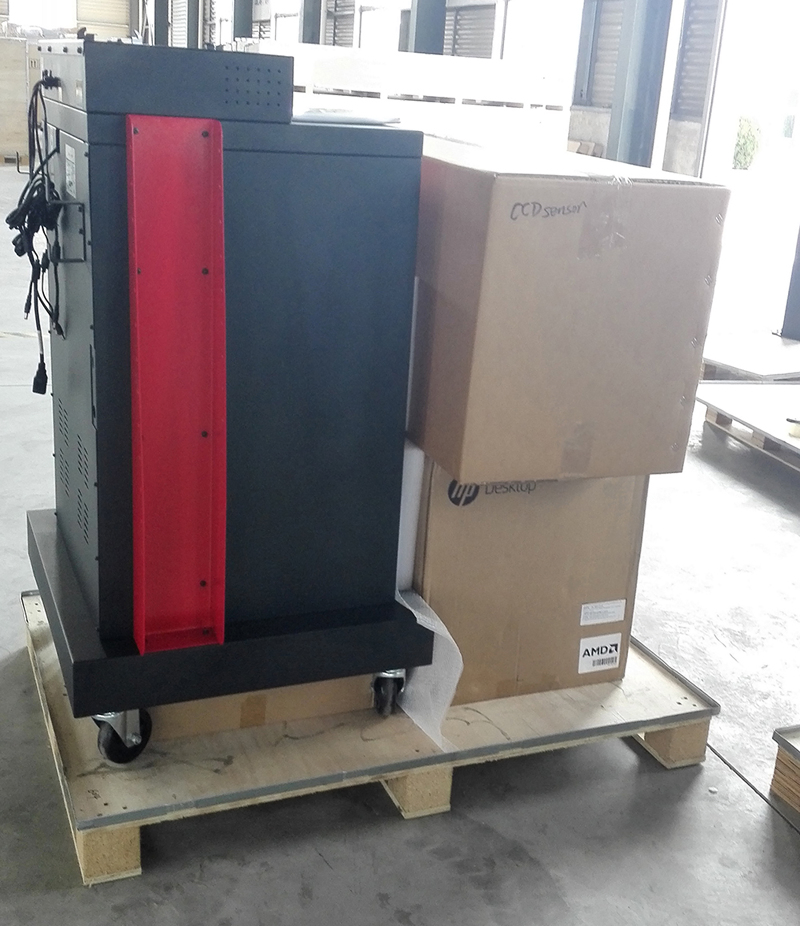

Packing Details:
Total: 2 Cartons | 180 kgs | 1.4 cbm
1. 780 x 665 x 1140 mm
2. 830 x 440 x 510 mm
Our Advantages & Services
Warranty: 12 months with free replacement parts.
Global Standards: Products meet ISO and CE requirements.
Experience: 18 years of export expertise.
Support: 7x24 online customer service.
Fast Delivery: Typically 10 days after payment.
Frequently Asked Questions
What technology does the RS-S7 use for measurement?
The system utilizes Pure CCD image processing and recognition technology combined with 2.4G wireless Bluetooth transmission for high-precision data collection.
How many vehicles are included in the alignment database?
The system includes a comprehensive database of more than 20,000 vehicle models, with support for online updates.
Is the system compatible with modern computer operating systems?
The software is professionally designed to run on Windows XP and Windows 7 platforms for stable performance.
What is the supported rim size for this alignment system?
The standard clamps support rim diameters ranging from 13 to 24 inches, with extended software capability from 10 to 21 inches.
What languages are available in the software?
The system supports 5 major languages including English, Chinese, German, Russian, and Spanish.
What is the warranty period for the wheel alignment system?
We provide a 12-month warranty. During this period, any necessary replacement parts are sent free of charge if the machine encounters technical issues.
