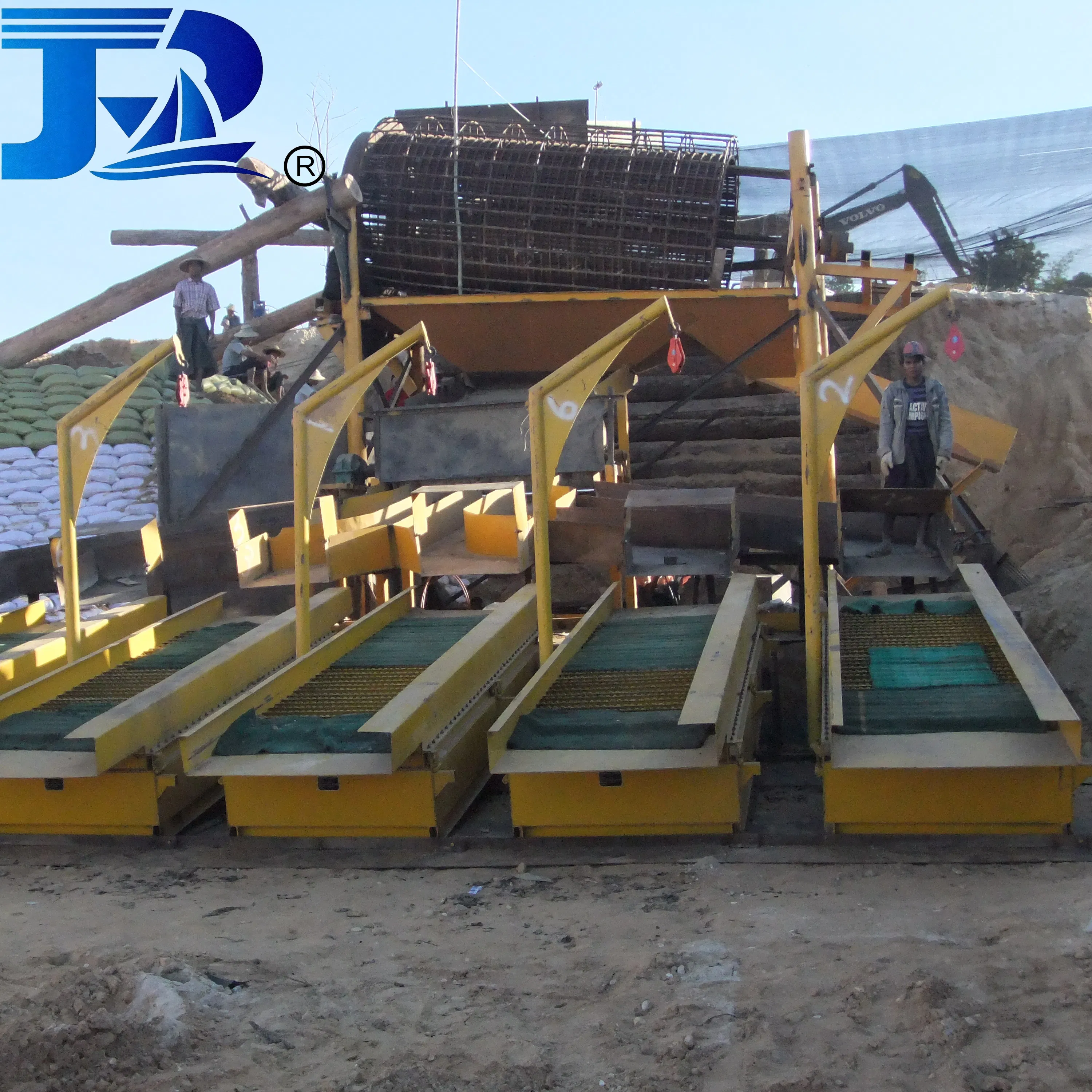

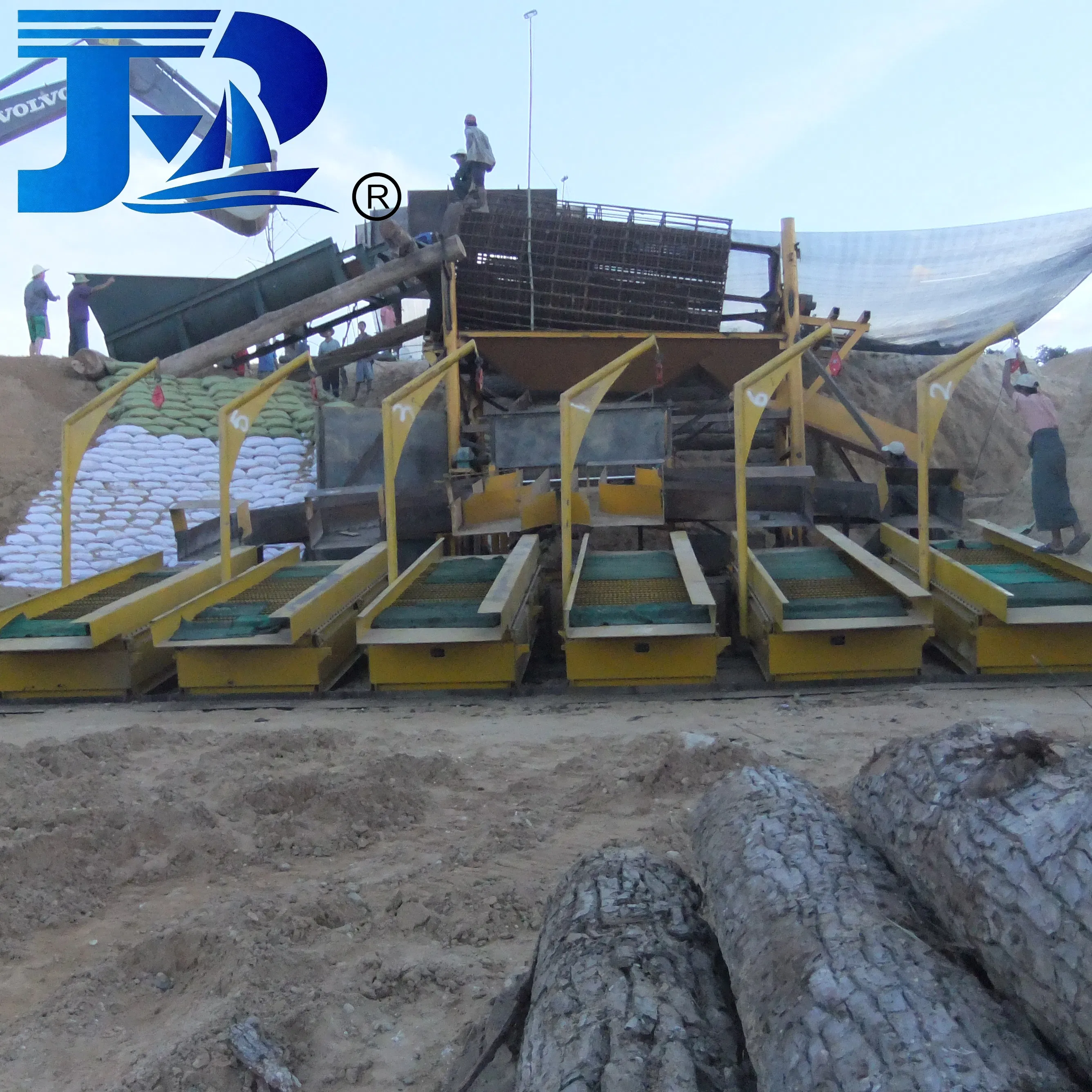

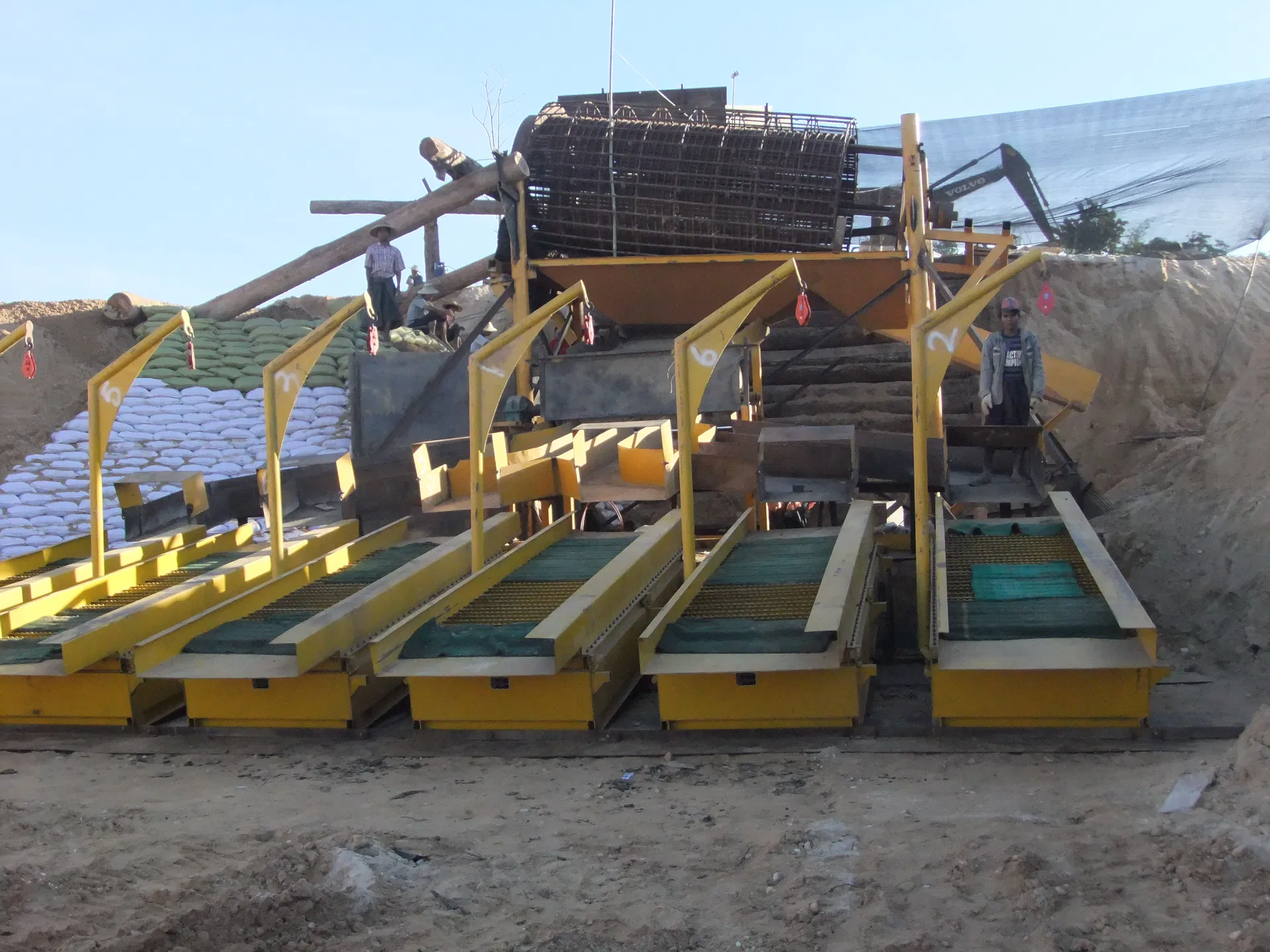

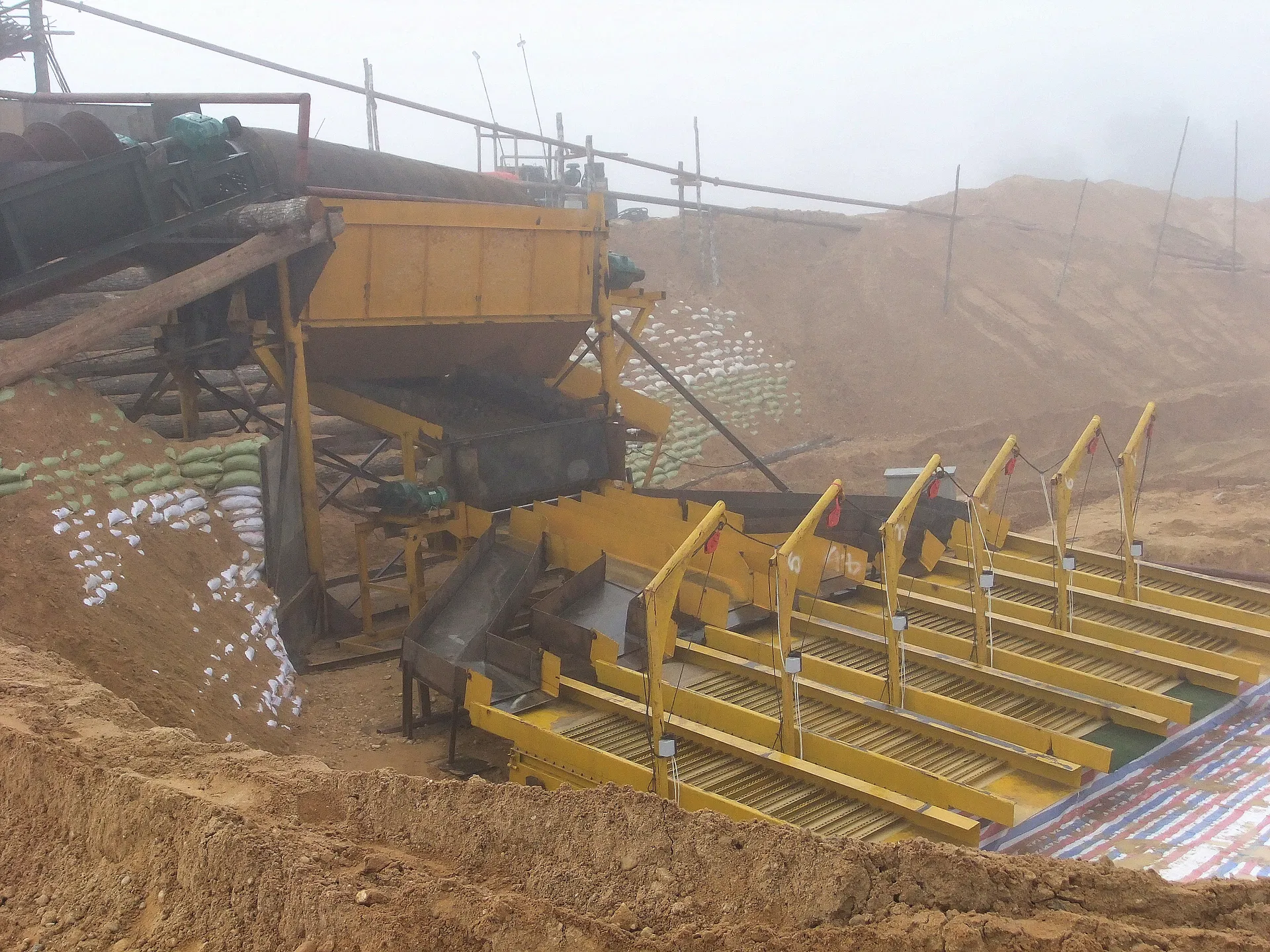

The Mobile Small-Scale Alluvial Gold Washing & Separation Plant is a cutting-edge mineral processing system designed for small-scale mining—ideal for alluvial gold deposits and remote projects. This mobile unit integrates trommel screening, mud washing, and gravity sluice separation into one platform, allowing rapid deployment to remote locations without complex assembly.
Designed for field operability, the plant streamlines gold recovery: raw ore enters the hopper, passes through the trommel screen to remove debris, then into the mud washing chamber to break down clay-bound ore, and finally into the gravity sluice separator to capture gold particles while discharging waste.
Ideal for small-scale miners, this equipment offers efficiency, portability, and ease of use—perfect for trial mining and small-scale production. Its compact, mobile design allows transport via truck or trailer to riverine, coastal, or mountainous sites inaccessible to larger machinery.
| Model Designation | Standard Specification (JR-GW50) | Optional Upgrades |
|---|---|---|
| Processing Capacity | JR-GW50 | JR-GW30 (3-30 t/h), JR-GW80 (50-80 t/h) |
| Core Components | 1. Trommel Screen: 1.2m dia, 3m length 2. Mud Washing: High-pressure spray 3. Sluice Separator: 4m riffled box 4. Feed Hopper: 0.8m³ with vibratory feeder |
1. Double-Layer Trommel 2. Centrifugal Concentrator (Recovery ≥92%) 3. Water Recycling System 4. Automatic Variable-speed Feeder |
| Power Configuration | Main: 22KW diesel engine (Weichai brand) Auxiliary: 5.5KW electric motor |
1. Dual Power System (Diesel/Electric) 2. Solar Auxiliary Power for controls |
| Durability | Frame: Q235 galvanized steel Drum: High manganese steel (5,000+ hrs) |
- Stainless Steel for saltwater - Reinforced Frame for rocky terrain |
| Mobility | - Heavy-duty rubber tires - Tow hitch - Manual parking brakes |
- Hydraulic Self-Propulsion (4WD) - Foldable Design for narrow roads |
| Dimensions & Weight | 6.5m × 2.2m × 2.8m Weight: 3.2 tons |
- Extended Sluice Version (8.0m length) - Lightweight Aluminum Frame (2.5 tons) |
Pre-assembled unit that tows directly to the site. Can be deployed within 2 hours, cutting setup time by over 90% compared to traditional fixed plants.
Achieves an 85-92% gold recovery rate for alluvial ore. The system handles fine particles mixed with mud and traps gold as small as 50 mesh.
The 22KW diesel engine is highly fuel-efficient (4-6 L/h). Designed for single-operator management to minimize labor costs.
Options available for clay-heavy ore (clay scrubbers), fine-gold deposits (centrifugal concentrators), and water-scarce areas (recycling systems).
A: The standard JR-GW50 model processes 50 tons per hour. We also offer the JR-GW30 (3-30 t/h) and JR-GW80 (50-80 t/h) to suit different mining scales.
A: Independent testing shows a recovery rate of 85-92% for alluvial gold, significantly higher than traditional manual sluice systems.
A: Yes, the integrated mud washing chamber is designed to break down clay. For extremely heavy clay, we can add an optional clay scrubber with rotating paddles.
A: The system is designed for efficiency; a single operator can manage the feeding, monitoring, and tailings disposal.
A: Absolutely. It features heavy-duty rubber tires and a tow hitch. We also offer a 4WD hydraulic self-propulsion upgrade for challenging terrain.
A: Key components are made from wear-resistant high manganese steel with a service life of over 5,000 hours. Routine daily maintenance takes less than 30 minutes.
