Jinan Wind Solar Hybrid Power System with Grid-Tie Capability

Customization:	Available
After-sales Service:	Yes
Warranty:	2 Years

Send Inquiry

Product Description

Basic Info

Model NO.

DMWT-10KW

Output Type

AC Three Phase

Number of Blade

Three Blade

Rotating Shaft

Vertical

Stress Way of Blade

Resistance

Power

＞100kW

Phase

Single-Phase

Certification

CE, ISO, RoHS

Transport Package

Wooden Case

Specification

660*1100*1300mm 220kg

HS Code

8504403090

Production Capacity

50000/Year

Product Description

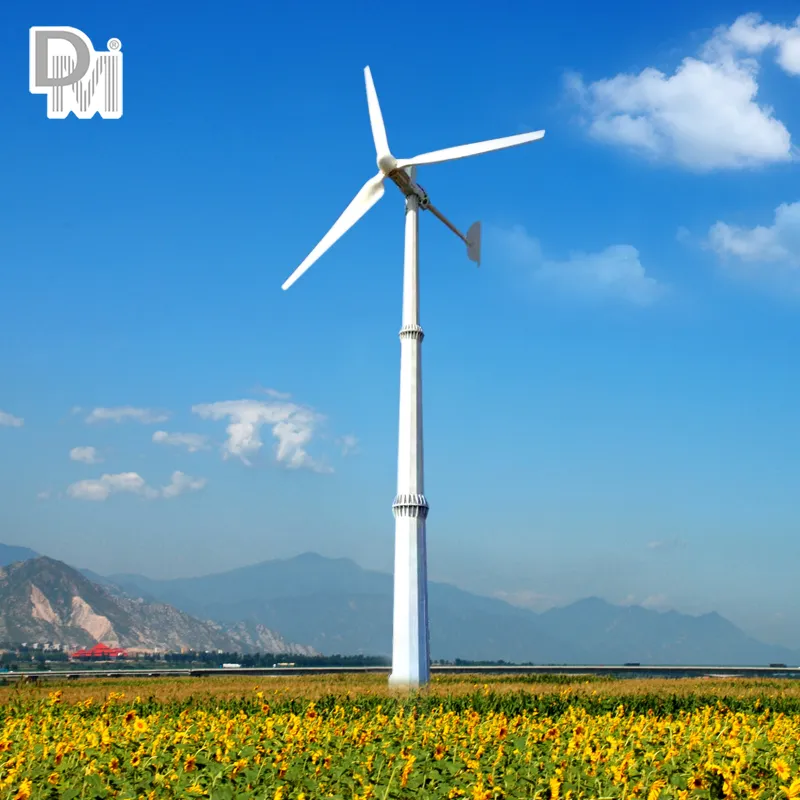

On Grid Wind Turbine System

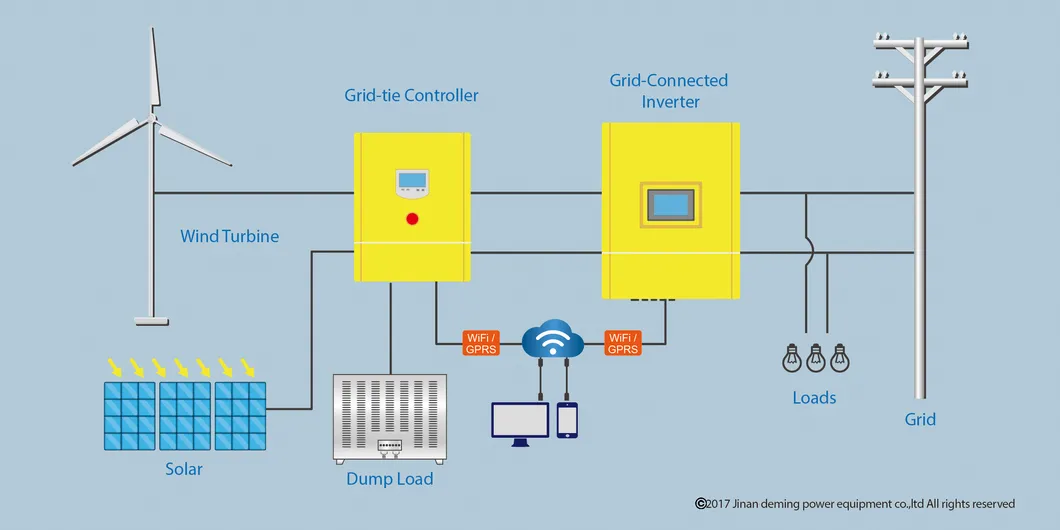

The On Grid Wind Turbine System is a reliable and efficient solution for harnessing wind energy. It consists of a wind turbine, on-grid controller, on-grid inverter, metering device, and power distribution system.

⚡Wind Turbine Features

High-quality components designed for harsh and extreme environments
Equipped with an electric brake, overcharging protection, and stable output voltage
High efficiency and low mechanical resistance energy loss
Excellent heat dissipation due to the aluminum alloy outer frame and special internal structure
Strong and durable with fully heat-treated aluminum and anti-corrosion properties
Generator designed with special materials to resist corrosion and oxidation
Reliable and long operational lifetime with a 20-year design
Patent-protected design for added exclusivity

⚙Product Details

Imported NSK Bearing: Withstands up to 7000rpm for a lifetime of normal operation
Pure Copper Enameled Wire: Resistant to high temperatures, ensuring power generation
NdFeB Magnet: N35SH model with resistance to 150°C lifetime demagnetization
Pure Copper Electric Slip Ring: More than 85% copper content, no wear, and no maintenance
Convenient Flange Design: Easy maintenance and installation

📊Inverter Performance Characteristics

Main circuit uses DSP chip, German Infineon IGBT module, and Japanese Mitsubishi movement
SPWM pulse width modulation technology for pure sine wave output
Automatic synchronous tracking with the grid, power factor close to 1
Wind turbine input maximum power tracking technology (MPPT)

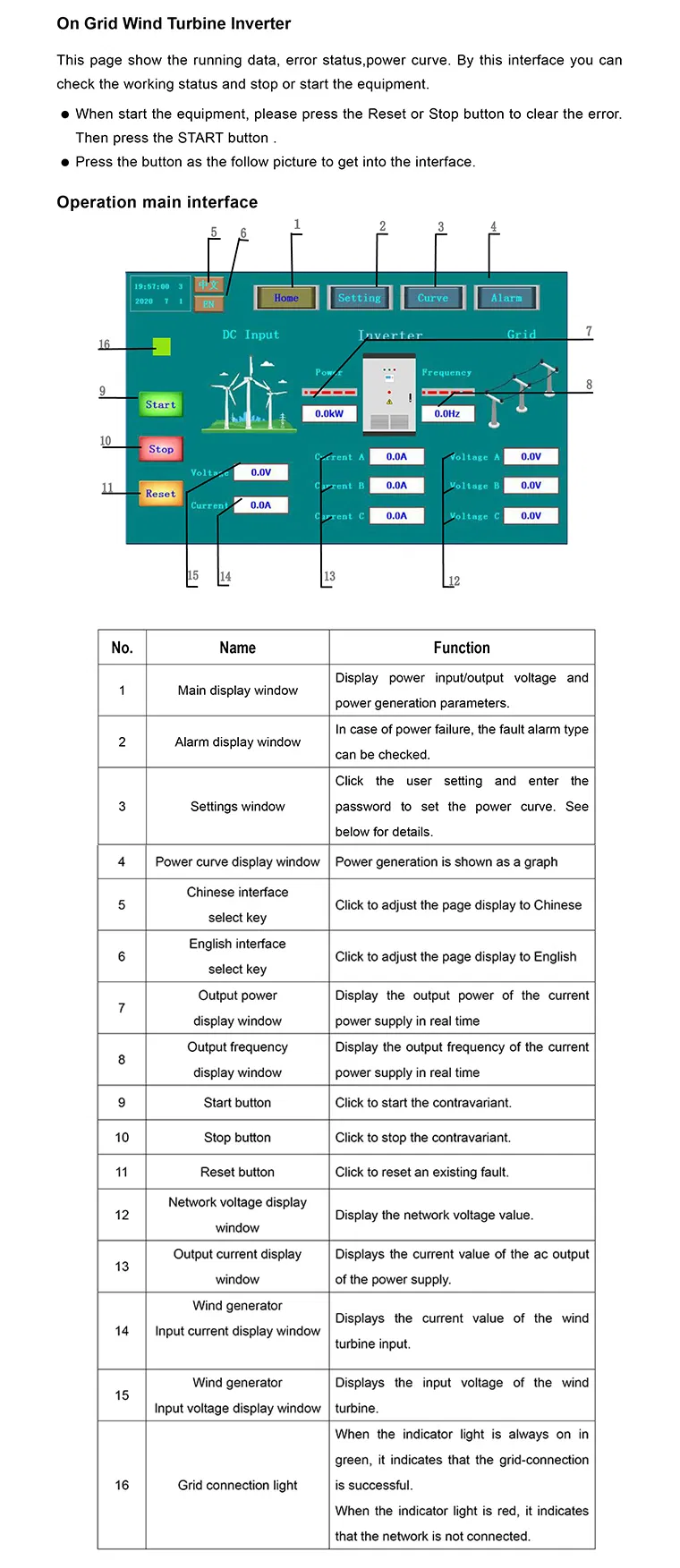

7-inch color touch screen display for easy system operation
Wide input DC voltage range to adapt to different occasions
Frequency disturbance detection technology for anti-island control
Supports RS485, WiFi, GPRS, Ethernet for real-time monitoring

Experience the benefits of the On Grid Wind Turbine System. Harness wind energy efficiently and contribute to a sustainable future.

📷

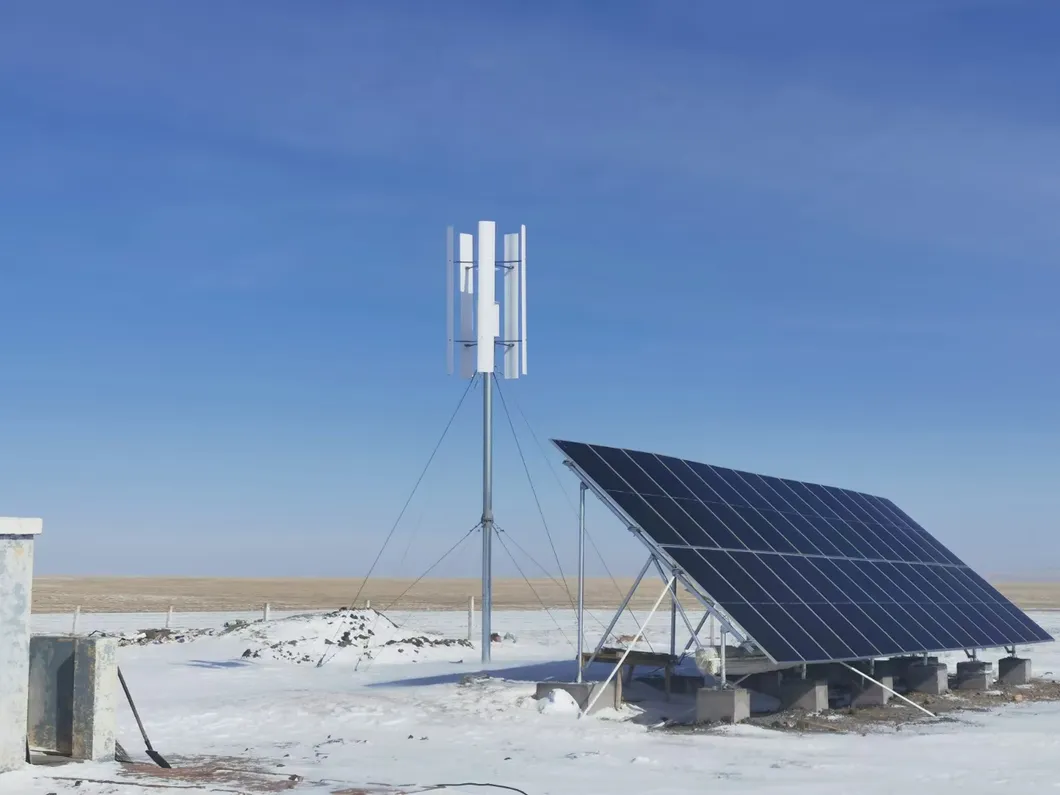

Detailed Photos

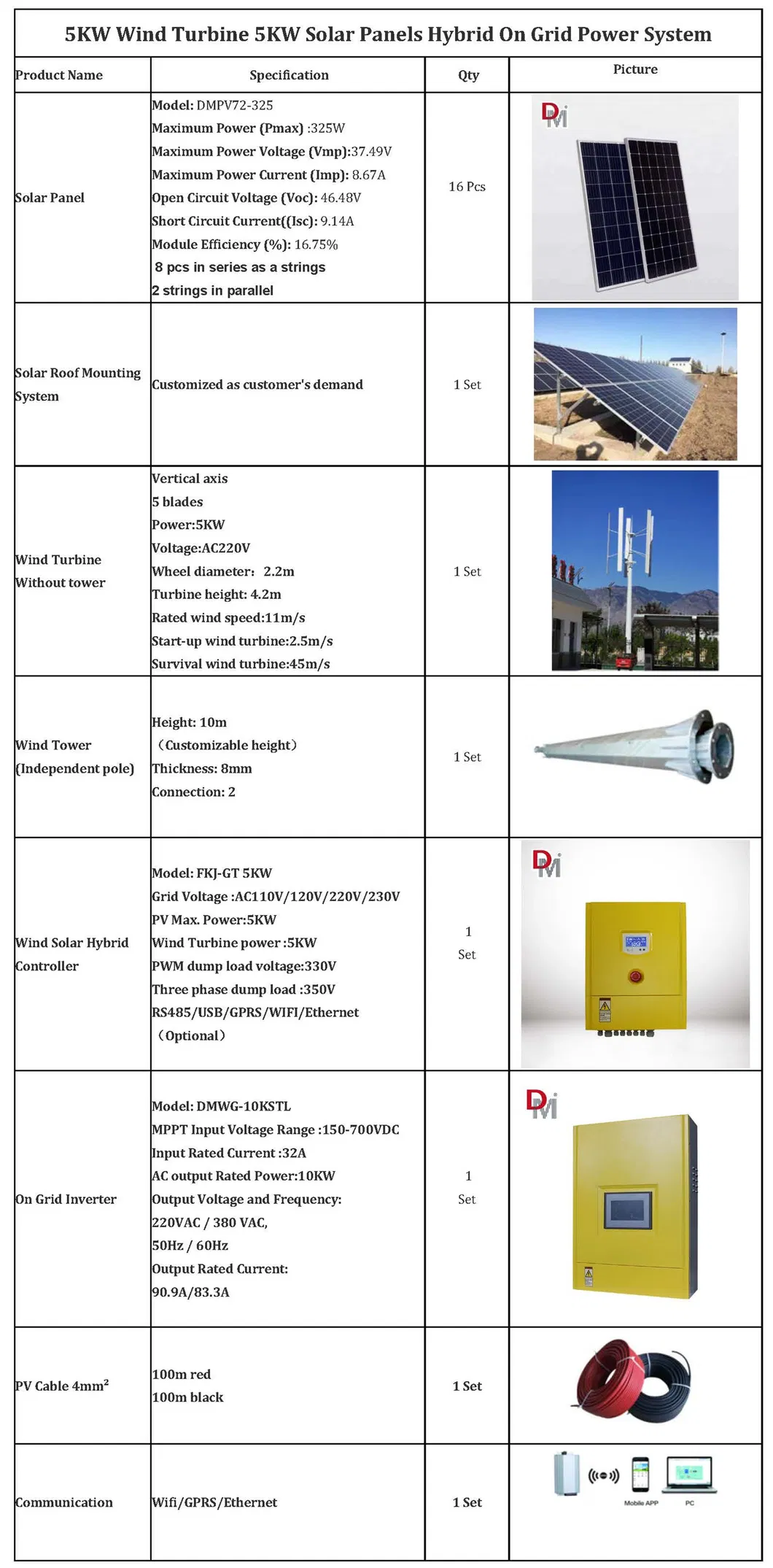

Product Parameters

5KW Wind Turbine Technical Parameter
Wind turbine model	DM3.2-5.0KW
Rated power(KW)	5KW
Max power(KW)	6KW
Rated speed(r/min)	380r/min
Rated voltage(Vdc)	220Vac
Start-up wind speed(m/s)	2m/s
Rated wind speed(m/s)	9m/s
Generator style	3 phases PM generator
Material of blades	Reinforced fire glass steel

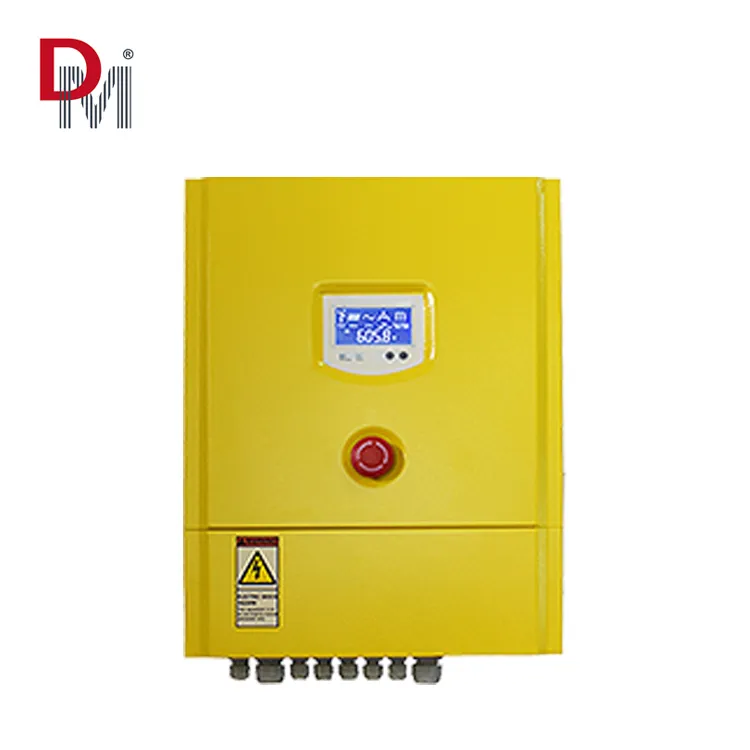

5KW On Grid Wind Turbine Controller
Input voltage range	AC0-330V
Braking voltage (DC)	350V±1%
Automatic control function	Dump load, yaw, pitch, electromagnetic brake

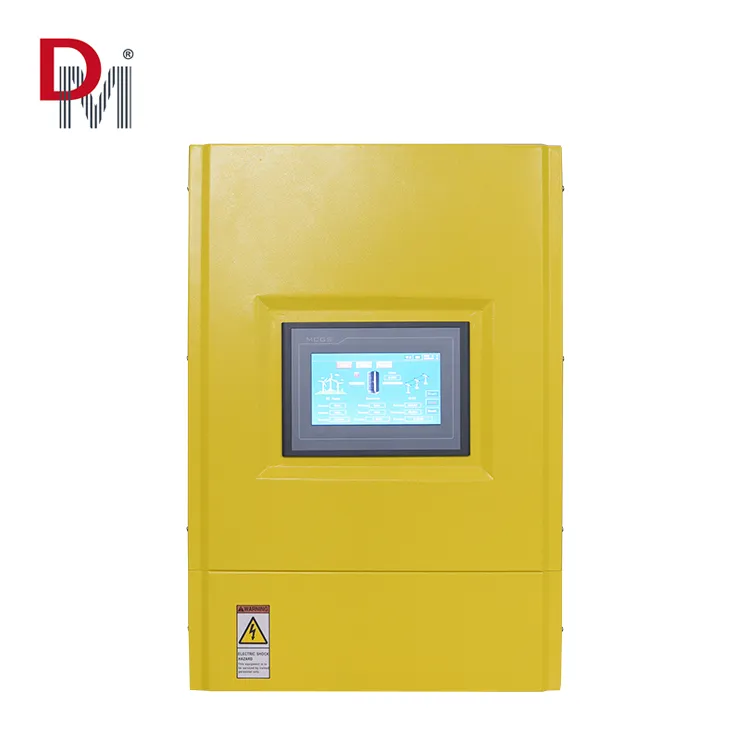

5KW On Grid Wind Turbine Inverter
Rated output power (AC)	5KW
MPPT Voltage range (DC)	100V-400V
Allowable grid voltage	110V/120V/220V/230V ±20%

Company Profile

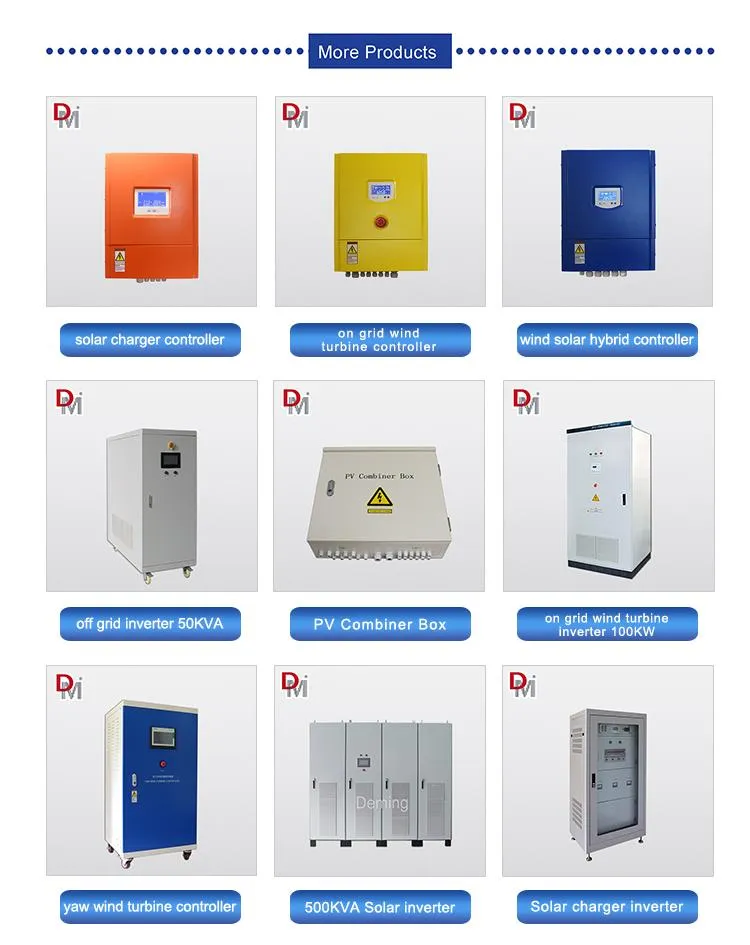

More Products

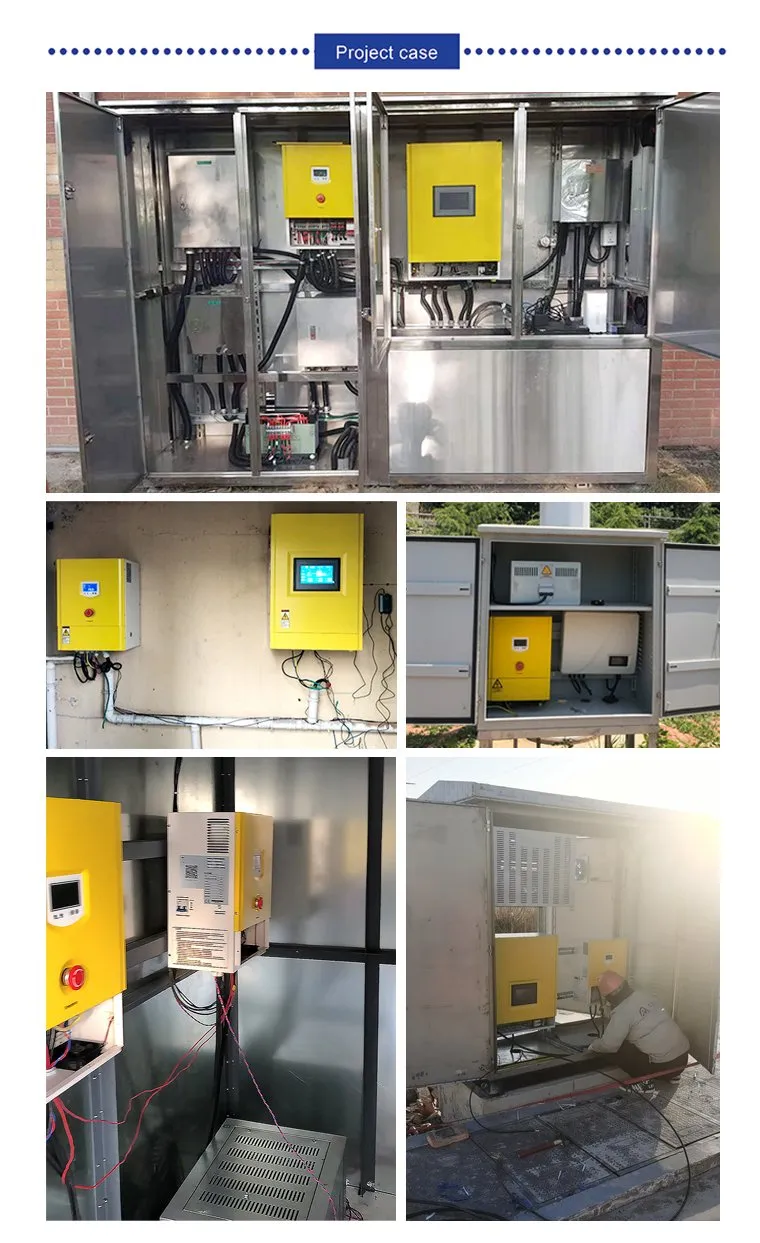

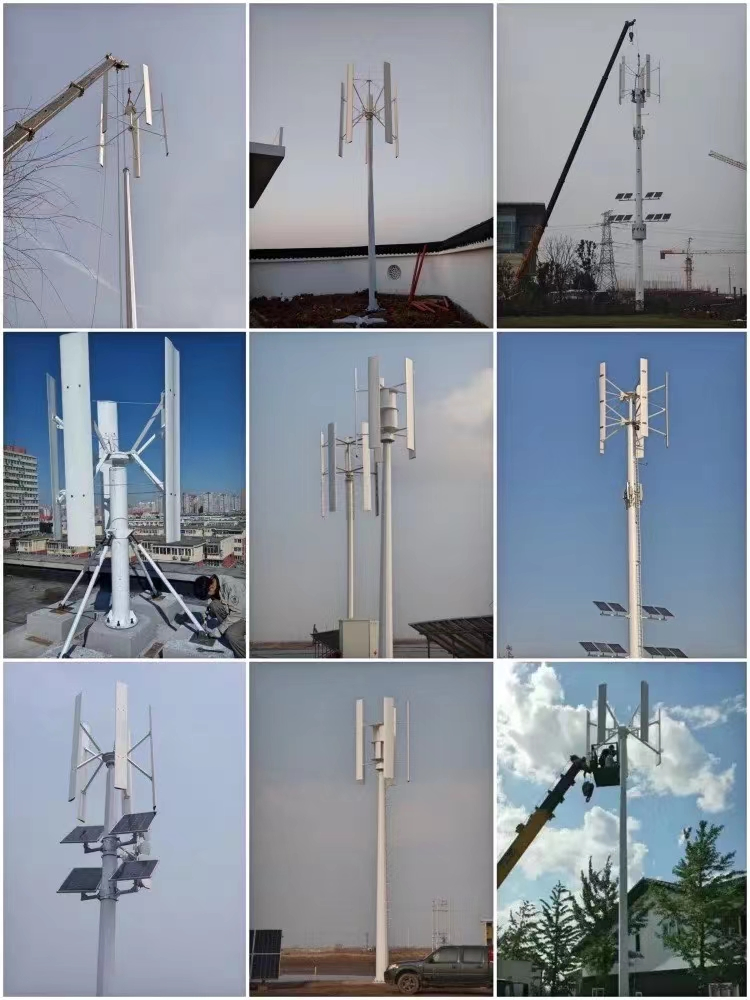

Case Studies

Our Advantages

Frequently Asked Questions

What are the main components of the On Grid Wind Turbine System?

The system includes a high-efficiency wind turbine, an on-grid controller, an on-grid inverter, a metering device, and a power distribution system.

How does the system handle high wind speeds or overcharging?

The wind turbine is equipped with an electronic brake and overcharging protection to ensure stable output voltage and safety during extreme weather.

What is the expected operational lifetime of the turbine?

The system is designed with high-quality materials, such as NSK bearings and anti-corrosion components, to provide a reliable 20-year operational lifetime.

Does the inverter support remote monitoring?

Yes, the on-grid inverter supports multiple communication methods including RS485, WiFi, GPRS, and Ethernet for real-time data tracking.

What is the efficiency rating of the on-grid inverter?

The inverter utilizes advanced SPWM modulation and MPPT technology, achieving a maximum efficiency of ≥98%.

Are the turbine blades durable?

Yes, the blades are made from reinforced fire glass steel, designed to withstand harsh environments while maintaining high efficiency.
