Product Description

1 Basic Information

Model NO.

JR-GOLD

Weight

>10T

Material

Carbon Steel

Certification

ISO9001, CE

Energy Saving

High Efficiency

Warranty

2 Years

Condition

New

Production Capacity

1500 sets/Year

2 Product Description

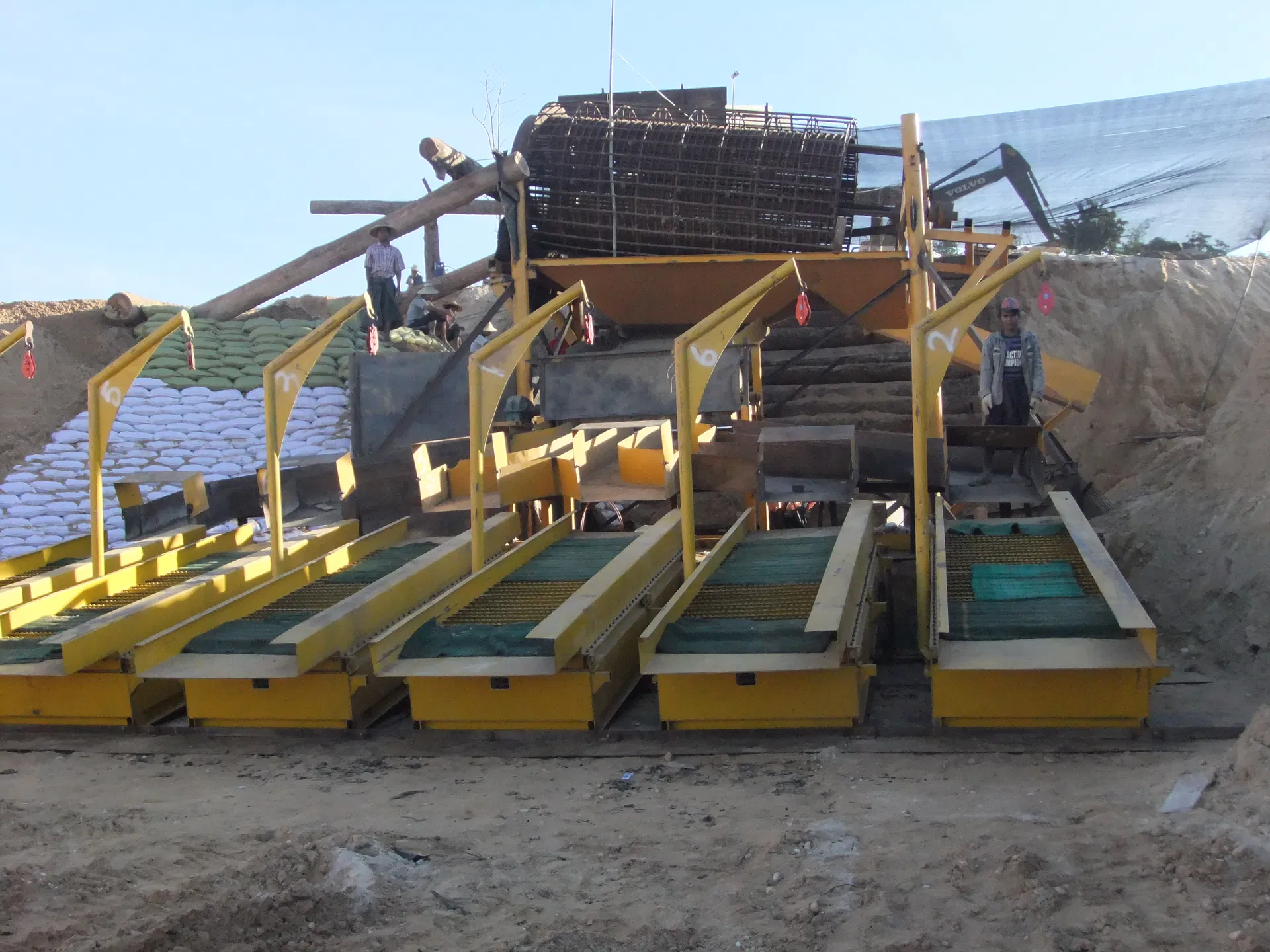

Mobile Small-Scale Alluvial Gold Washing & Separation Plant

This advanced, integrated system is tailored for small-scale mining, perfect for alluvial gold, riverbed sites, and remote projects. Unlike bulky equipment, this mobile unit merges trommel screening, efficient mud washing, and gravity sluice separation in one maneuverable platform, eliminating complex setup and enabling rapid deployment to remote locations.

Designed for field use, the system streamlines gold recovery: raw ore enters the hopper, moves through the trommel to separate debris, enters the mud washing chamber for clay breakdown, and finally reaches the gravity sluice for gold capture, efficiently processing from fine gold to nuggets while discarding tailings.

3 Technical Specifications

Model Designation	Standard Specification (JR-GW50)	Optional Upgrades
Processing Capacity	JR-GW50 (Standard)	JR-GW30 (3-30 t/h), JR-GW80 (50-80 t/h)
Core Components	1. Trommel Screen: 1.2m x 3m 2. Mud Washing: High-pressure spray 3. Gravity Sluice: 4m length 4. Feed Hopper: 0.8m³	1. Double-Layer Trommel 2. Centrifugal Concentrator (Recovery ≥92%) 3. Water Recycling System 4. Automatic Feeder
Power Configuration	Main: 22KW Diesel Engine Auxiliary: 5.5KW Electric Motor	1. Dual Power System (Diesel/Electric) 2. Solar Auxiliary Power
Material & Durability	Frame: Q235 Steel (Galvanized) Drum: High Manganese Steel Liner: Polyurethane	Stainless Steel Components for saltwater environments; Reinforced Frame
Mobility Features	Heavy-duty rubber tires; Tow hitch; Manual parking brakes	Hydraulic Self-Propulsion (4WD); Foldable Design
Dimensions & Weight	6.5m × 2.2m × 2.8m Operating Weight: 3.2 tons	Extended Sluice Version; Lightweight Aluminum Frame (2.5 tons)

4 Product Advantages

Unmatched Mobility

Pre-assembled for quick tow to sites. Users report production within 2 hours of arrival, reducing setup time by 90%.

High Recovery Efficiency

Achieves 85-92% recovery, capturing gold as small as 50 mesh. Outperforms manual sluices by 30-40%.

Low Operational Costs

Fuel efficient (4-6 L/h) and requires minimal labor. One operator can manage the entire system.

Extreme Durability

Wear-resistant components last 5,000+ hours. Hot-dip galvanized steel prevents corrosion in harsh terrains.

5 Application Scenarios

• Alluvial Gold Mining: Ideal for riverbeds and floodplains where mobility along pay streaks is essential.
• Prospecting & Trial Mining: Acts as a mobile test lab for explorers to process small samples efficiently.
• Small-Scale Production: Replaces manual methods, boosting recovery rates by up to 200%.
• Tailings Reprocessing: Recovers residual gold from old mine waste, enhancing overall profitability.

Frequently Asked Questions

Q1: What is the gold recovery rate of this mobile plant?

A: The standard JR-GW50 model achieves a recovery rate of 85-92%, significantly higher than traditional manual methods.

Q2: How long does it take to set up the equipment on-site?

A: Due to its integrated mobile design, the unit can be fully operational within 2 hours of arriving at the mining site.

Q3: Can the plant handle clay-heavy ore?

A: Yes, the system includes a mud washing chamber with high-pressure sprays. For extremely heavy clay, an optional clay scrubber can be added.

Q4: Is the equipment suitable for remote, off-grid locations?

A: Absolutely. It is powered by a self-contained 22KW diesel engine, making it completely independent of the local power grid.

Q5: What is the lifespan of the wear parts?

A: The trommel drum is made of high manganese steel with a service life of over 5,000 hours, and the sluice uses abrasion-resistant polyurethane liners.

Q6: Can it be used in saltwater environments?

A: Yes, we offer optional stainless steel component upgrades specifically designed to prevent corrosion in coastal or saltwater mining areas.
