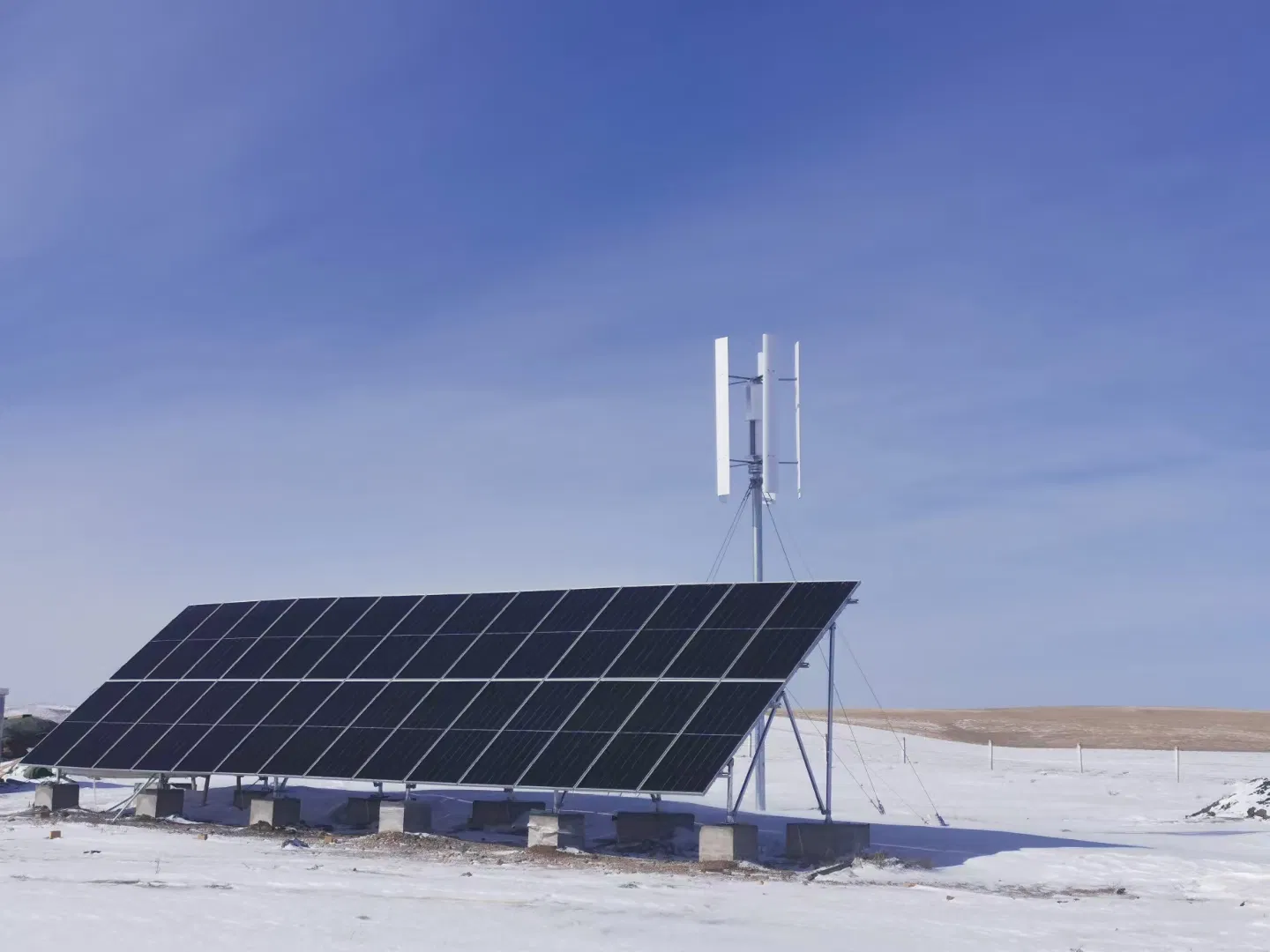

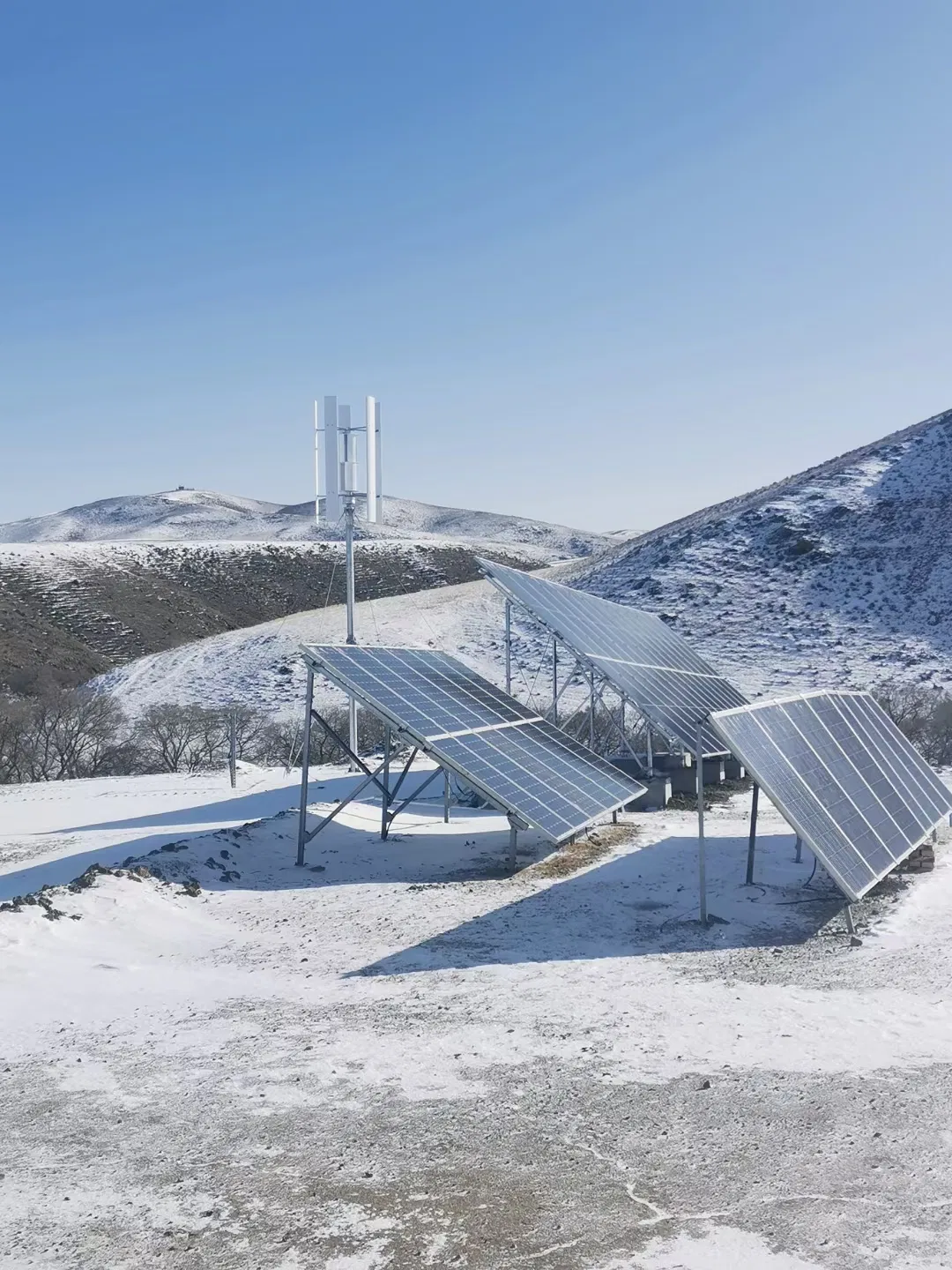

Deming 5kw Wind Generator and 5kw Solar Panels System

1 / 5

Deming 5kw Wind Generator and 5kw Solar Panels System

Customization:	Available
After-sales Service:	Yes
Warranty:	2 Years

Send Inquiry

Product Description

ℹ

Basic Information

Model NO.

DMWT-10KW

Output Type

AC Three Phase

Number of Blade

Three Blade

Rotating Shaft

Vertical

Stress Way of Blade

Resistance

Power

＞100kW

Phase

Single-Phase

Certification

CE, ISO, RoHS

Transport Package

Wooden Case

Trademark

Deming

📋

Product Description

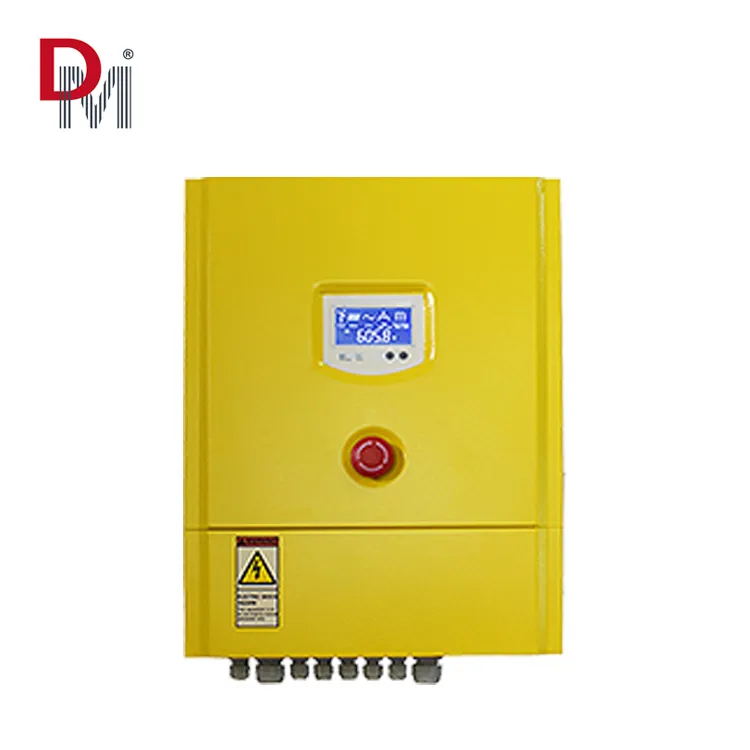

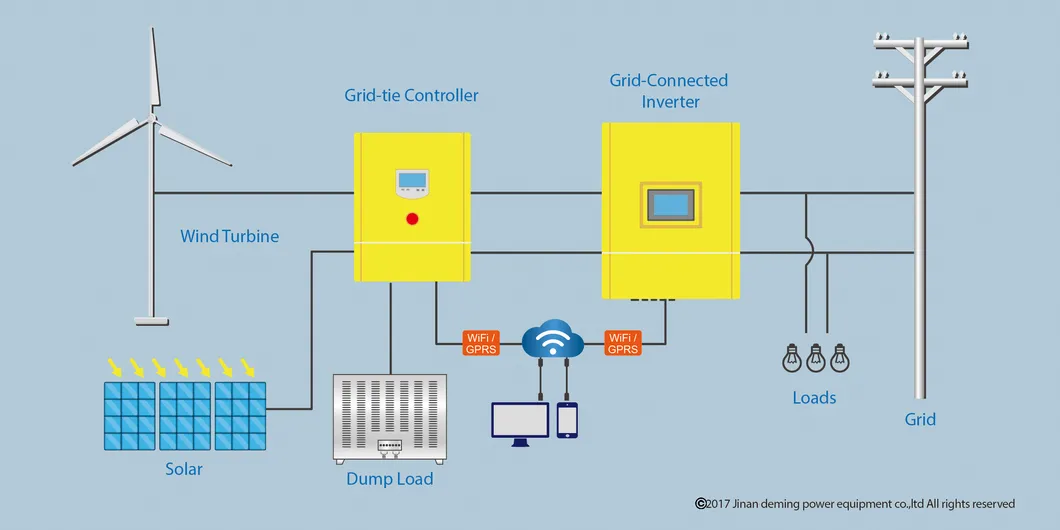

The On Grid Wind Turbine System is a reliable and efficient solution for harnessing wind energy. This system consists of a wind turbine, on grid controller, on grid inverter, metering device, and power distribution system.

Wind Turbine Features:

High standard components designed for harsh and extreme environments
Equipped with electric brake and overcharging protection
Stable output voltage with a built-in charge controller
High efficiency and low mechanical resistance energy loss
Excellent heat dissipation due to the aluminum alloy outer frame
High strength and anti-corrosion properties from heat-treated aluminum
Designed for a 20-year operational life

Key Components:

Imported NSK Bearing: Ensures normal operation at high speeds up to 7000rpm.
Pure Copper Enameled Wire: High-temperature resistant copper wire with insulating paint.
NdFeB Magnet: Model N35SH, resistant to demagnetization up to 150°C.
Pure Copper Electric Slip Ring: Over 85% copper content for maintenance-free operation.
Convenient Flange Design: Simplifies installation and maintenance.

📸

Detailed Photos

📊

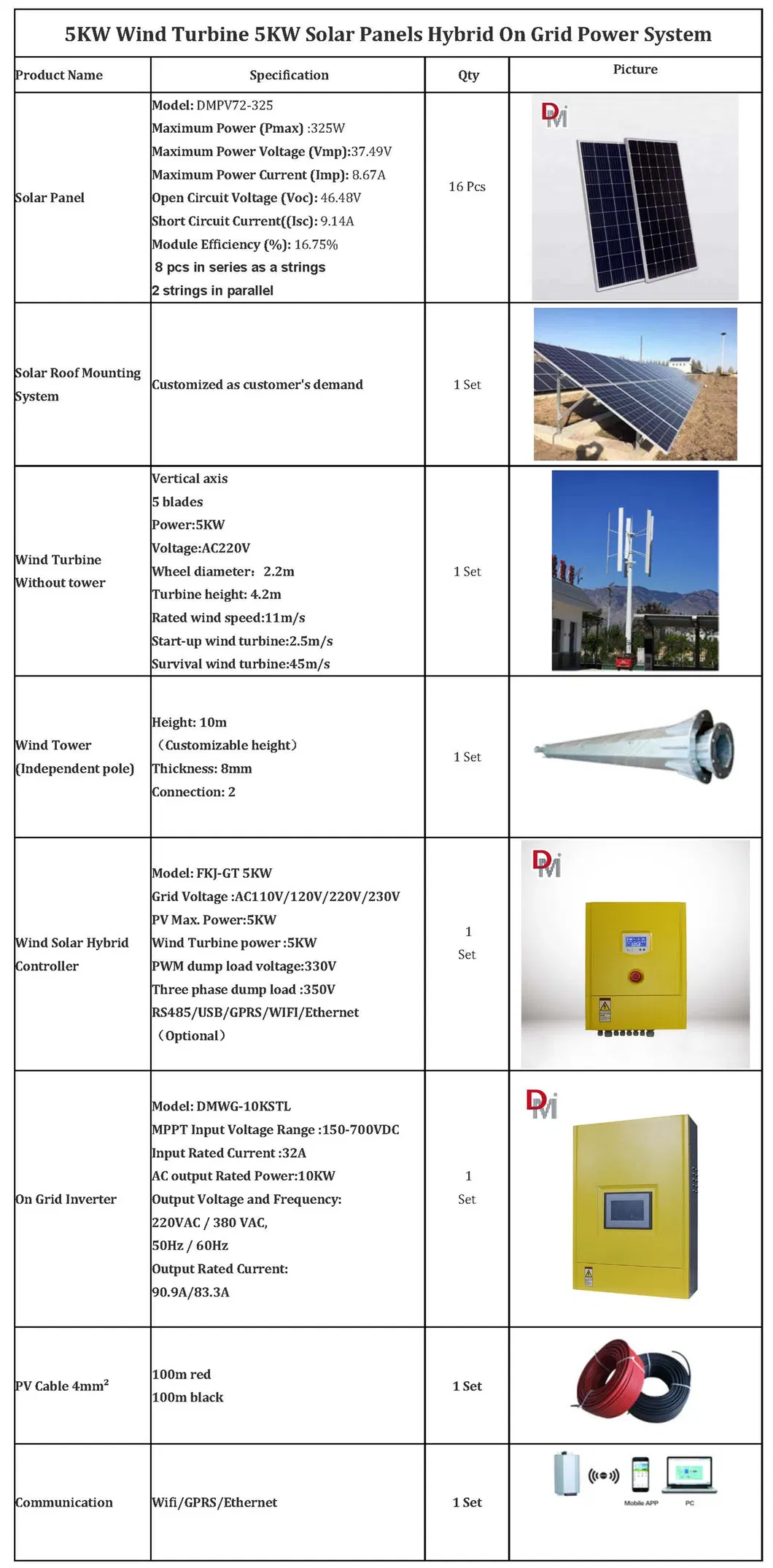

Technical Parameters

5KW Wind Turbine Technical Parameter
Wind turbine model	DM3.2-5.0KW
Rated power(KW)	5KW
Max power(KW)	6KW
Rated speed(r/min)	380r/min
Rated voltage(Vac)	220Vac
Start-up wind speed(m/s)	2m/s
Rated wind speed(m/s)	9m/s
Safe wind speed(m/s)	35m/s
Generator material	Aluminium body, copper wire, Nd-Fe-B
No. of blades	3 pieces
Material of blades	Reinforced fire glass steel

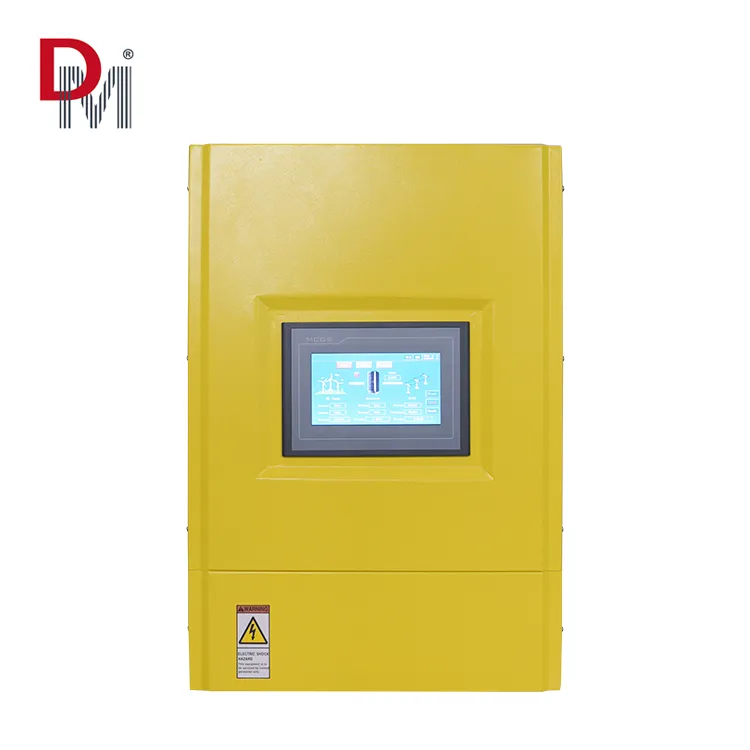

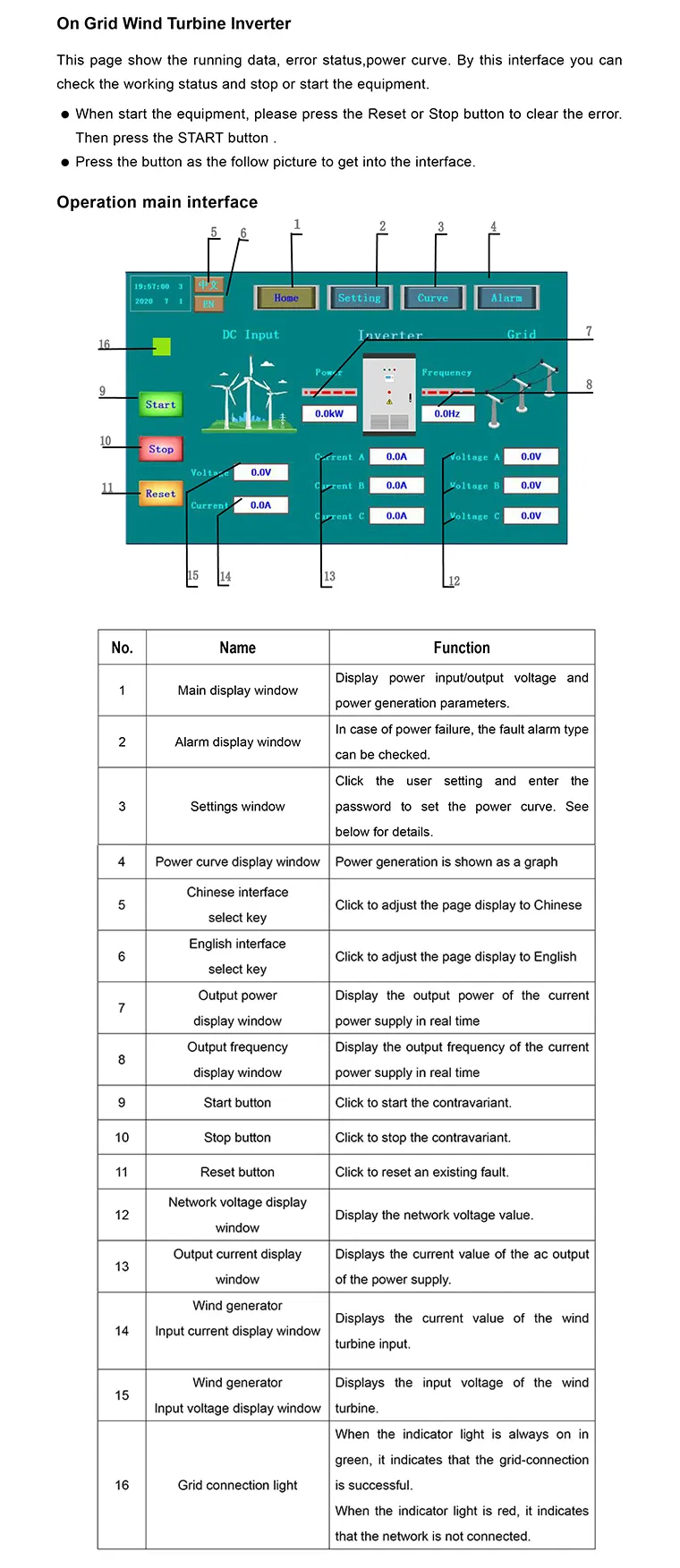

On Grid Inverter Performance
Rated output power (AC)	5KW
MPPT Voltage range (DC)	100V-400V
Max. Efficiency	≥98%
Communication Methods	RS485, WiFi, GPRS, Ethernet
Display	7-inch color touch screen

🏢

Overview & Capacity

❓

Frequently Asked Questions

What components are included in the On Grid Wind Turbine System?

The system is a complete solution consisting of a wind turbine, an on-grid controller, an on-grid inverter, a metering device, and a power distribution system.

What is the expected operational lifespan of the wind turbine?

The wind turbine is designed for a long operational life of 20 years, featuring patent-protected designs and anti-corrosion materials.

How does the system handle high wind speeds or extreme environments?

The system uses high-standard components, including an electric brake and overcharging protection. The blades are made of reinforced fire glass steel to withstand harsh conditions.

What are the benefits of the On Grid Inverter used in this system?

The inverter features MPPT technology, pure sine wave output, and a maximum efficiency of over 98%. It also includes a 7-inch touch screen for easy monitoring.

Can I monitor the system performance remotely?

Yes, the system supports multiple communication methods including RS485, WiFi, GPRS, and Ethernet, allowing for real-time monitoring via PC or mobile devices.

What type of maintenance is required for the generator?

The generator utilizes high-quality NSK bearings and a pure copper electric slip ring with minimal wear, ensuring a reliable and virtually maintenance-free operation.
