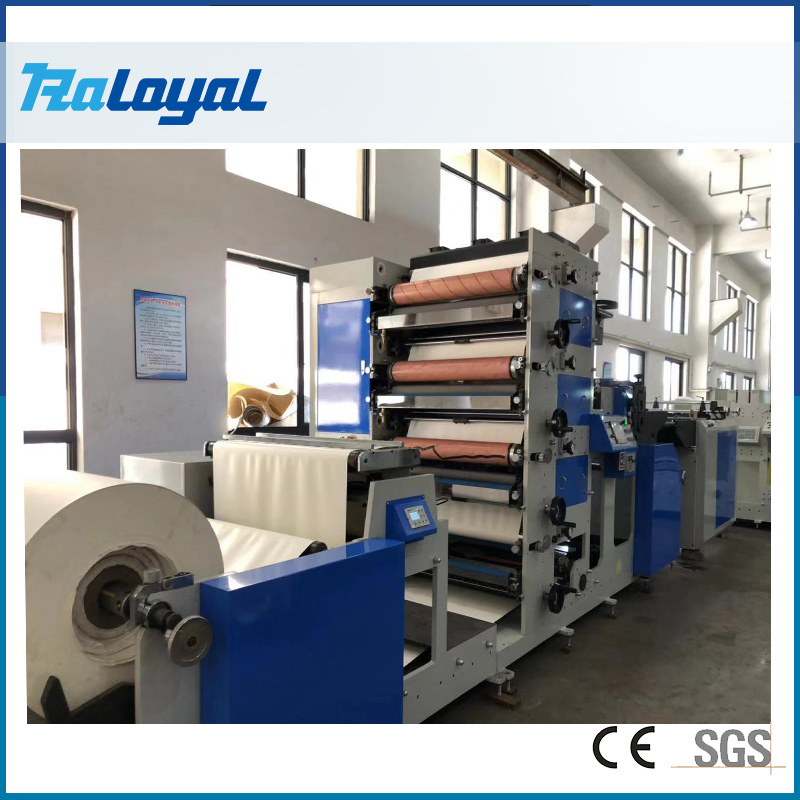

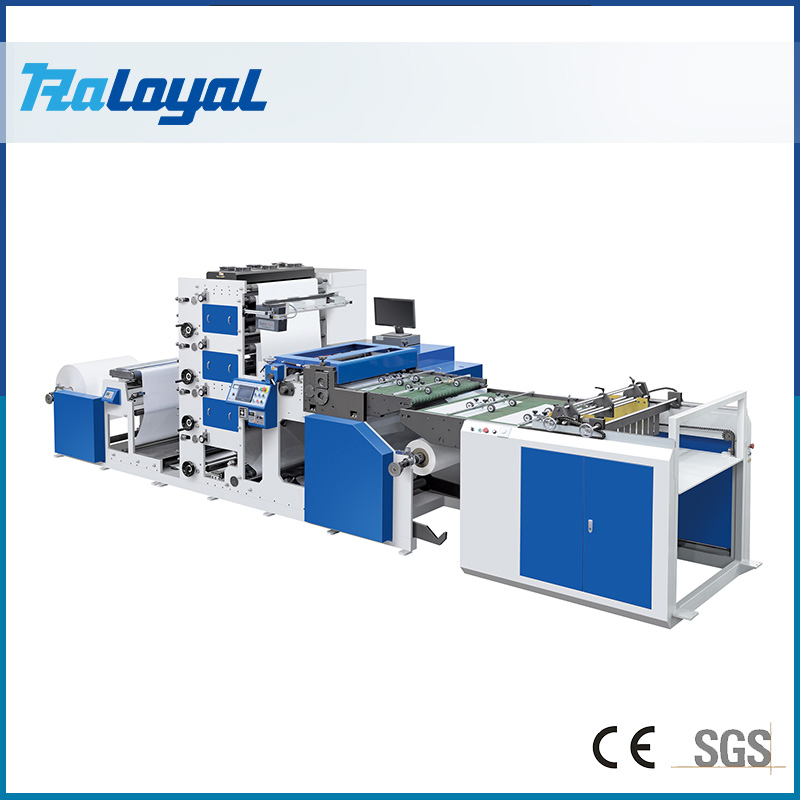

China Manufacture High-Quality Flexo Rotogravure Printing Installation UV Unit UV Curing Machine System with Independent Sheeter Cold Stamping

1 / 5

China Manufacture High-Quality Flexo Rotogravure Printing Installation UV Unit UV Curing Machine System with Independent Sheeter Cold Stamping

Customization:	Available
After-sales Service:	Loyal Offer Lifelong Technical Support
Warranty:	12 Months

Send Inquiry

Product Description

Basic Information

Model NO.

RY9

Printing Page

Double Faced

Printing Color

9 Color

Anilox Roller

Ceramic Anilox Roller

Dryer

UV & IR

Type

Ink Jet

Structure

Stacked

Printing Speed

90m/min

Web Guide

Ultrasonic Correction

Certification

CE, TUV

Technical Parameters

Model	RY9-320	RY9-450	RY9-560	RY9-850
Printing speed	65m/min	65m/min	65m/min	65m/min
Printing color	9	9	9	9
Paper max width	320mm	450mm	560mm	560mm
Max printing width	310mm	440mm	550mm	550mm
Max unwinding diameter	600mm	600mm	600mm	600mm
Printing perimeter	175-320mm	175-320mm	175-320mm	175-320mm
Precision	±0.1mm	±0.1mm	±0.1mm	±0.1mm

Product Characteristics

Suitable for printing paper, paper board, high-grade self-adhesive labels, etc. Wide printing range, no pollution of ink, high economic benefit, and fast printing speed.

Main motor adopts imported electric frequency speed regulation.
Automatic tension control used for unwinding.
Ultrasonic rectification used for web guide.
Ceramic anilox rollers for long service life, wear, and corrosion resistance.
360-degree weekly alignment adjustment for printing units.
Each printing unit equipped with an infrared drying device.
Machine equipped with 3 sets of die cutting functions.
Parking roller disengages automatically with low-speed dynamic convey to prevent dry ink.
Multi-functional: unwinding, printing, gluing, UV polishing, laminating, reverse die cutting, and rewinding.

Main Configuration

Standard Configurations	Control & Hardware	Optional Items
9× Ceramic anilox roller	Web guide system	UV dryer
9× Ink roller	AC contactor	Strobe lamp (Quality monitor)
9× Infrared dryer	Variable frequency drive	Computer quality monitor
18× Printing roller	Main motor	Lamination station
Unwinding/Rewinding tension controller	Control panel	Turn bar (Double-side)
3× Die cutting station	Magnetic powder brake/clutch	Corona treatment

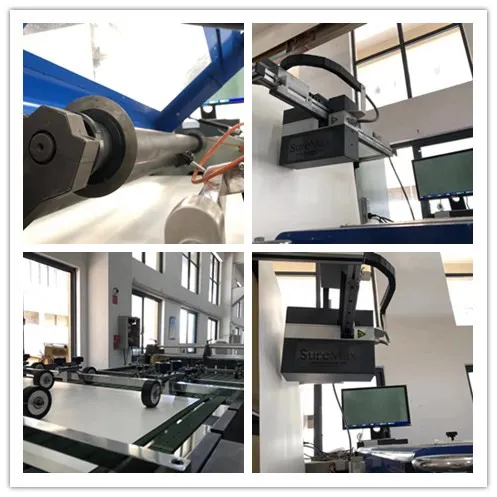

Product Details

Manufacturing Excellence

Technology: Mature and experienced technical team with continuous R&D and innovation meeting SGS standards.
Quality: Steel plate heavy machine body ensures stability at high speeds. User-friendly control and long service life.
