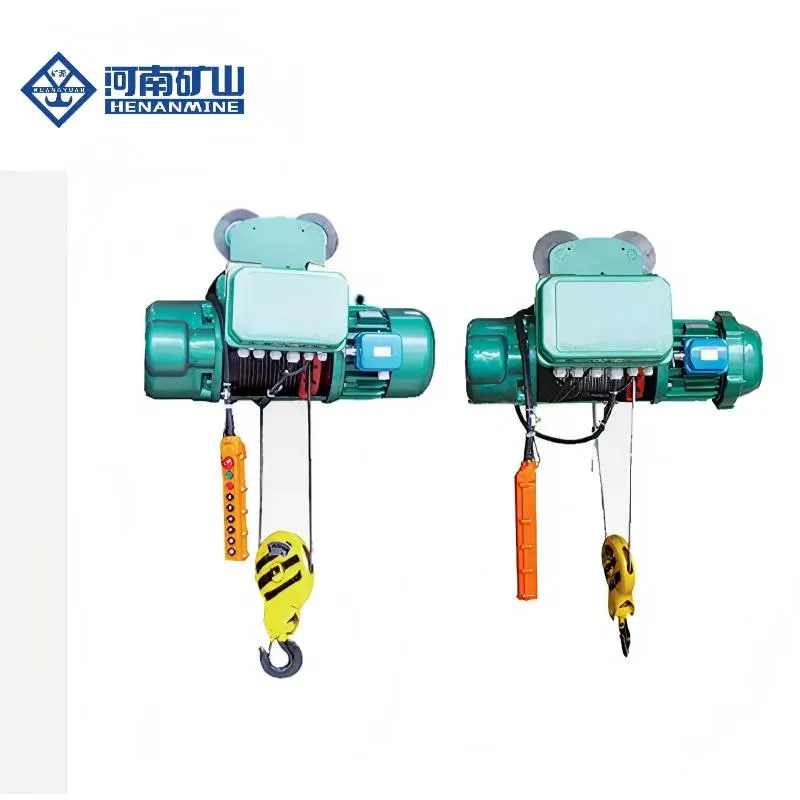

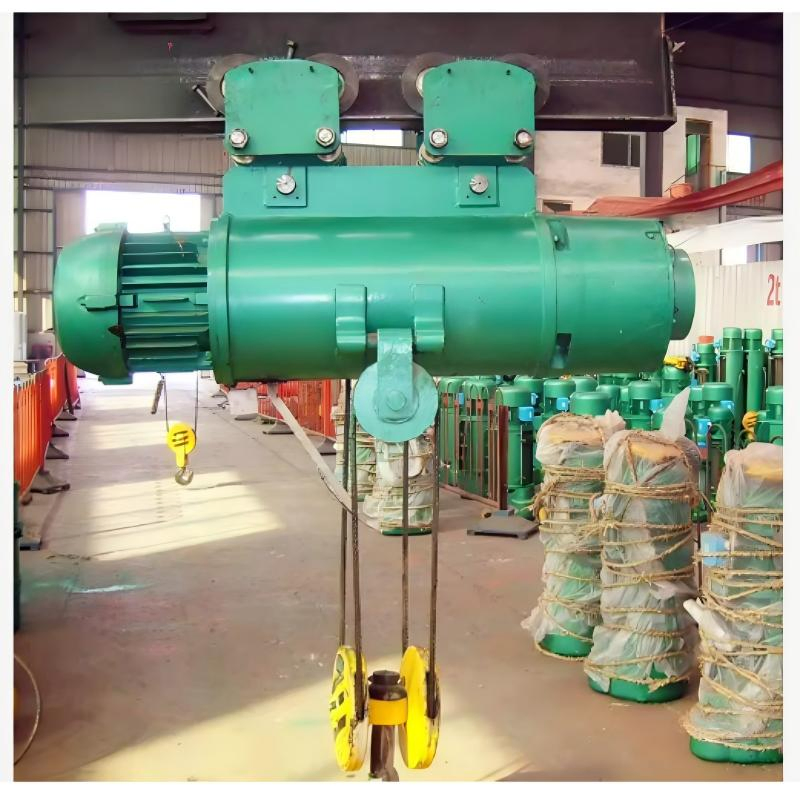

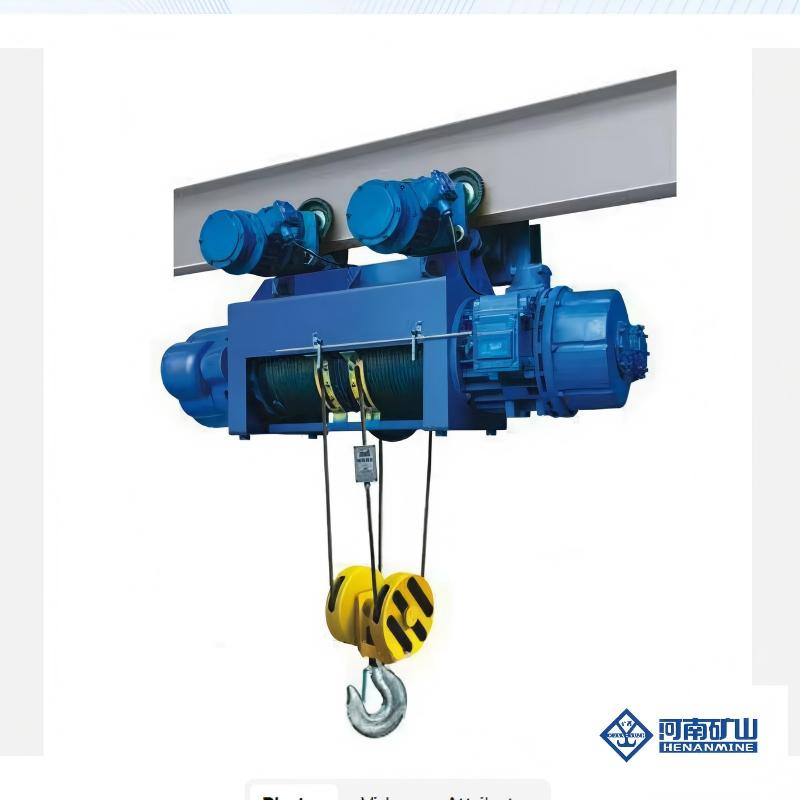

The electric hoist is a highly reliable, compact, and efficient material handling hoisting unit, designed for industrial lifting and traversing of heavy loads. Engineered in accordance with FEM, ISO, GB, and ATEX standards, our hoists combine premium components, precision manufacturing, and advanced safety systems to deliver exceptional performance in diverse working environments. Capacities range from 0.5 tons up to 80 tons, with customizable lifting heights and speeds.

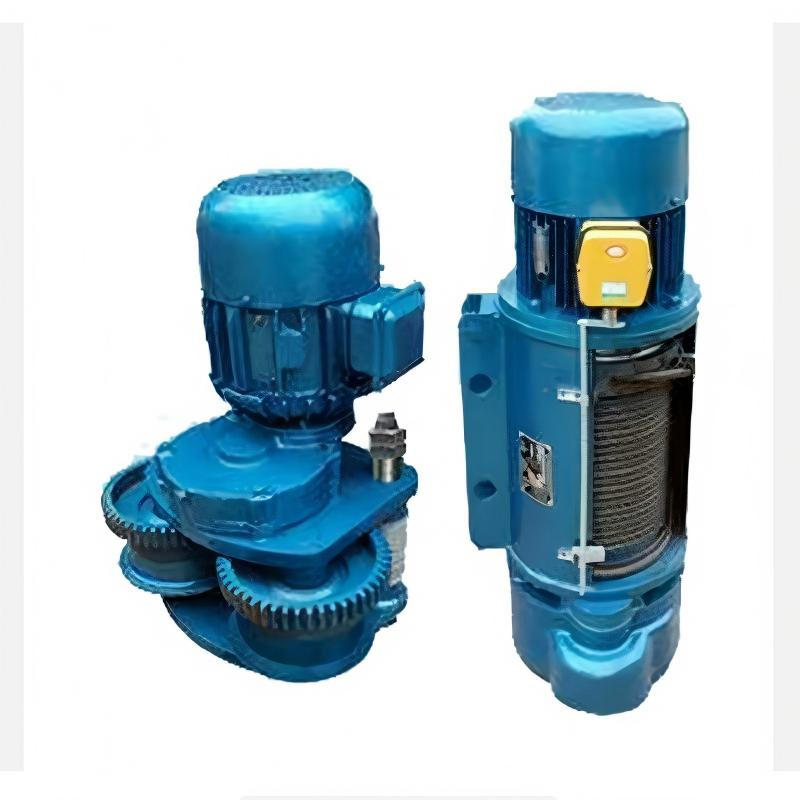

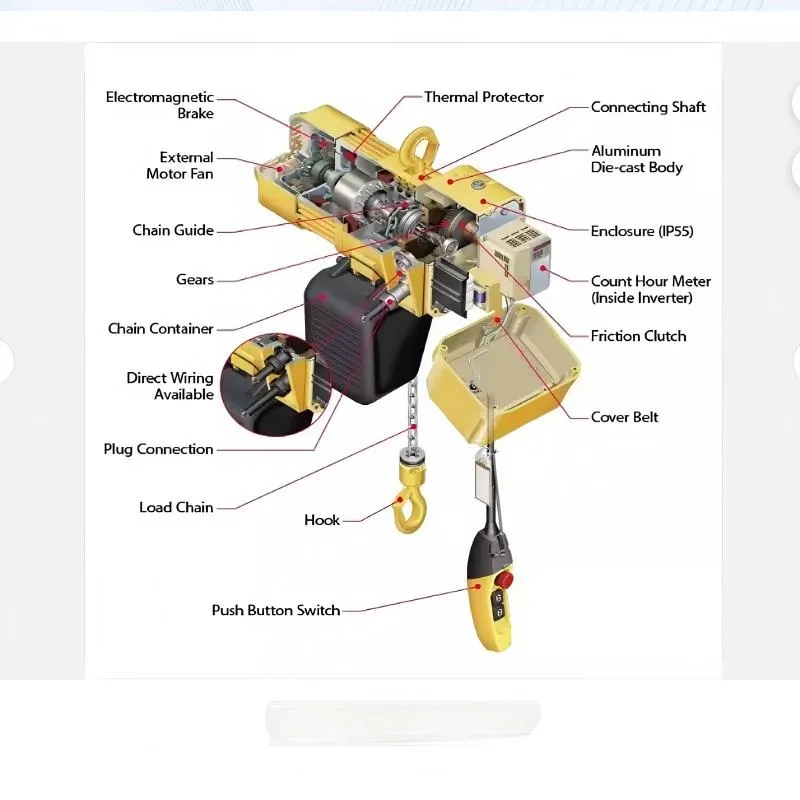

2. Key FeaturesCompact & Lightweight Structure: Integrated design including lifting motor, reducer, drum, and limit switches into a single, space-saving unit. Low headroom design maximizes vertical workspace.

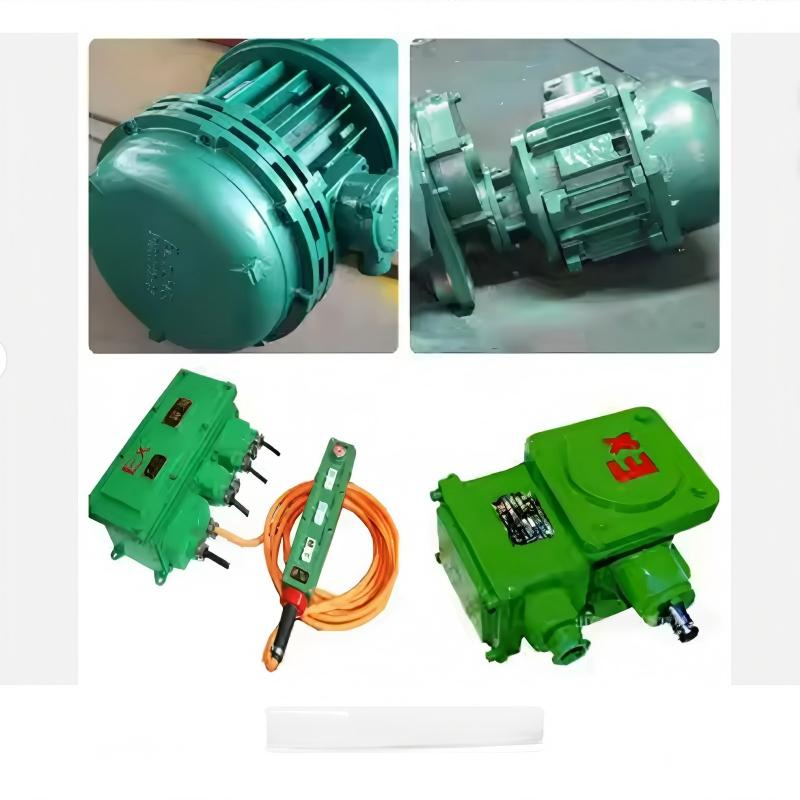

Premium Components: High-performance conical-rotor braking motor (IP54/IP55), precision gearbox with hardened helical gears, and high-tensile galvanized steel wire rope.
Advanced Safety Systems: Equipped with double limit protection, standard load limiter for overload protection, emergency stop function, and thermal monitoring.
Efficient Control: Available in single/dual speed or variable frequency control for stepless speed regulation and accurate positioning.
| Type | CD1, MD1 | |||
|---|---|---|---|---|
| Weight (ton) | 0.25-5 | 10 | 16 | 20 |
| Height (m) | 6-30 | 9-30 | 9-18 | 9-18 |
| Speed (m/min) | 8(0.8/8) | 7(0.7/7) | 3.5(0.35/35) | 4 |
| Rope Dia (mm) | 3.6-15 | 15 | 17.5 | 19.5 |
| Power Source | Three-phase AC 380V 50Hz | |||

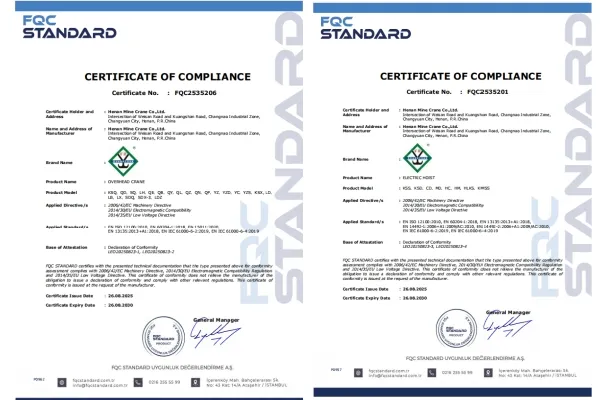

Our products are sold in over 30 regions and exported to countries including the USA, Russia, Australia, Canada, Vietnam, Malaysia, India, and Thailand. We maintain a top position in the lifting machine industry with over 120 honors and certificates.
